A machine with two functions - vertical mill or small pillar drill

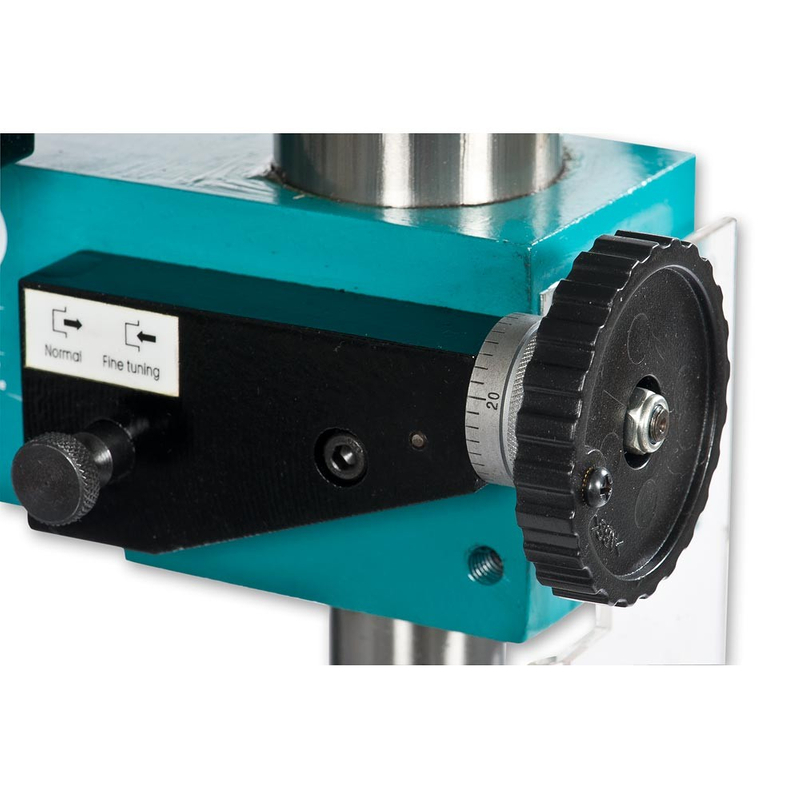

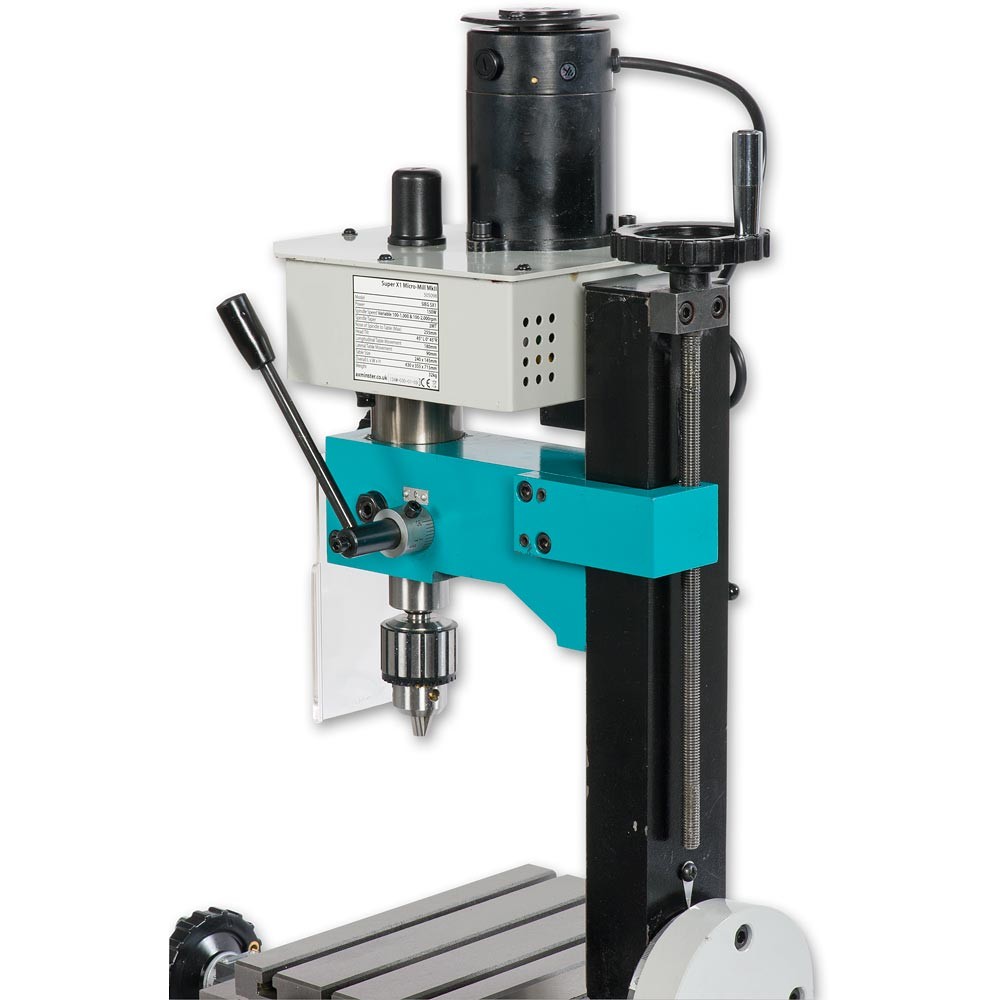

Coarse feed for drilling, fine for milling

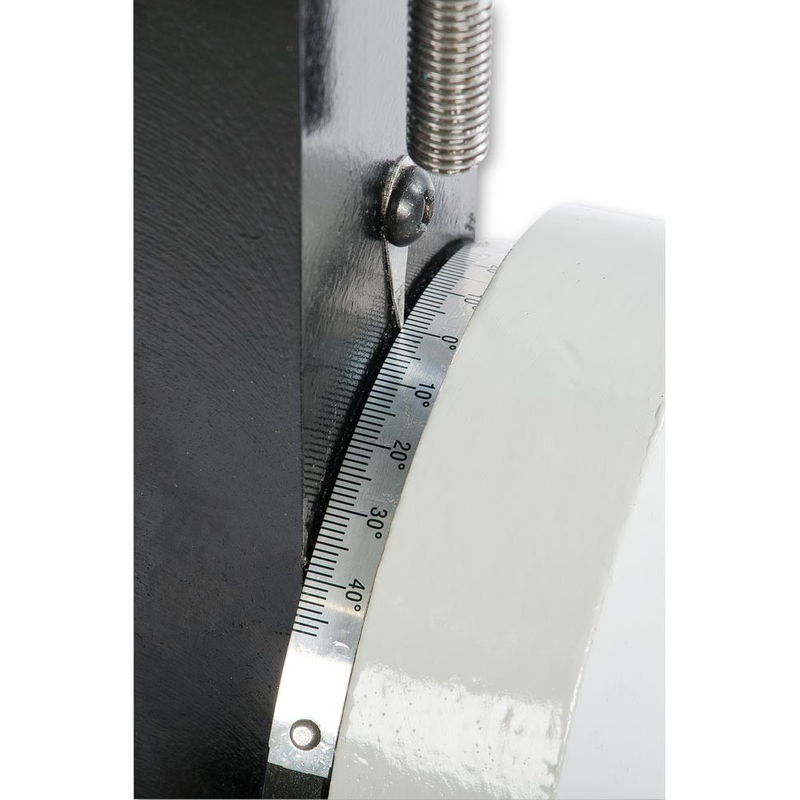

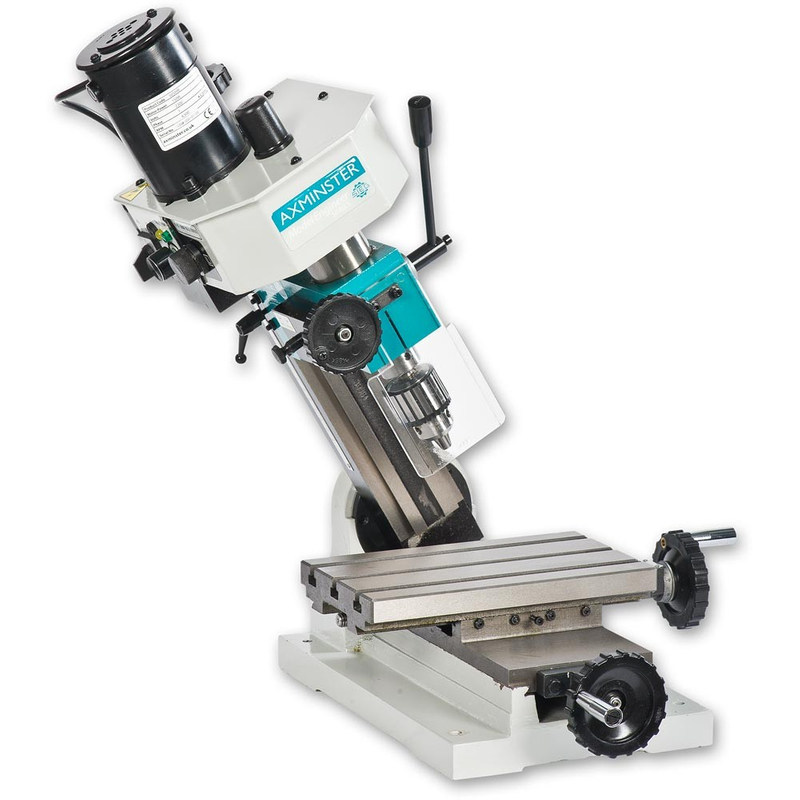

Column tilts up to 45° for angled machining

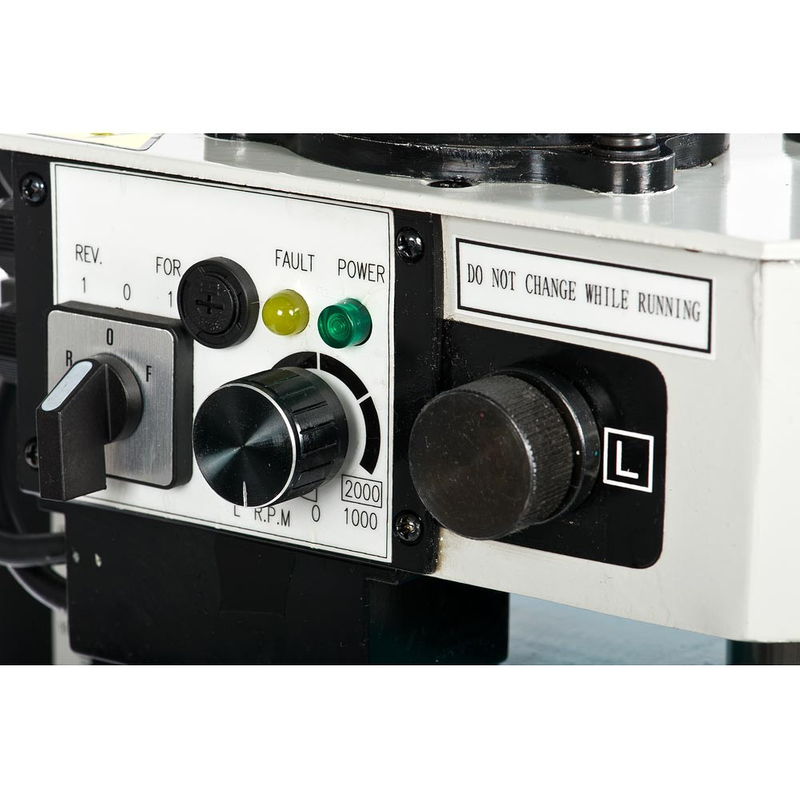

Two electronically variable control spindle speed ranges
Cast iron construction
Supplied with 10mm chuck, drawbar and service tools

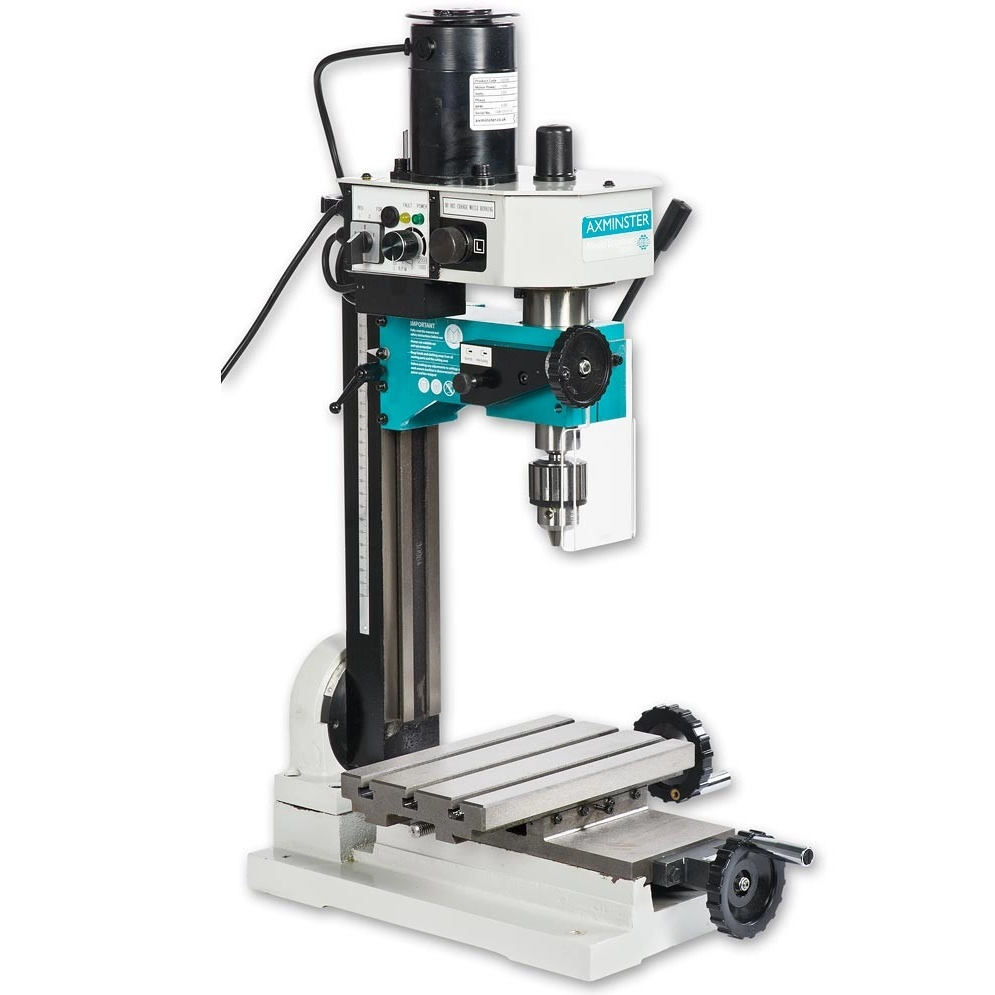

The SX1 Micro Mill is a two function machine, operating either as a vertical mill or as a small pillar drill. The work can be either clamped directly onto the table with the aid of 8mm T-nuts, studs and clamping bars, or held in a suitable machine vice and then moved under the rotating milling cutter using the traversing controls on the table. There is a choice of coarse handle feed of the quill for drilling or fine screw control for precise setting of the milling cutter depth. The column can be tilted by up to 45° either side of vertical for angled machining. The choice of two spindle speed ranges, both with electrically variable control, gives considerable freedom in cutter diameter and material type. Although small in size, this machine, with its predominantly cast iron construction, is man enough to tackle a whole range of small tasks in the home model engineer's workshop and is an excellent companion to the micro lathe. It is supplied with 10mm capacity chuck, chuck key, drawbar and service tools. Drawbar thread is M10.
Specification
Drilling Capacity
10mm
End Milling Capacity
10mm
Face Milling Capacity
16mm
Head Tilt
45°L 0° 45°R
Lateral Table Movement
90mm
Longitudinal Table Movement
180mm
Model
Axminster Model Engineer Series SX1
Nett Weight
40kg
Nose of Spindle to Table [Max]
255mm
Overall L x W x H
430 x 355 x 715mm
Power
150W
Rating
Model Engineer
Spindle Speed
Variable 100-1,000 & 100-2,000rpm
Spindle Taper
2MT
Spindle Travel
30mm
Table Size
240 x 145mm
Table Travel
180 x 90mm
Throat
140mm
T Slot Size
8mm
