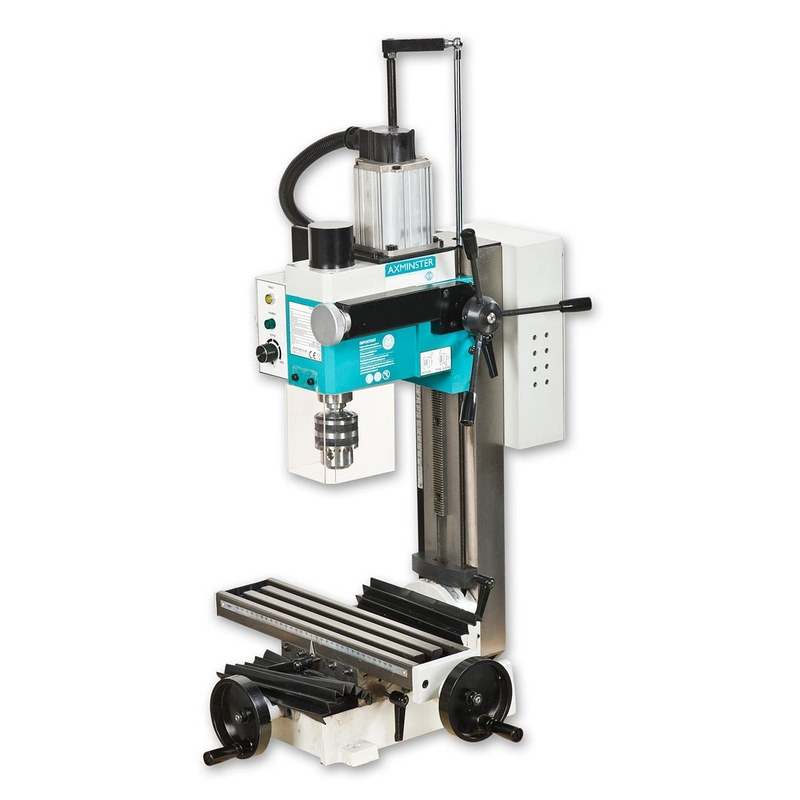

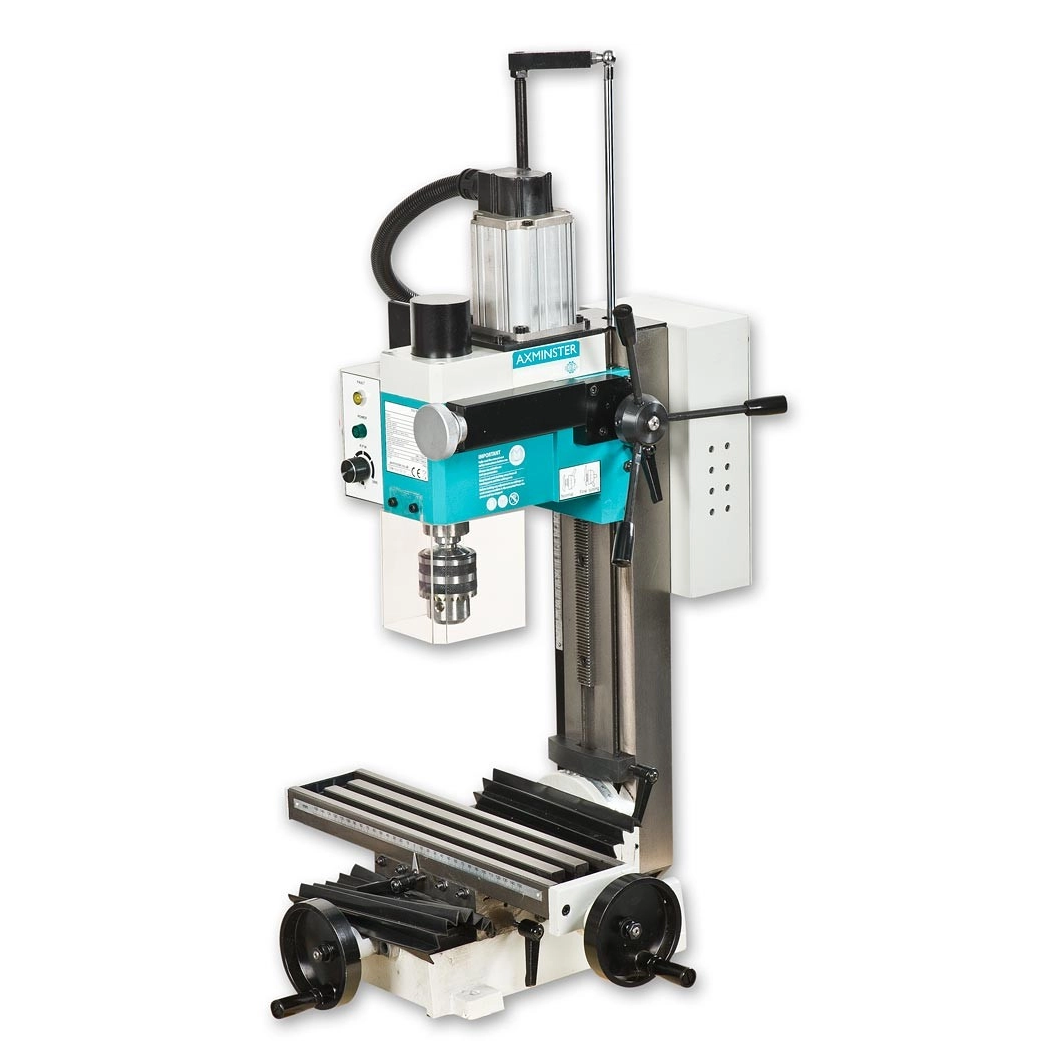

Engineer Series SX2 Mini Mill

Availability:
Quantity:
  • Engineer Series SX2 Mini Mill

  • Constructed in cast iron for vibration free running

  • Ground and hardened slideways with gib strip adjustment

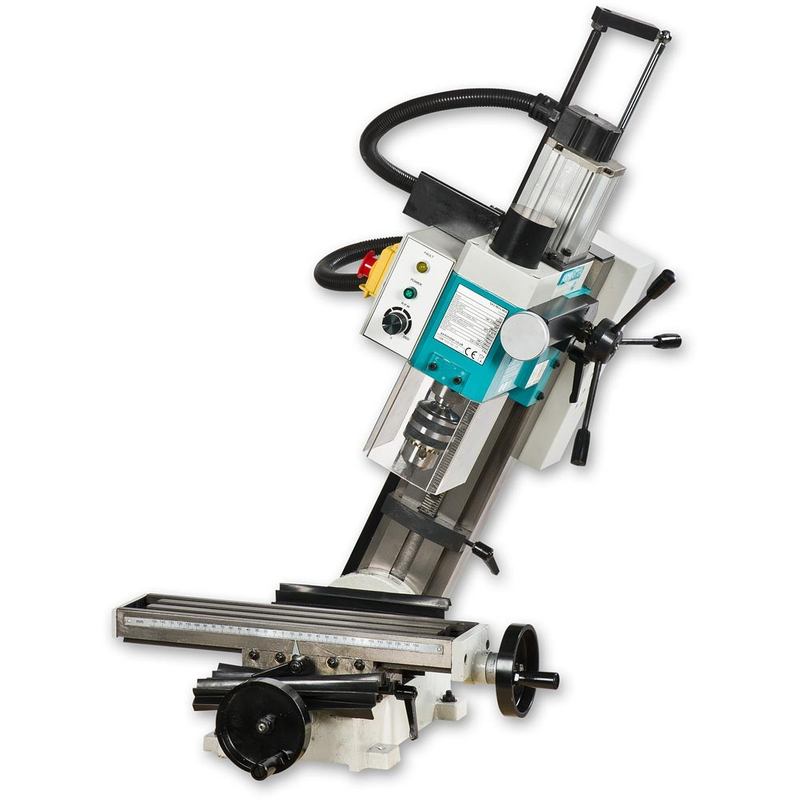

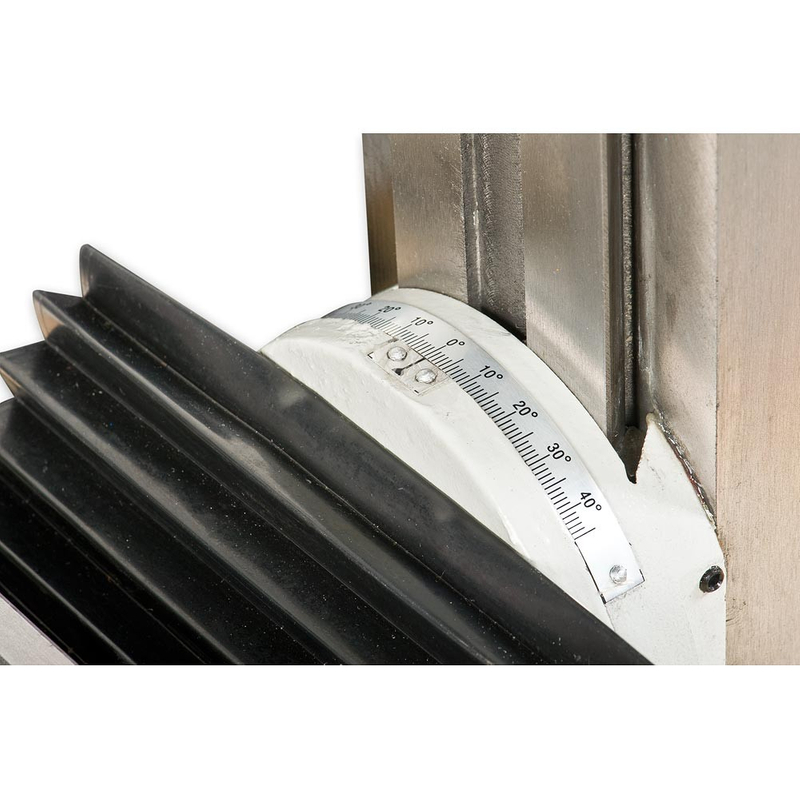

  • Milling head and column tilts to 45° Left & Right

  • 500W high torque DC brushless motor with belt spindle drive

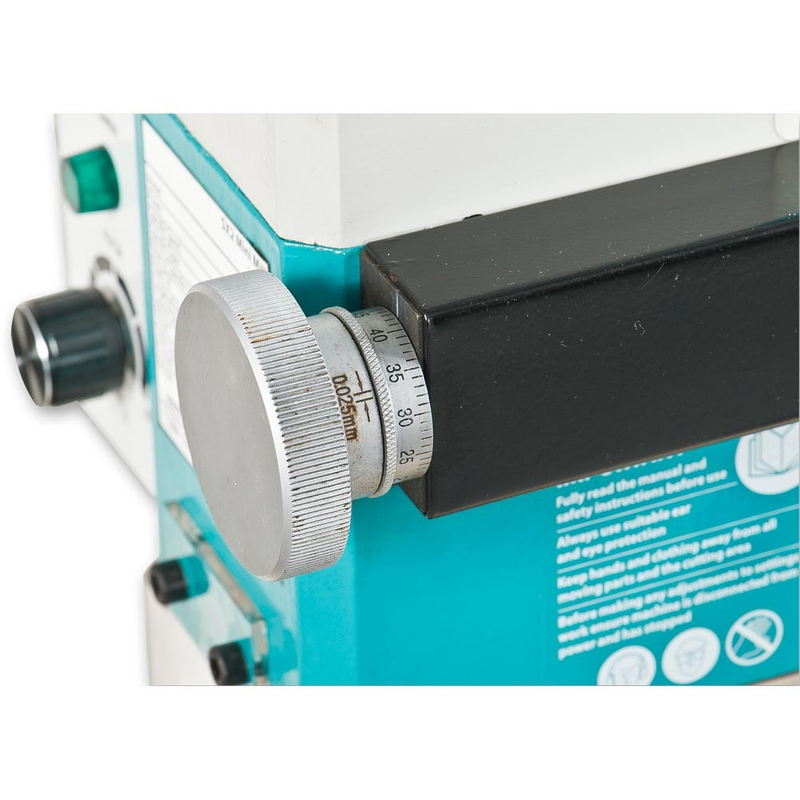

  • Fine down feed control for accurate tool height setting

  • Coarse down feed for drilling operations

  • 3MT spindle fitted with a 13mm drill chuck and arbor

  • 13mm drilling, 16mm end milling and 30mm face milling capacity

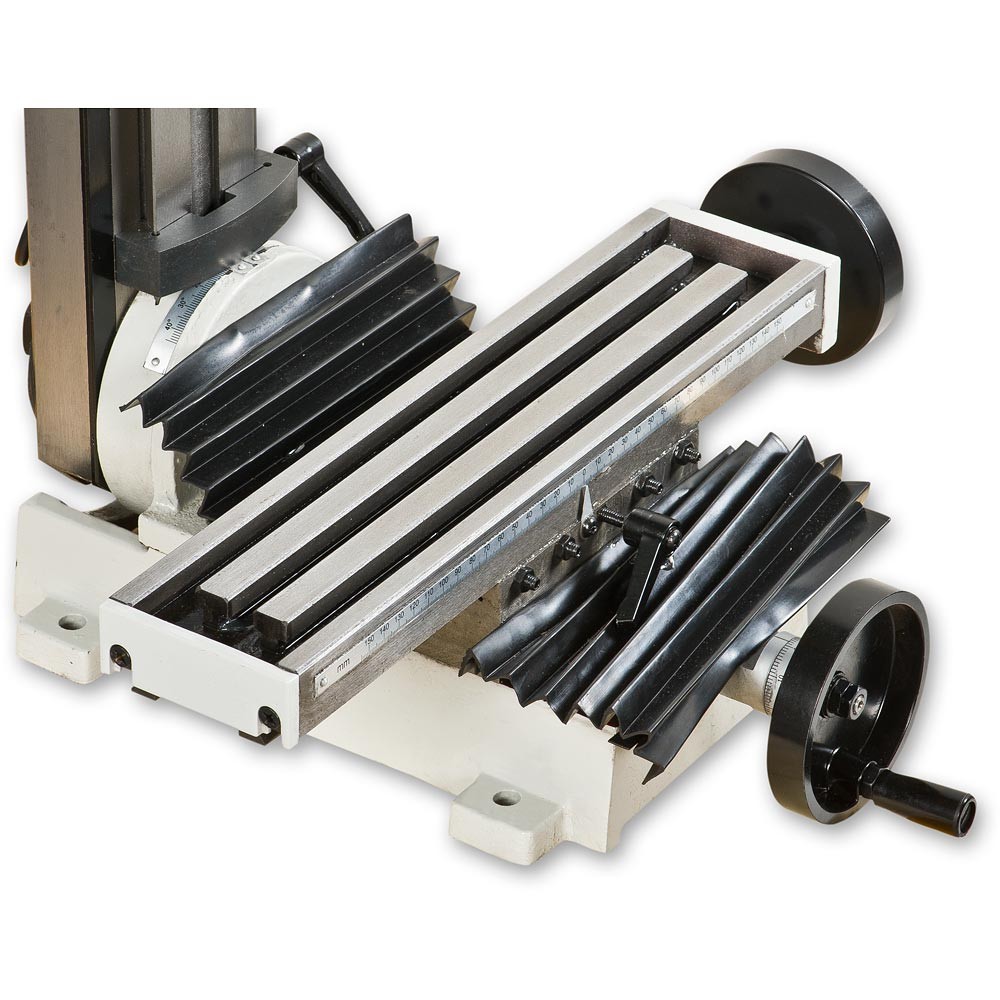

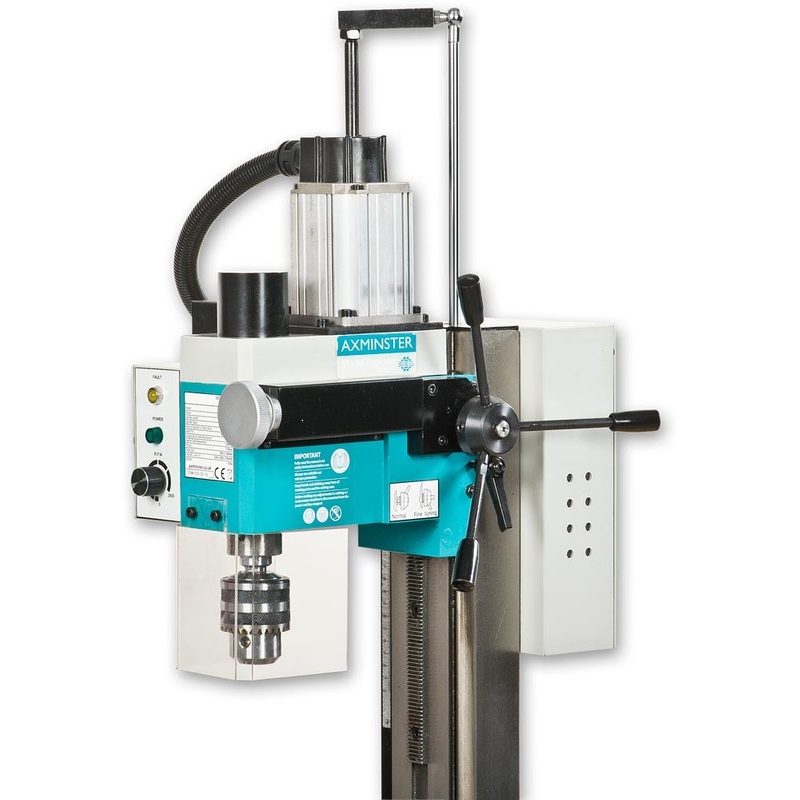

A fine, high precision mill/drilling machine, an ideal companion to the SC2 lathe. Constructed in cast iron with a finely ground table with 12mm T slots, and ground and hardened slideways. The milling head and column can tilt to 45° left or right for compound angle milling or drilling. The ample power comes from a high torque, brushless 500W DC motor with variable speed, giving a spindle speed range of 100 - 2,500rpm. It also has a notably quiet running spindle belt drive system. The spindle has an internal 3MT bore to enable a large range of tooling to be used. The headstock quill has a fine downfeed control feature for milling and a rack and pinion downfeed system for drilling. A gas support strut holds the headstock in position. The table leadscrews are covered for protection against swarf and debris. There is a connection port on the headstock for the optional digital spindle speed display panel. Supplied with a drill chuck and arbor, safety guard, tools and three drawbars 10mm, 12mm, 3/8 Whitworth. This is a superb, small mill for the model engineer or school use.

Specification

Drilling Capacity16mm
End Milling Capacity20mm
Face Milling Capacity35mm
Head Tilt45°L 0° 45°R
Lateral Table Movement100mm
Longitudinal Table Movement220mm
ModelSX2
Nett Weight50kg
Nose of Spindle to Table [Max]280mm
Overall L x W x H520 x 500 x 825mm
Power500W 230V
RatingModel Engineer
Spindle Speed100-2,500rpm
Spindle Taper3MT
Spindle Travel180mm
Table Size390 x 100mm
Throat170mm
T Slot Size12mm
