Engineer Series SX4 Mill Drill DIGI
You are here: Home » Products » MILLING » MILLING DRILLING MACHINE » BASIC MILLING / DRILLING » Engineer Series SX4 Mill Drill DIGI
Share to:

Engineer Series SX4 Mill Drill DIGI

Quantity:
  • Engineer Series SX4 Mill Drill DIGI
  • 1,500W brushless DC high torque motor
  • 3 axis digital read-out of the table position (X & Y) and headstock height (Z)
  • Tilting headstock with digital angle read-out
  • Power height adjustment of Z axis for ease of use
  • Spindle speed and spindle depth digital read-outs
  • Thread tapping function controls on handles
  • Optional X axis power feed and welded steel floor stand

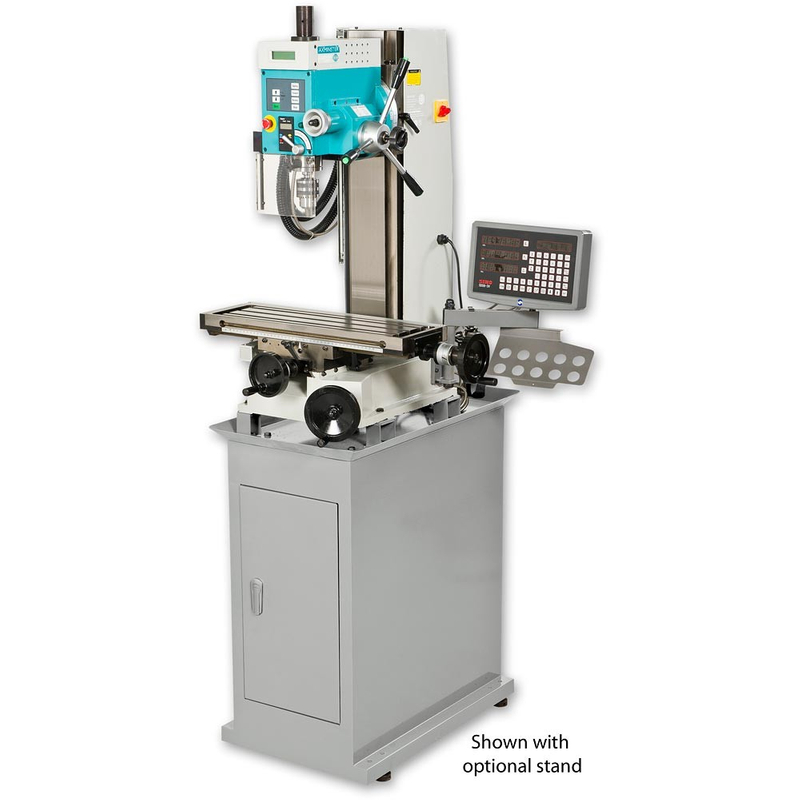

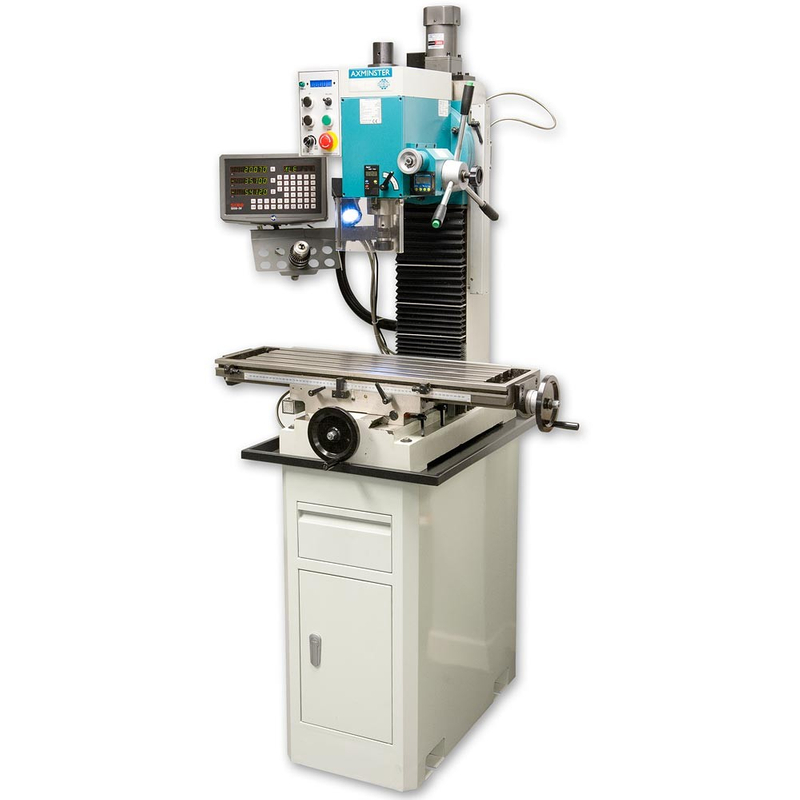

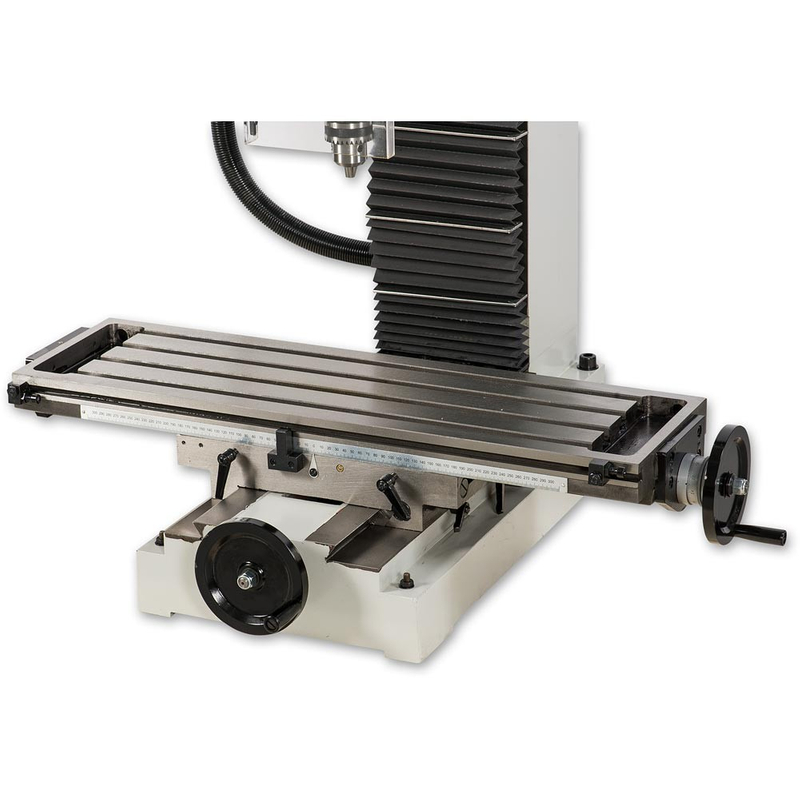

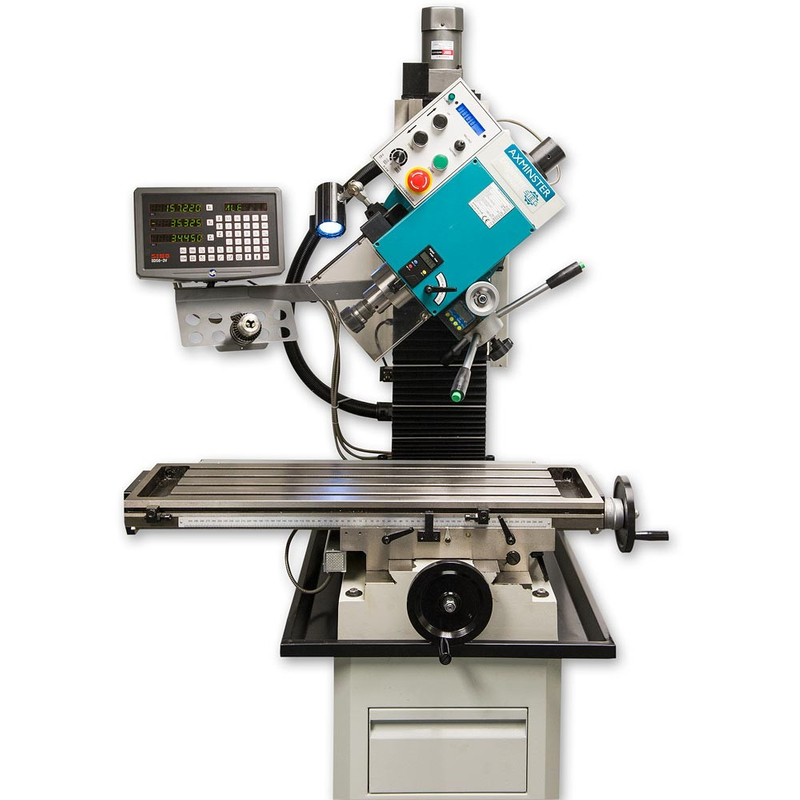

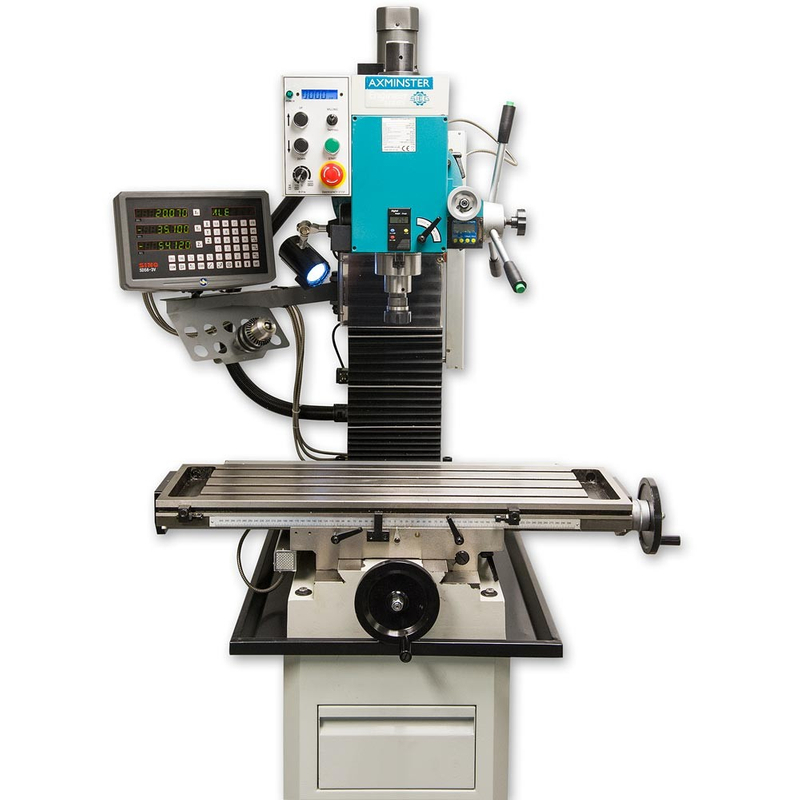

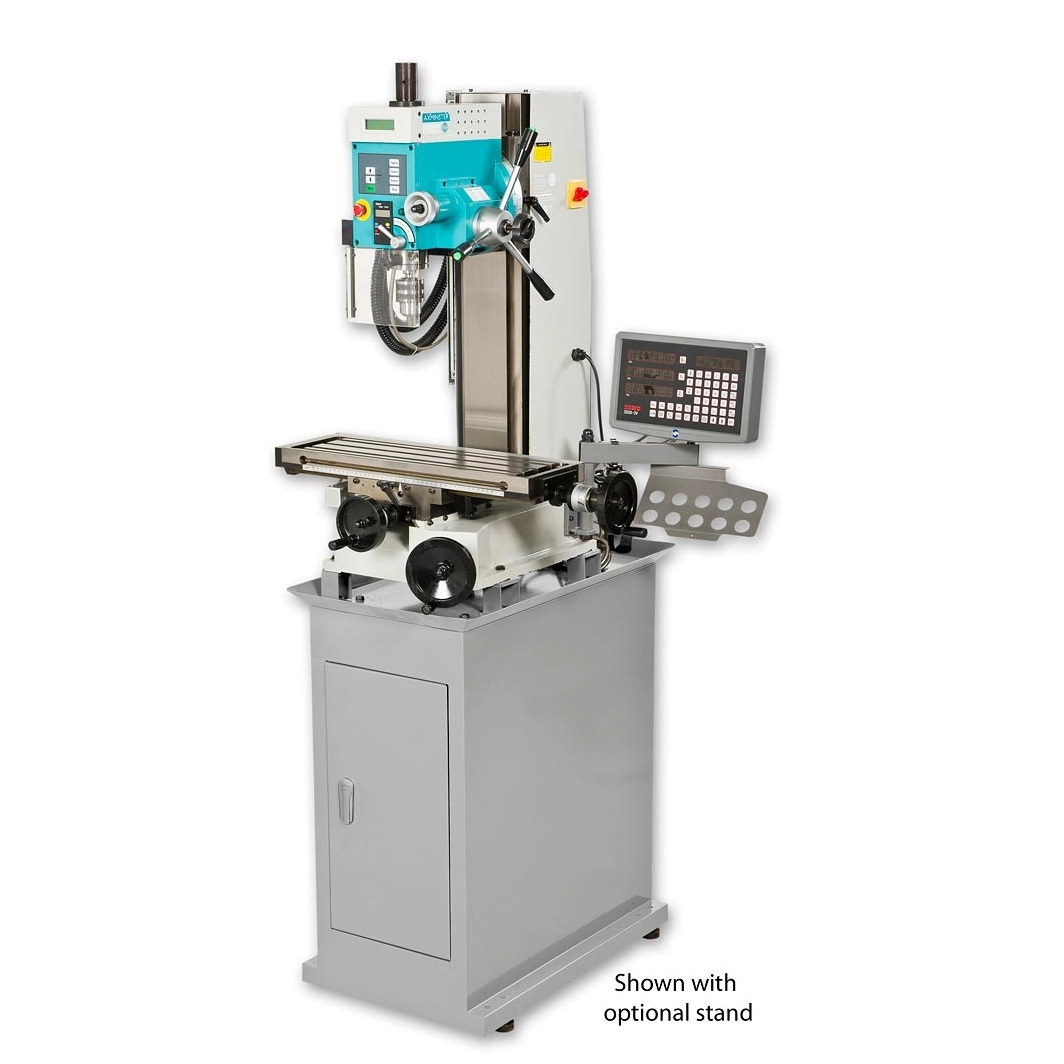

This more advanced version of the SX4 has a 3-axis digital read-out (DRO) of the table position (X & Y), plus the head stock height (Z). All the other attributes of the standard SX4 are here including being made almost entirely of cast iron with a dovetail column for huge strength and rigidity, and fitted with a high torque 1,500W brushless DC motor with electronic variable speed. The spindle has an R8 taper and a speed range of 100-1,600rpm. There are also digital displays for spindle speed and spindle height. The headstock is fitted with power elevation, no more vigorous hand cranking. It can tilt 45° right and 45° left. A neat touch is the digital headstock angle indicator, no more messing around with a protractor here! A fine downfeed control for milling and a course feed for drilling are fitted. There are switch controls on the handles for thread tapping. All motor controls are grouped on the headstock for ease of use. The table is massively constructed, with a ground surface and a coolant trough with a drain outlet. An optional Z axis power feed which brings a higher standard of finish and a sturdy floor stand are available. For those who need repeat accuracy for small batches, or who appreciate the extra ease of use a DRO brings, this machine is a great choice.

Axminster Engineer Series SX4 Mill Drill DIGI

Code: 505108

  • 1,500W brushless DC high torque motor
  • 3 axis digital read-out of the table position (X & Y) and headstock height (Z)
  • Tilting headstock with digital angle read-out
  • Power height adjustment of Z axis for ease of use
  • Spindle speed and spindle depth digital read-outs
  • Thread tapping function controls on handles
  • Optional X axis power feed and welded steel floor stand

In Detail

Engineer Classification & 3 Year Guarantee

This more advanced version of the SX4 has a 3-axis digital read-out (DRO) of the table position (X & Y), plus the head stock height (Z). All the other attributes of the standard SX4 are here including being made almost entirely of cast iron with a dovetail column for huge strength and rigidity, and fitted with a high torque 1,500W brushless DC motor with electronic variable speed. The spindle has an R8 taper and a speed range of 100-1,600rpm. There are also digital displays for spindle speed and spindle height. The headstock is fitted with power elevation, no more vigorous hand cranking. It can tilt 45° right and 45° left. A neat touch is the digital headstock angle indicator, no more messing around with a protractor here! A fine downfeed control for milling and a course feed for drilling are fitted. There are switch controls on the handles for thread tapping. All motor controls are grouped on the headstock for ease of use. The table is massively constructed, with a ground surface and a coolant trough with a drain outlet. An optional Z axis power feed which brings a higher standard of finish and a sturdy floor stand are available. For those who need repeat accuracy for small batches, or who appreciate the extra ease of use a DRO brings, this machine is a great choice.

Information Downloads

Specification

Base Size 370 x 720mm
Diameter of Column N/A
Drilling Capacity 30mm
End Milling Capacity 40mm
Face Milling Capacity 55mm
Head Tilt 45°L 0° 45°R
Lateral Table Movement 245mm
Longitudinal Table Movement 410mm
Model SX4
Nett Weight 315kg
Nose of Spindle to Table [Max] 400mm
Overall L x W x H 1,060 x 835 x 1,080mm
Power 1,500W (230V)
Rating Engineer
Spindle Speed 100-1,600rpm
Spindle Taper R8
Spindle Travel 82mm
Table Size 240 x 820mm
Table Travel 450 x 245mm
Throat 290mm
T Slot Size 14mm
