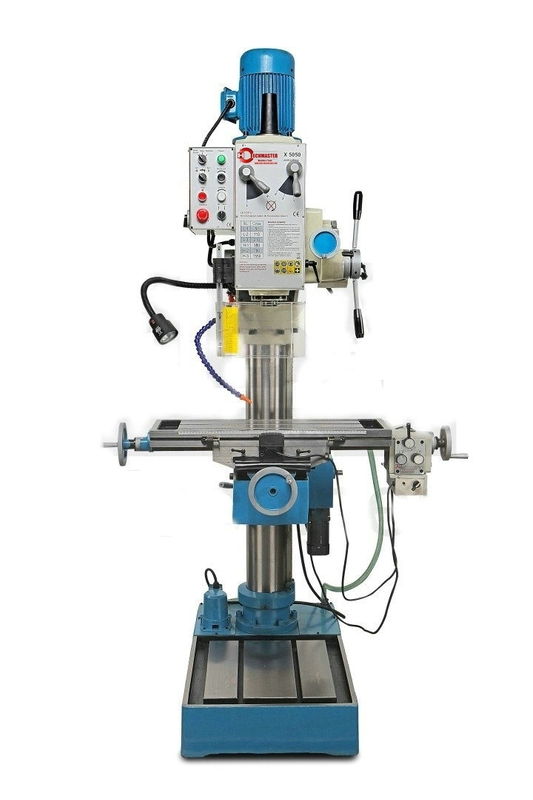

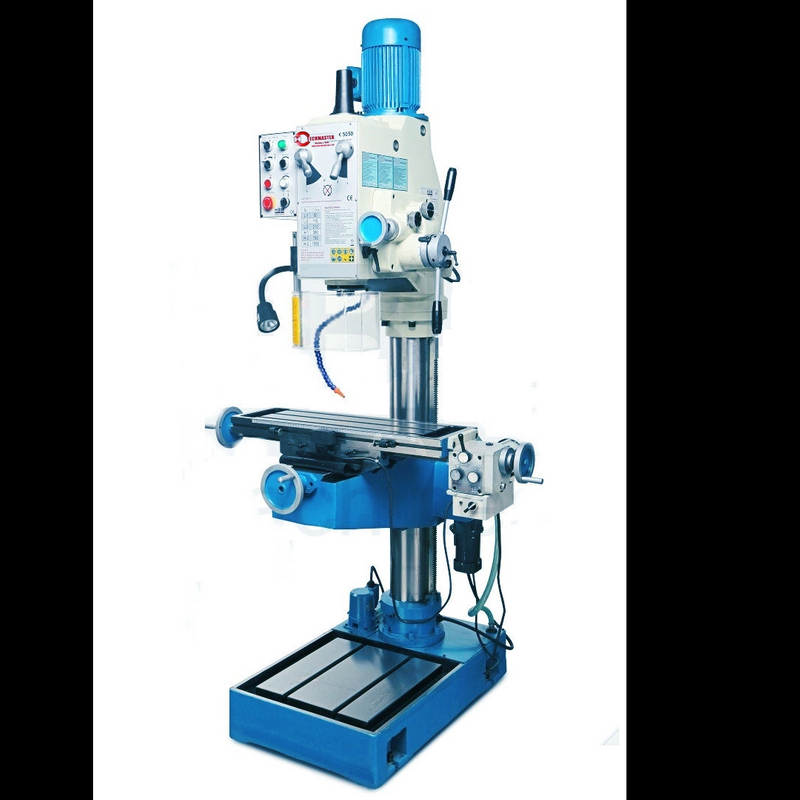

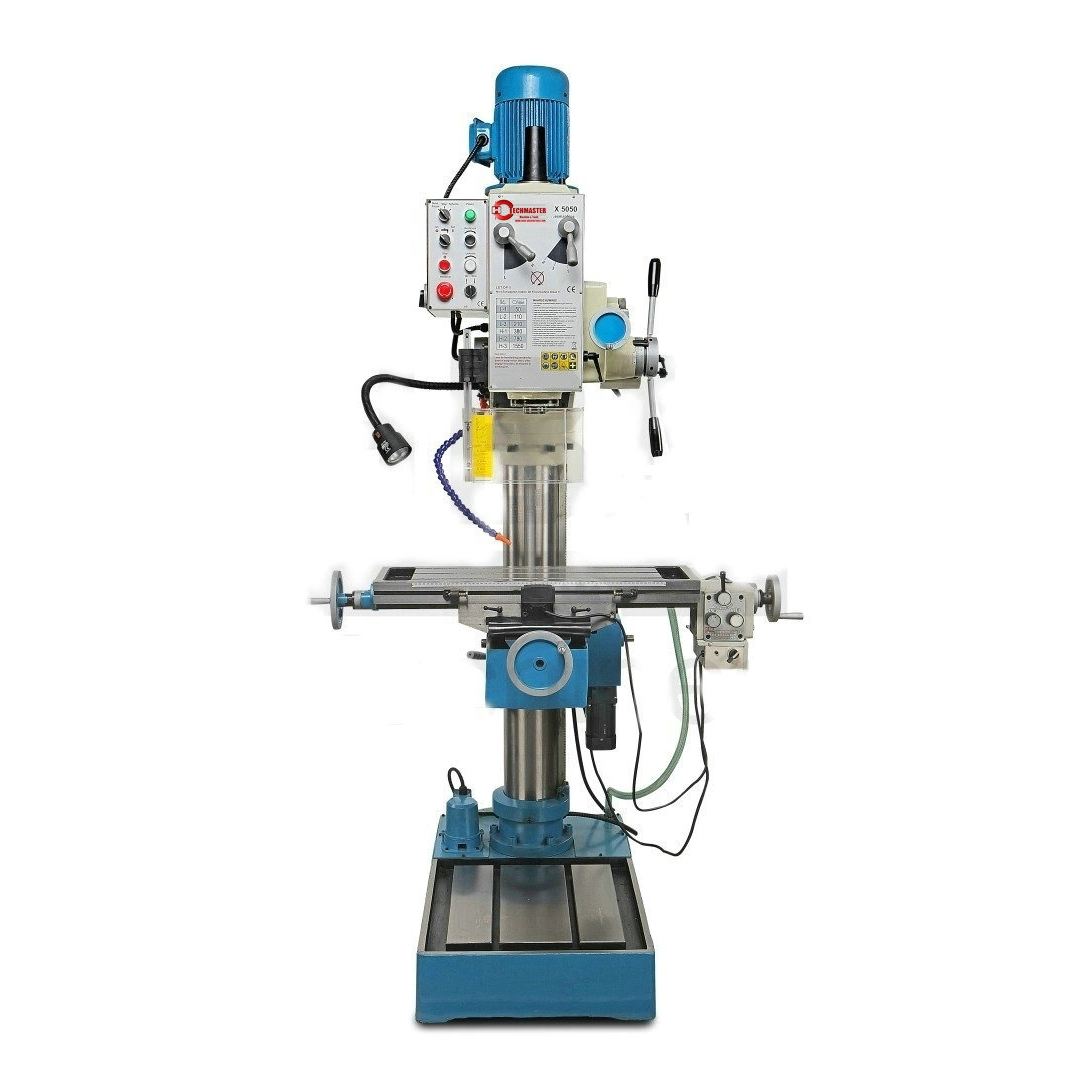

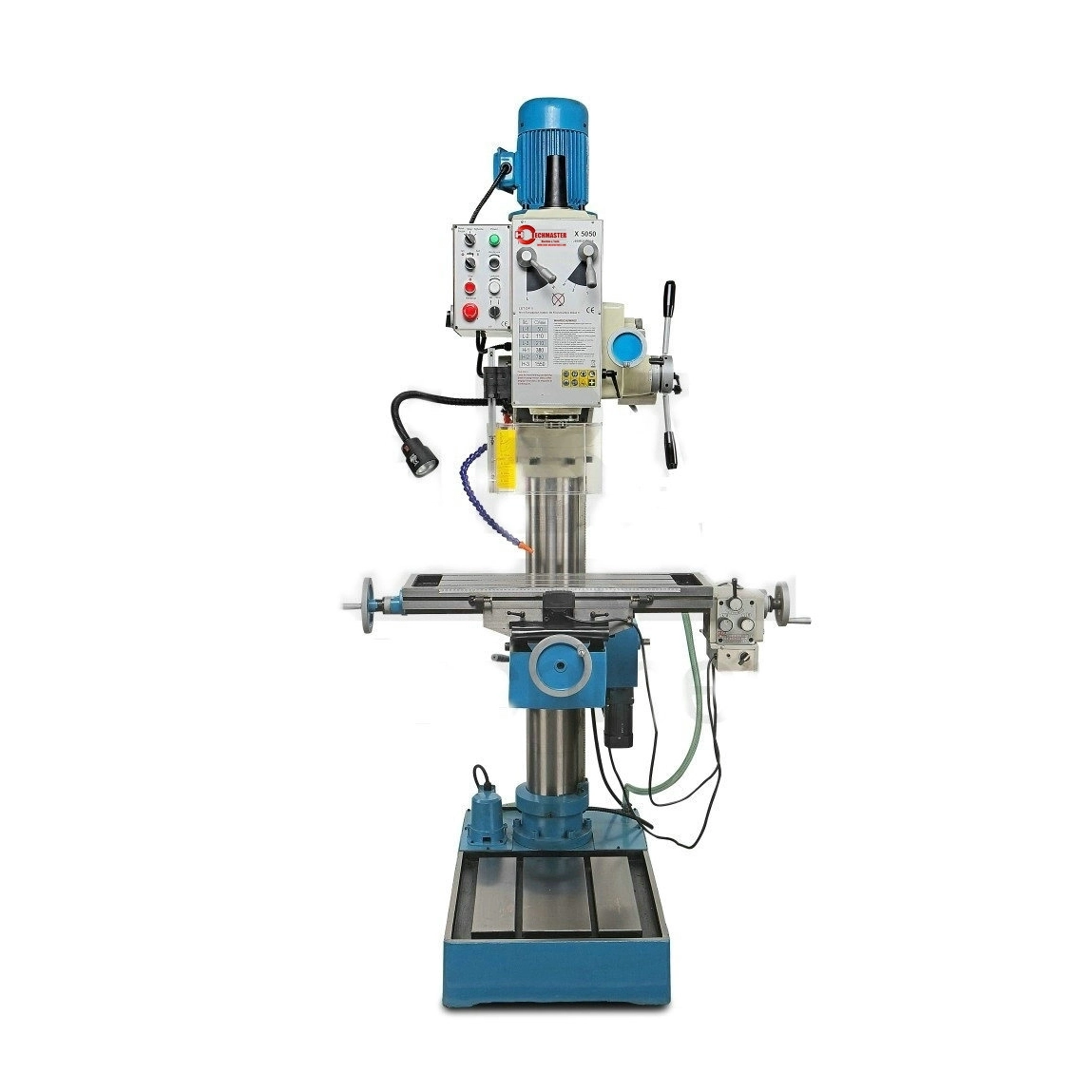

Europe Top Quality Vertical Drilling and Milling Machine ZX5050
Quantity: -
ZX5050 WJ
Feature:
• Solid, grey cast iron construction with modern design
• Speed adjustment by gear drive
• 4 steps of automatic spindle feeds
• Power spindle feed
• Tapping, coolant and X-axis power feed as standard
• Large cross table with T-slots
• Z-axis power feedModel No. ZX5050 Max. drilling capacity 50mm Max. tapping capacity 32mm Table size 800x240mm Cross travel 500mm Cross travel 500mm Longitudinal travel 280mm Distance spindle to column 350mm Distance spindle to table 700mm Distance spindle to base 1290mm Spindle taper MT4 Spindle stroke 210mm T-slot size 14mm Range of spindle speed 50-1500rpm/6 Spindle feed 0.1/0.2/0.3/0.4 mm/r X-axis table feed 20-125mm/min Column diameter 160mm Motor 2.2kw Net weight 830kg
Feature:
• Solid, grey cast iron construction with modern design
• Speed adjustment by gear drive
• 4 steps of automatic spindle feeds
• Power spindle feed
• Tapping, coolant and X-axis power feed as standard
• Large cross table with T-slots
• Z-axis power feedModel No. ZX5050 Max. drilling capacity 50mm Max. tapping capacity 32mm Table size 800x240mm Cross travel 500mm Cross travel 500mm Longitudinal travel 280mm Distance spindle to column 350mm Distance spindle to table 700mm Distance spindle to base 1290mm Spindle taper MT4 Spindle stroke 210mm T-slot size 14mm Range of spindle speed 50-1500rpm/6 Spindle feed 0.1/0.2/0.3/0.4 mm/r X-axis table feed 20-125mm/min Column diameter 160mm Motor 2.2kw Net weight 830kg
