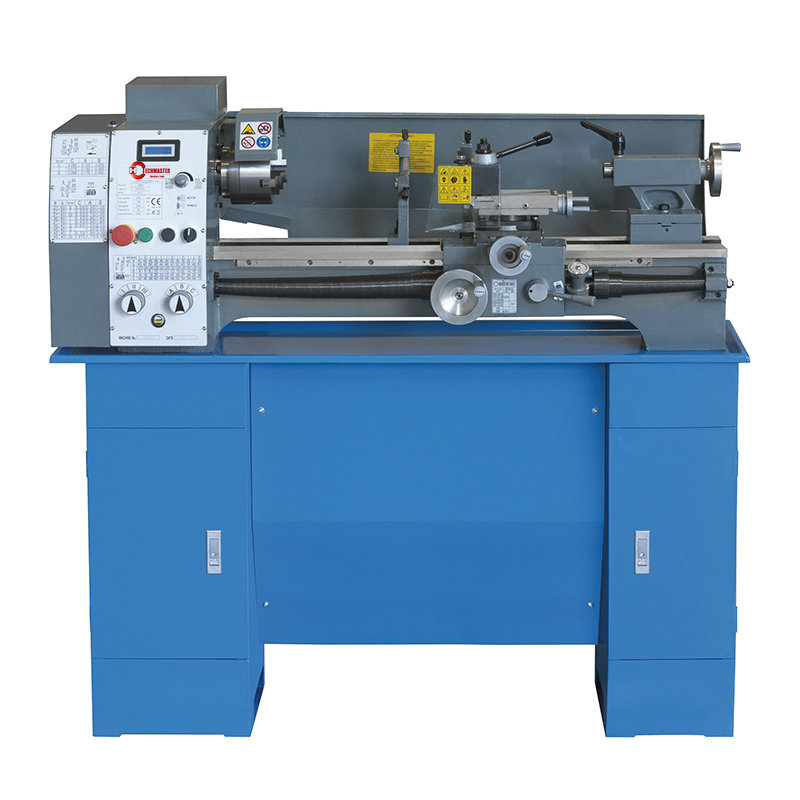

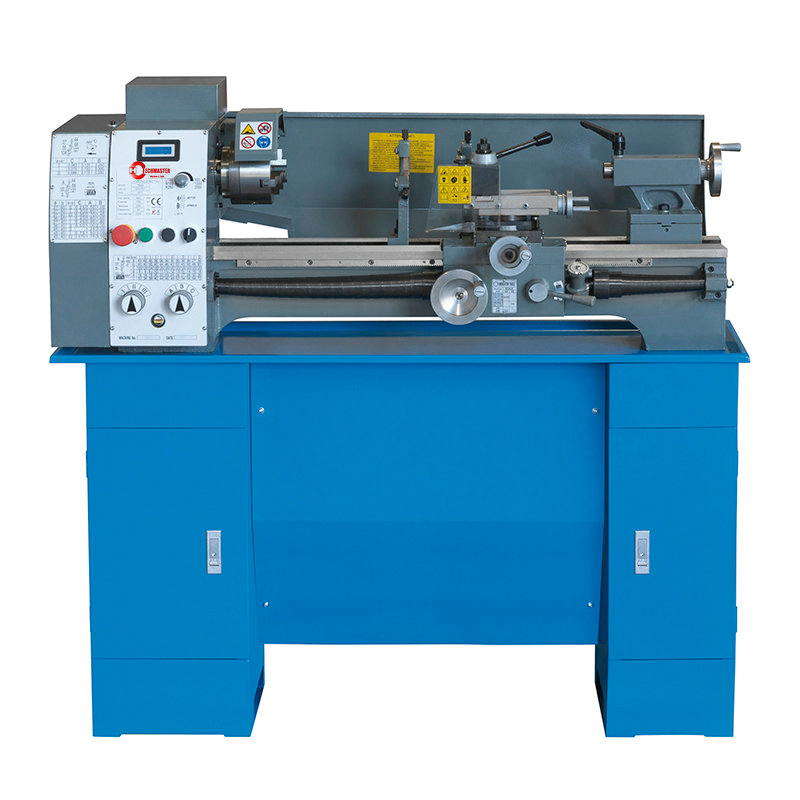

FEATURES: Hardened spindle, standard 26 mm bore Electronic, stepless speed setting allows ideal adjustment to workpiece Serially equipped with longitudinal and cross feed Inductively hardened and polished machine bed provides large face Constructed according to Bernardo-Standards Precise spindle bedding with 2 adjustable precision taper roller bearings User-friendly arrangement of control elements on gear head Protective switch according to IP54 standards with undervoltage release Swivelling mill head extends application area (90° to +90°)(optional) Mill head with digital display for spindle stroke and speed(optional)
Standard accessories: 3-jaw chuck DK11-125 mm Flange 125 mm Drill chuck 1 - 13 mm / B 16 Drill chuck arbor MT 2 / B 16 Thread dial Dead centers Change gears 4-way tool post holder Cross slide with top support Digital spindle stroke display Digital speed display Drawbar M 10 Chuck guard Leadscrew cover Tools
Inverter giapponese con regolazione velocità mandrino
100 ÷ 2000 rpm
Altezza punte
140 mm
Diametro max sul banco
280 mm
Diametro max sul carro
165 mm
Distanza tra le punte
660 mm
Cono albero CM
4
Passaggio barra
26 mm
Avanzamenti longitudinali mm/giro
0,063 ÷ 0,35
Filettature metriche
0,25 ÷ 3,5 mm
Filettature in pollici
8 ÷ 72 TPI
Conicità contropunta CM
2
Motore trifase
230V 0,75 kW
Alimentazione monofase
200-240 V 50/60 Hz
Dimensioni tornio
1325 x 550 x 1230 mm
Peso
260 kg
FEATURES: Hardened spindle, standard 26 mm bore Electronic, stepless speed setting allows ideal adjustment to workpiece Serially equipped with longitudinal and cross feed Inductively hardened and polished machine bed provides large face Constructed according to Bernardo-Standards Precise spindle bedding with 2 adjustable precision taper roller bearings User-friendly arrangement of control elements on gear head Protective switch according to IP54 standards with undervoltage release Swivelling mill head extends application area (90° to +90°)(optional) Mill head with digital display for spindle stroke and speed(optional)
Standard accessories: 3-jaw chuck DK11-125 mm Flange 125 mm Drill chuck 1 - 13 mm / B 16 Drill chuck arbor MT 2 / B 16 Thread dial Dead centers Change gears 4-way tool post holder Cross slide with top support Digital spindle stroke display Digital speed display Drawbar M 10 Chuck guard Leadscrew cover Tools
Inverter giapponese con regolazione velocità mandrino
