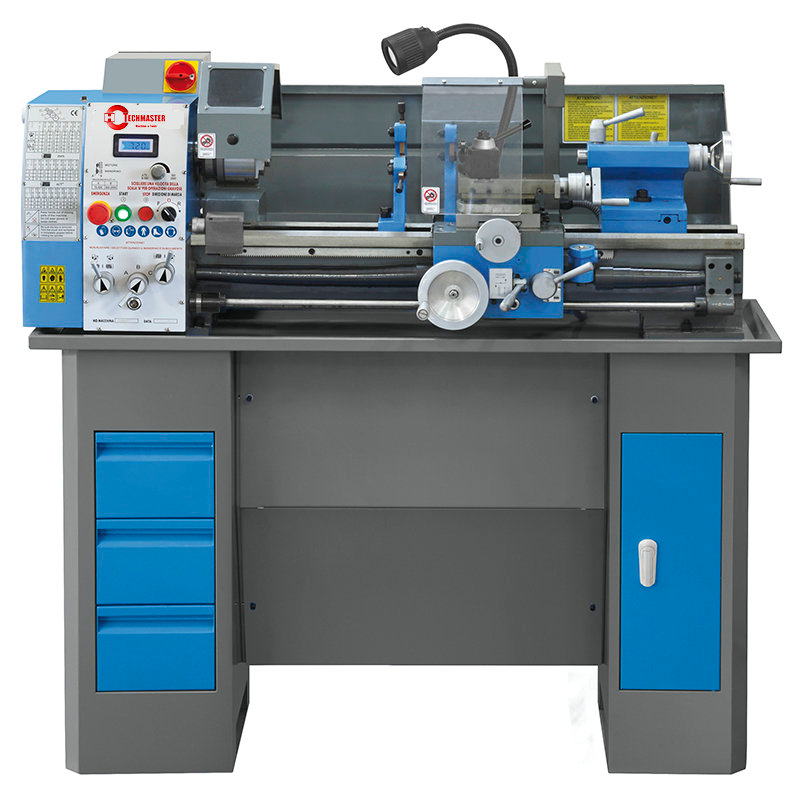

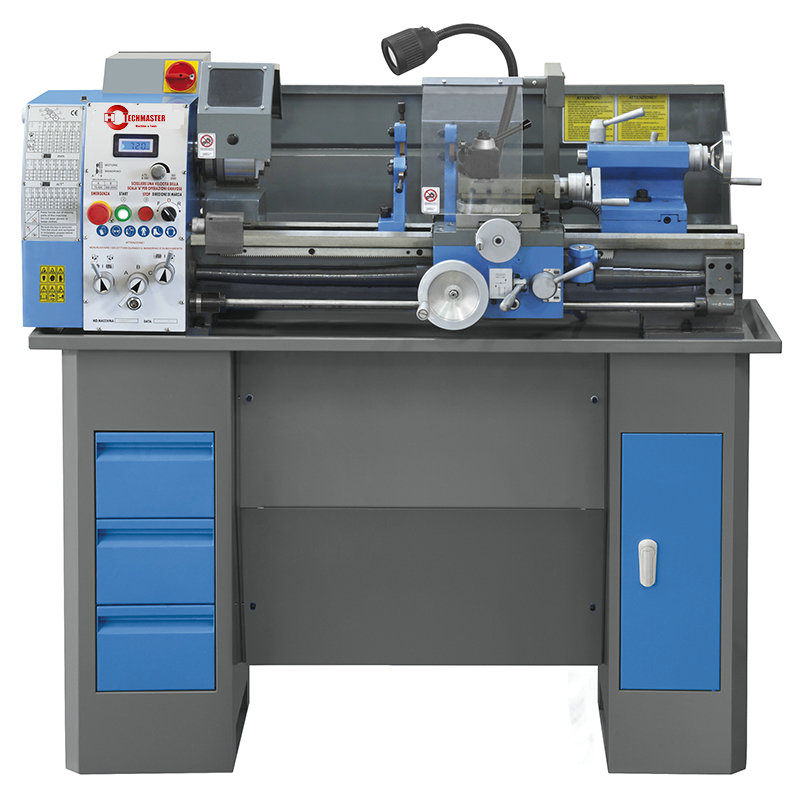

FEQUENCY INVERTER LATHE PROFI290FX750MM

Quantity:
  • PROFI290FX750MM

Product Description




FEQUENCY INVERTER PROFI290F

FEATURES:
Smooth and steady feed gear box with gears in oil bath
Spindle of larger capacity taper of MT5 and bore of 38 mm
Double Vee-Bed way is induction hardened and precision ground
Strong power( DC motor with stepless speed controler,) allows high torque for turning at low speed
Spindle is supported by precision bearings
Longitudinal feed allows threading
Left or right hand threads cutting is provided
T- Slotted cross slide
Tailstock offset allows taper turning
Adjustable gibs for sliding ways
Magnetic safety switch with emergency stop
Combined switch for spindle forward/ reverse turning

STANDARD ACCESSORIES:
Digital speed indication
3 Jaw Chuck Φ125 mm,
Dead Centers MT3 and MT4
Change Gears Set,
Spray Guard
Chip Tray,
4-way tool post holde
Tool Box with Tools

OPTIONAL ACCESSORIES:
2-Axis Digital Readouts
Steady Rest,
Follow Rest
Face Plate Φ240 mm for D290V
Cabinet Stands,
Rolling Center MT3
4 Jaw Chuck with Flange Φ160 mm forProfi 290V
Spindle Collet Chuck Holder ER32
Chuck Collet Set ER32- 18pcs, 3-20mm
Quick Change Tool Post Holder Set QTH-A
Indexable Carbide Turning Tool Set 12mm, 9pcs

Inverter taiwanese con regolazione velocità mandrino
75 ÷ 500 / 300 ÷ 2000 rpm
Altezza punte
145 mm
Diametro max sul banco
290 mm
Diametro max sul carro
175 mm
Distanza tra le punte
750 mm
Cono morse CM
4
Passaggio barra
26 mm
Avanzamenti longitudinali mm/giro
0,07 ÷ 1,0
Avanzamenti trasversali mm/giro
0,0017 ÷ 0,25
Filettature metriche
(18) 0,2 ÷ 3,5 mm
Filettature in pollici
(21) 8 ÷ 56 TPI
Conicità contropunta CM
3
Alimentazione monofase
200-240 V 50 / 60 Hz
Motore trifase
230 V 1,1 kW
Dimensioni tornio
1450 x 720 x 1280 mm
Peso
360 kg
