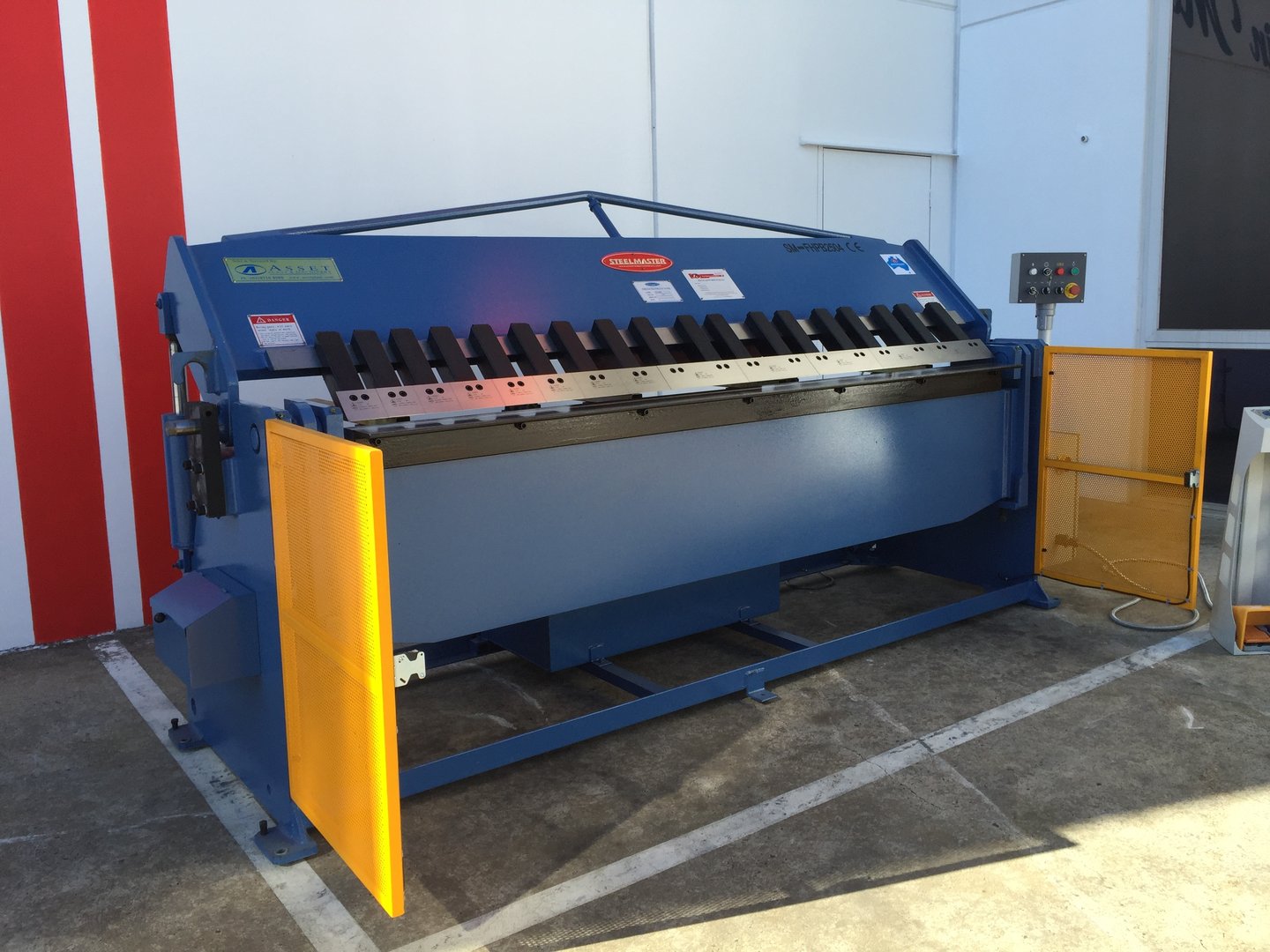

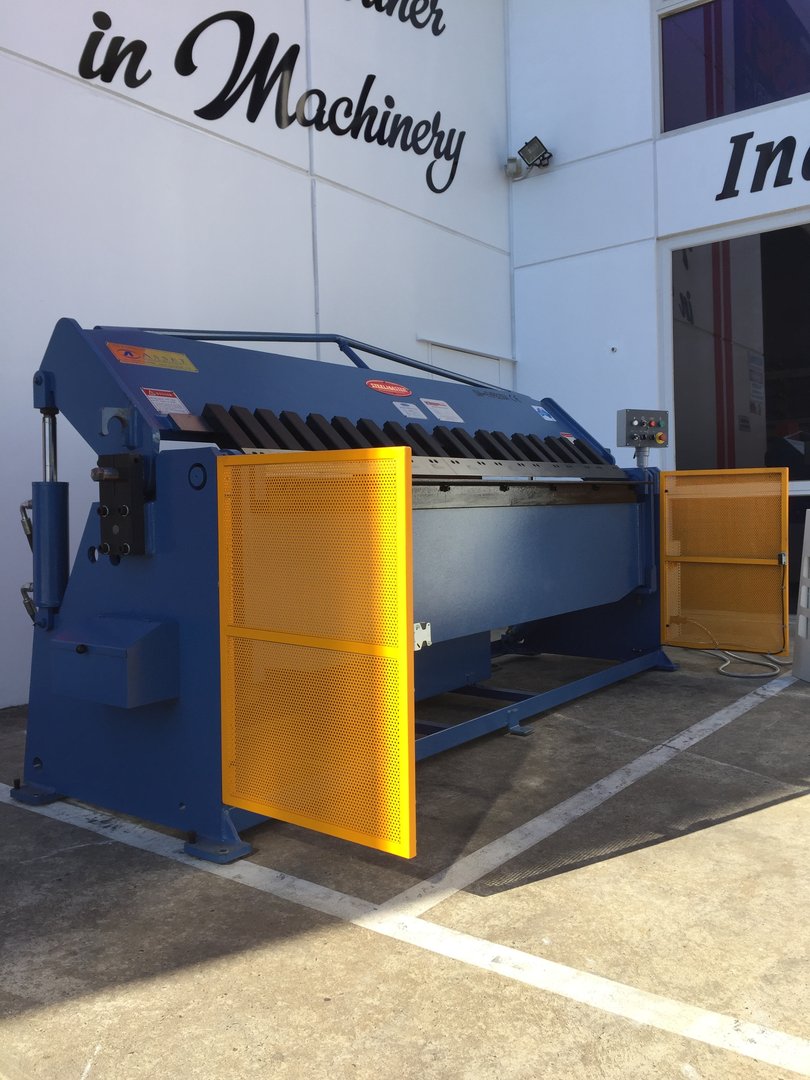

FHPB2504. Panbrake Folder. Full Hydraulic. 2500mm x 4mm with Quick Set Angle Fold Setting.

Quantity:
  • FHPB2504. PanbrakFolder. Full Hydraulic. 2500mm x 4mm with Quick Set Angle Fold Setting.

Description
Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away.
Quality and ease of operation, our standard machine offers a quick set angle controller for quick and accurate folding of all applications.
Produced exclusively for Asset by Australian Engineers.

Structural & Operating Features
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚high structural rigidity from heavy plate steel box construction with continuous welded seams
❚bending beam powered by dual hydraulic cylinders
❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature

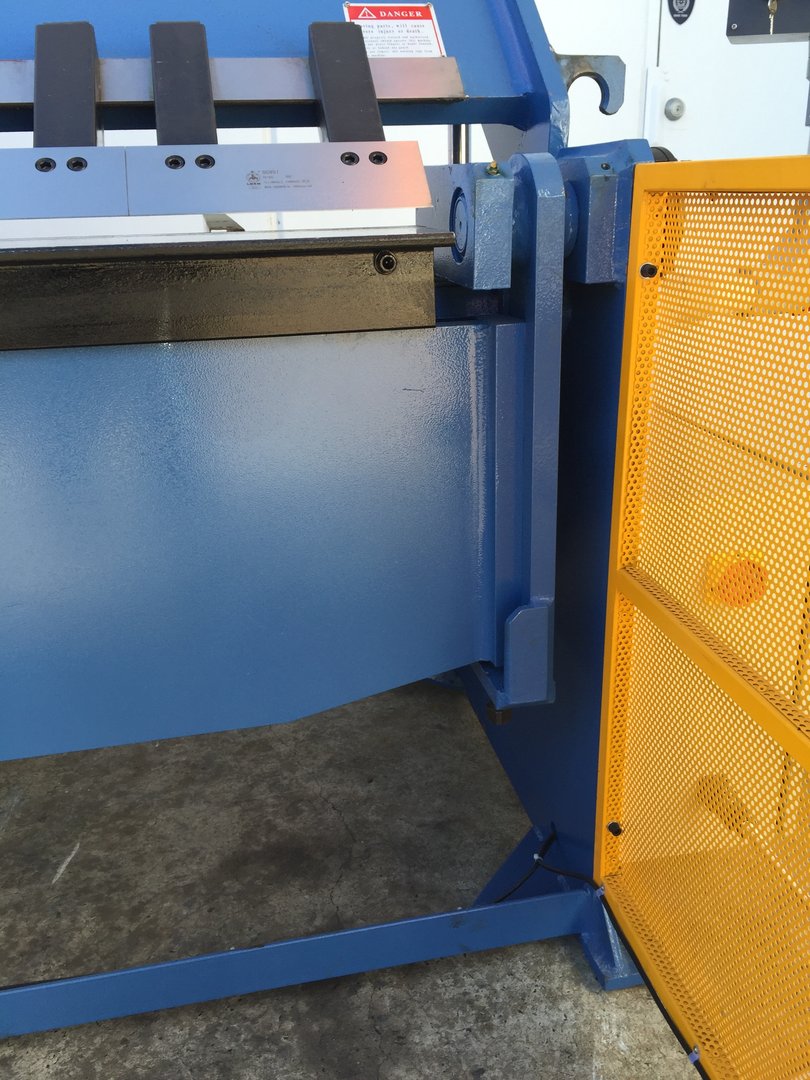

❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings

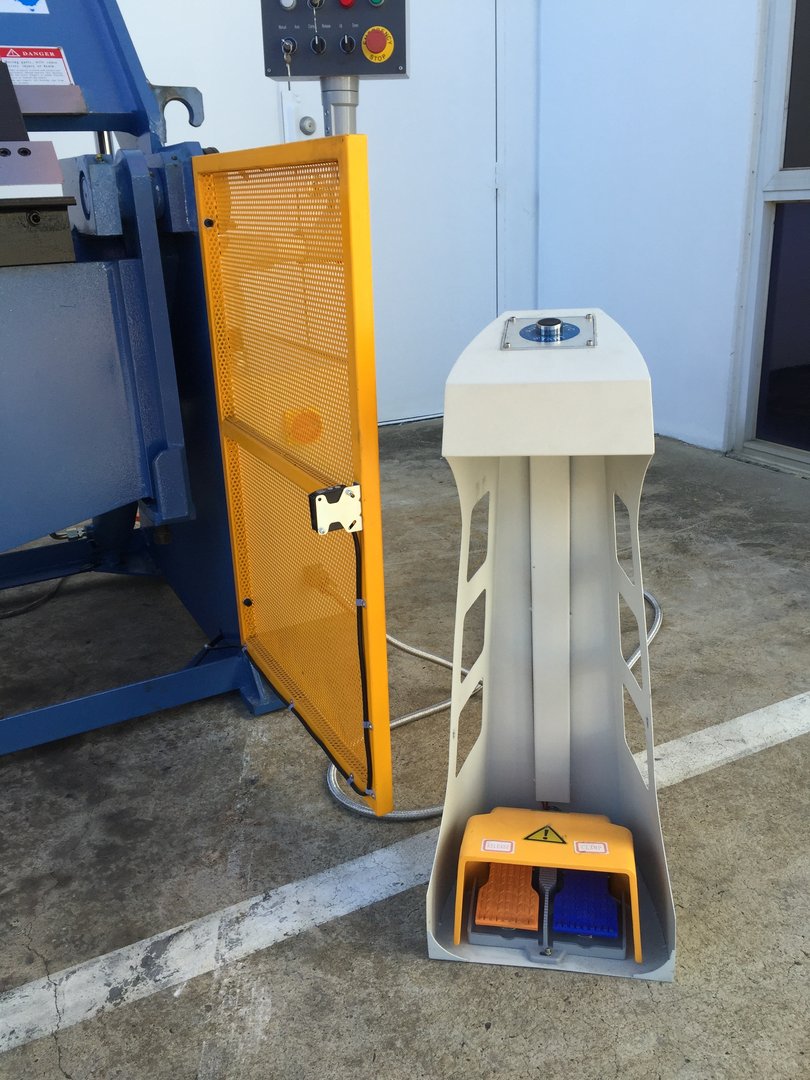

❚precise electric / hydraulic controls with manual inching of bending beam
❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
❚comprehensive equipment protection from electric and hydraulic overload systems

Hydraulic System
❚high quality componentry ensures reliable performance for years of continuous operation
❚powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
❚unique electric / hydraulic control ensures safe and simple operation

Specifications
❚high bending angle of 0-135°
❚greatest depth of box bent 160 mm
❚powerful motor
❚200 mm 8"lift of clamping beam
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚24 volt control wiring

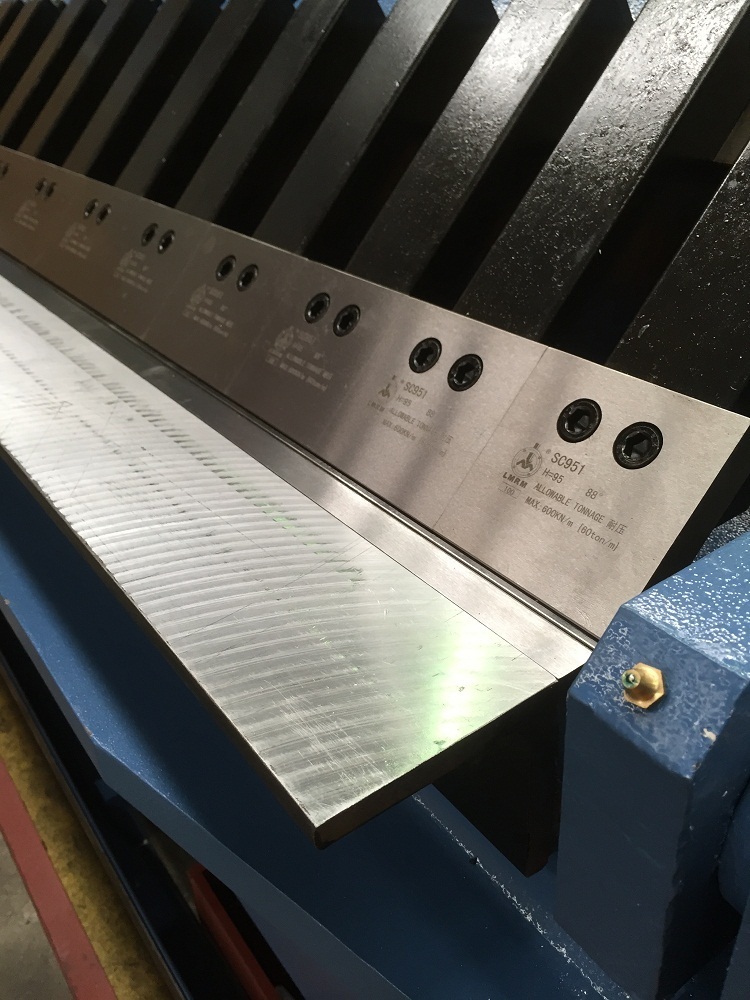

❚bending fingers made from hardened material, maximizing life

Standard Angle Setting Option

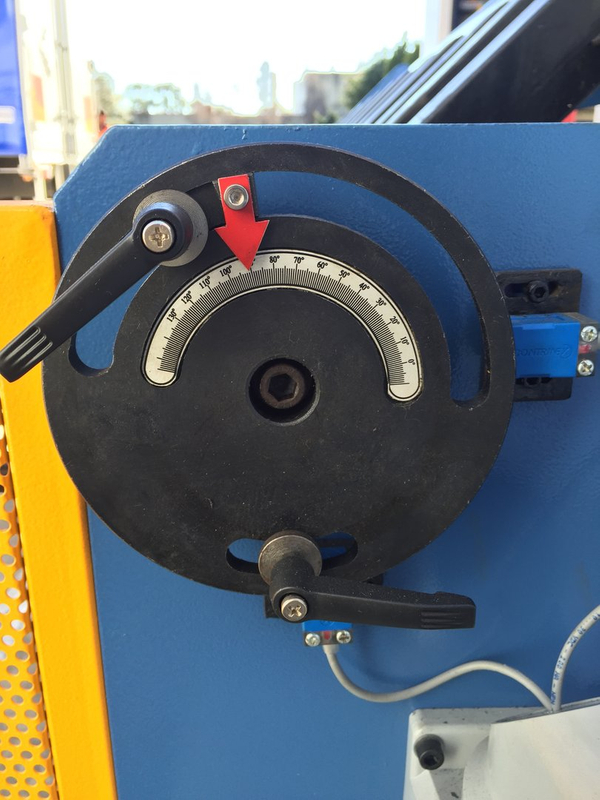

❚offering quick action angle setting via a calibrated dial located on the side of the machine (NC Model Displayed)

Technical Data Snap-Shot
❚2500mm x 4.0mm bending capacity
❚0 ~ 135 bending range
❚shipping dimensions - 3050mm x 850mm x 1550mm
❚power - 415V 3Kw
❚approx weight: 3300kg
