Description Our Australian designed & engineered Full hydraulic Panbrake will blow the competition away. Quality and ease of operation, our standard machine offers a quick set angle controller for quick and accurate folding of all applications. Produced exclusively for Asset by Australian Engineers.

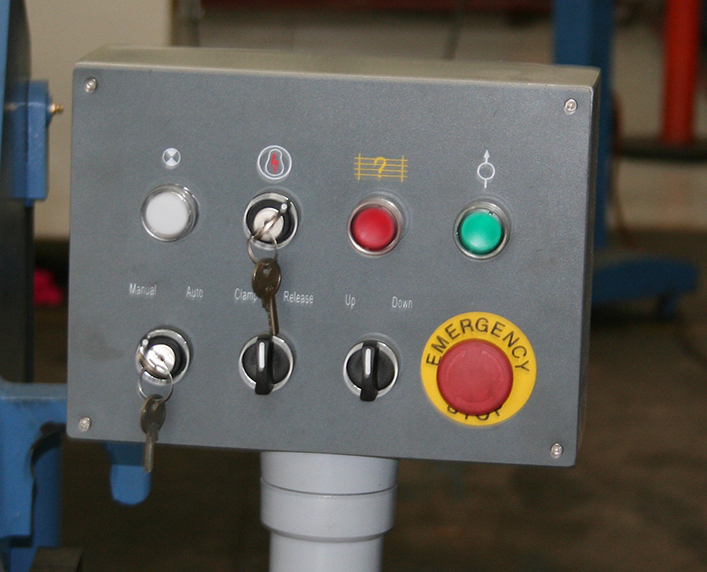

Structural & Operating Features ❚hydraulically operated bending and clamping beam for efficient heavy duty operation ❚high structural rigidity from heavy plate steel box construction with continuous welded seams ❚bending beam powered by dual hydraulic cylinders ❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature ❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings ❚precise electric / hydraulic controls with manual inching of bending beam ❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron ❚comprehensive equipment protection from electric and hydraulic overload systems

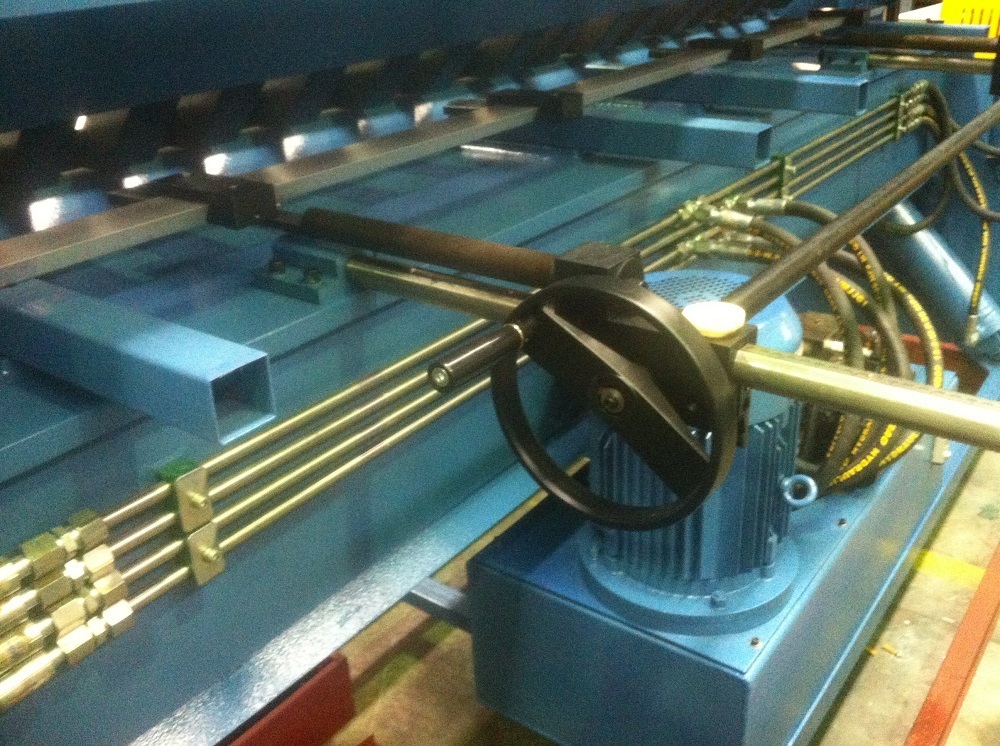

Hydraulic System ❚high quality componentry ensures reliable performance for years of continuous operation ❚powerful direct coupled hydraulic pump and motor provides efficient, rapid operation ❚unique electric / hydraulic control ensures safe and simple operation
Specifications ❚high bending angle of 0-135° ❚greatest depth of box bent 185 mm ❚powerful motor ❚200 mm 8" lift of clamping beam ❚hydraulically operated bending and clamping beam for efficient heavy duty operation ❚24 volt control wiring ❚bending fingers made from hardened material, maximizing life
Standard Angle Setting Option ❚offering quick action angle setting via a calibrated dial located on the side of the machine (NC Model Displayed)
Technical Data Snap-Shot ❚4000mm x 4.0mm bending capacity ❚o ~ 135 bending range ❚shipping dimensions - 4400mm x 950mm x 1550mm ❚power - 415V 5.5Kw ❚approx weight: 4950kg
