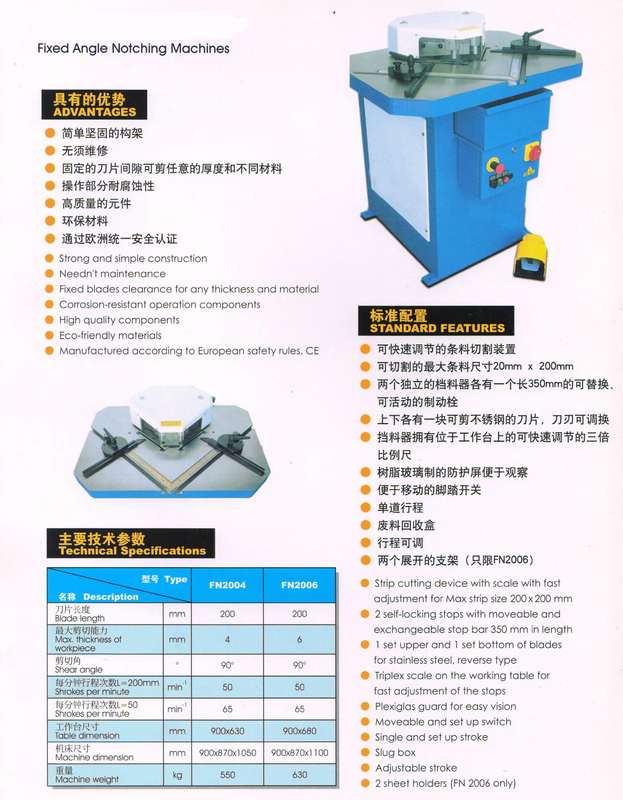

FIXED ANGLE NOTCHING MACHINE
Quantity: -
FN2004
Hydraulic Corner Notchers with either variable angle (VN) or fixed angle (FN). These corner notchers have a heavy and rigid construction with a solid machined table and high chrome/high carbon blades. Both models come standard with automatic blade gap adjustment thereby eliminating operator set up errors.
Fixed Angle Notcher Standard Equipment
- Hand or foot operation
- Removable slug tray
- Two protractor gauges with pin locators for 45 degree settings
- T-slotted table with measuring scales set into the table
- Automatic blade gap clearance adjustment
- Blade suitable for cutting mild or stainless steel
- Adjustable back gauge for single side shearing
- Material hold downs with neoprene feet
- Includes Plexiglass Safety Shield
Fixed Angle Notcher Variable Angle Notcher Model FN 2004 VN 2006 Notch Size 7.87” x 7.87” 7.87” x 7.87” Capacity 10GA Mild Steel 1/4” Mild Steel Cutting Angle 90° 30°-140° Includes Plexiglass safety shield Plexiglass safety shield Electrics 575V 3PH 60Hz 575V 3PH 60Hz
Hydraulic Corner Notchers with either variable angle (VN) or fixed angle (FN). These corner notchers have a heavy and rigid construction with a solid machined table and high chrome/high carbon blades. Both models come standard with automatic blade gap adjustment thereby eliminating operator set up errors.
Fixed Angle Notcher Standard Equipment
- Hand or foot operation
- Removable slug tray
- Two protractor gauges with pin locators for 45 degree settings
- T-slotted table with measuring scales set into the table
- Automatic blade gap clearance adjustment
- Blade suitable for cutting mild or stainless steel
- Adjustable back gauge for single side shearing
- Material hold downs with neoprene feet
- Includes Plexiglass Safety Shield
Fixed Angle Notcher Variable Angle Notcher Model FN 2004 VN 2006 Notch Size 7.87” x 7.87” 7.87” x 7.87” Capacity 10GA Mild Steel 1/4” Mild Steel Cutting Angle 90° 30°-140° Includes Plexiglass safety shield Plexiglass safety shield Electrics 575V 3PH 60Hz 575V 3PH 60Hz
