FIXED ANGLE NOTCHING MACHINE

Quantity:

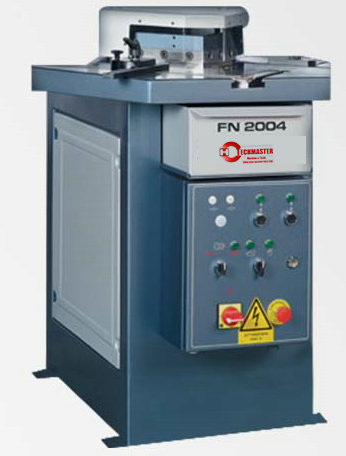

  • FN2004

 Hydraulic Corner Notchers with either variable angle (VN) or fixed angle (FN). These corner notchers have a heavy and rigid construction with a solid machined table and high chrome/high carbon blades. Both models come standard with automatic blade gap adjustment thereby eliminating operator set up errors.

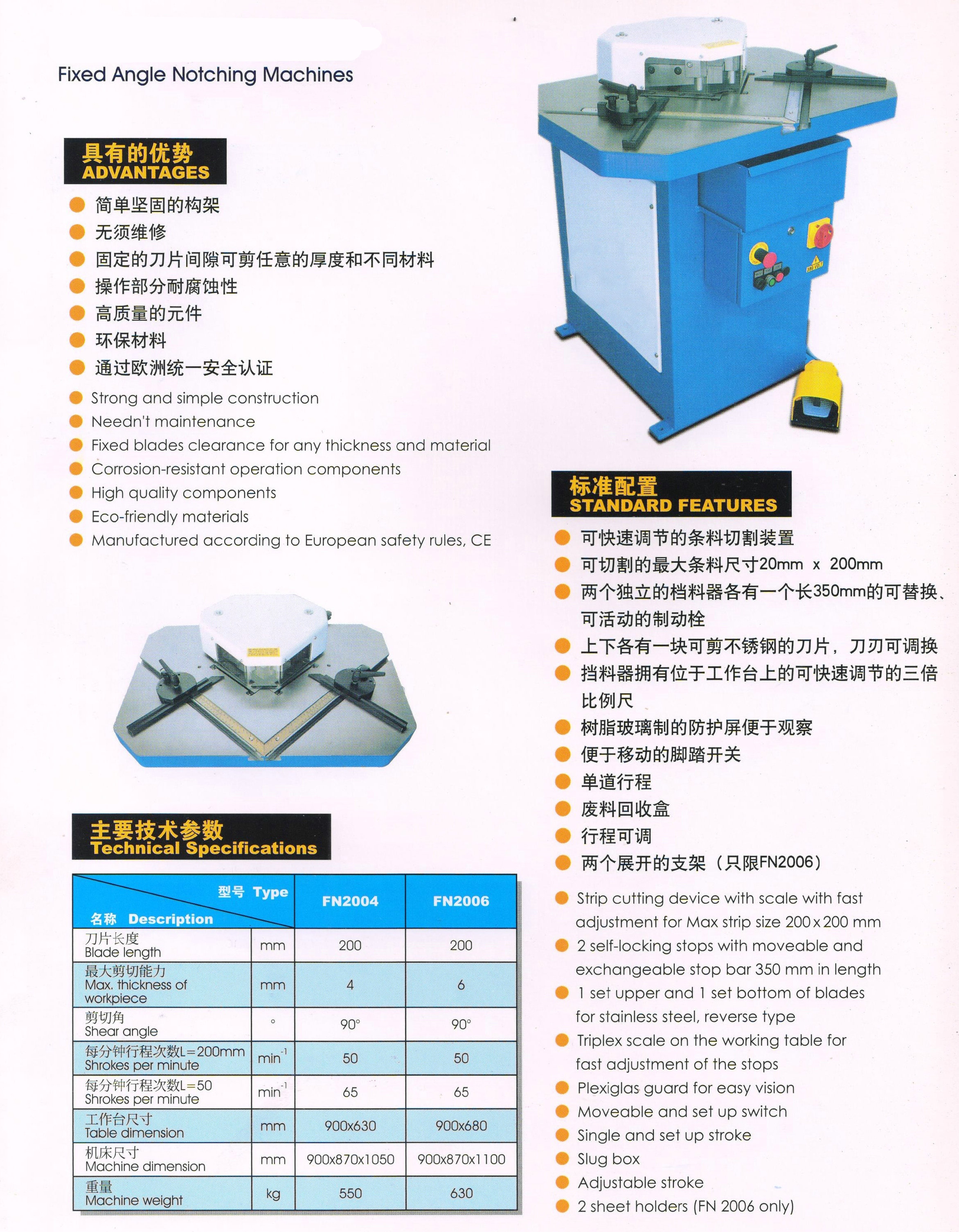

Fixed Angle Notcher Standard Equipment

  • Hand or foot operation
  • Removable slug tray
  • Two protractor gauges with pin locators for 45 degree settings
  • T-slotted table with measuring scales set into the table
  • Automatic blade gap clearance adjustment
  • Blade suitable for cutting mild or stainless steel
  • Adjustable back gauge for single side shearing
  • Material hold downs with neoprene feet
  • Includes Plexiglass Safety Shield

  Fixed Angle Notcher Variable Angle Notcher
 Model FN 2004 VN 2006
 Notch Size 7.87” x 7.87” 7.87” x 7.87”
Capacity 10GA Mild Steel 1/4” Mild Steel
Cutting Angle 90° 30°-140°
Includes  Plexiglass safety shield  Plexiglass safety shield
Electrics 575V 3PH 60Hz 575V 3PH 60Hz
