FKX6045
Quantity: Product Description

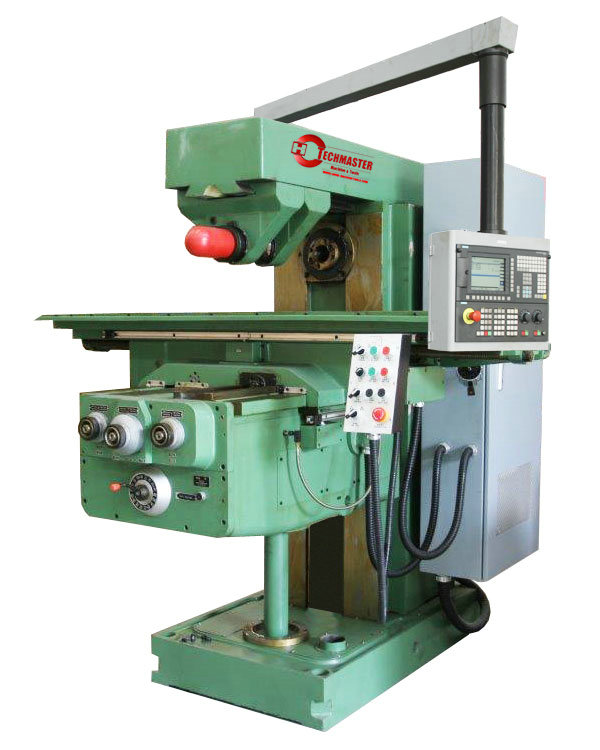

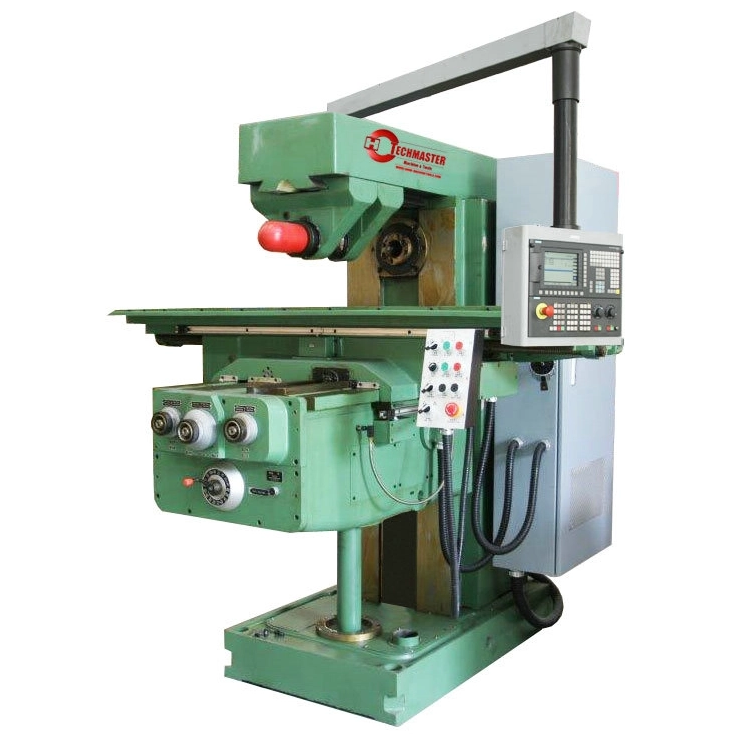

Heavy Duty Horizontal Knee-type Milling Machine
FX6045/FXK6045
F series heavy-duty knee-type milling machine is developed by absorbing the feature and technology of advanced European countries in the middle period of 1990s. It has strong loading capacity, large specification parameter, high rigidity and unprecedented structure precision, its quality is obtained according to several years' combination design or transformation design, the birth of this kind of product has made the dream of milling machine to pursue senior, high level knee-type milling machine come true. With optional accessories as dividing head, rotary table, machine vice, boring and facing milling head, milling chuck, etc. Its machining scope/capacity greatly enlarged. X6045/1: Digital readout(2 dimensional or 3 dimensional) is added to X6045 machine which can improve the machining accuracy and producing efficiency.
Can be equipped with Fanuc CNC system (FXK6045).Product Name: Horizontal Knee-type Milling Machine Product Type: FX6045 Work table area(width*length): 500*1800mm T-slots(number of slot-width*pitch): 6-18*63mm Work table max weight of workpiece: 1500Kg Max.stroke longitudinal/transversal/vertical(power-driven): 1320/345/600mm Max.stroke longitudinal/transversal/vertical(manual): 1330/360/630mm Distance from center line of horizontal spindle to table surface: 45-675mm Spindle motor power: 15Kw Spindle taper: XT50 Spindle speed range: 18 steps 35.5-1800r/min
