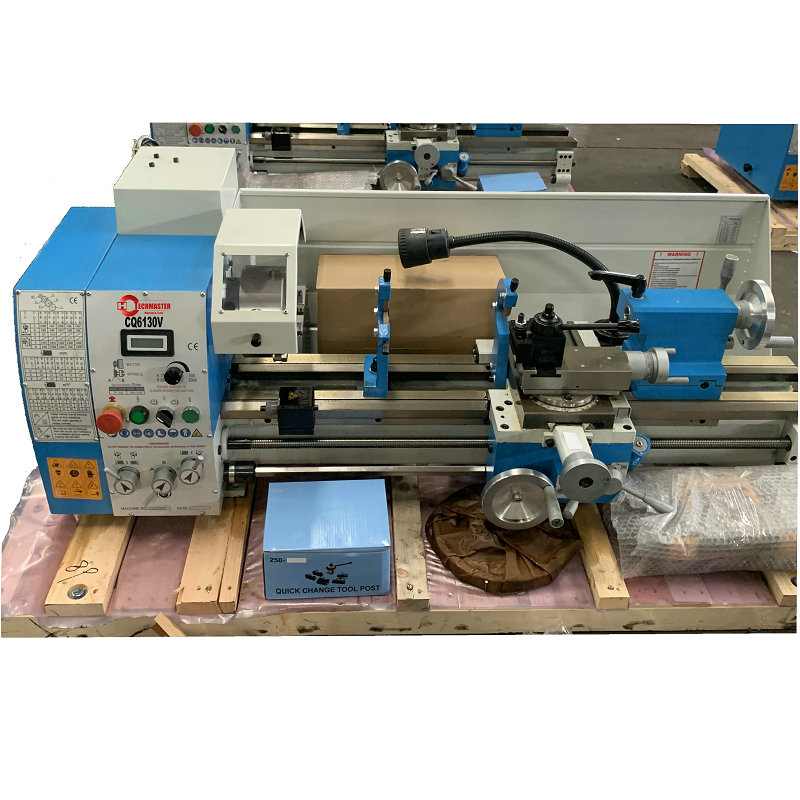

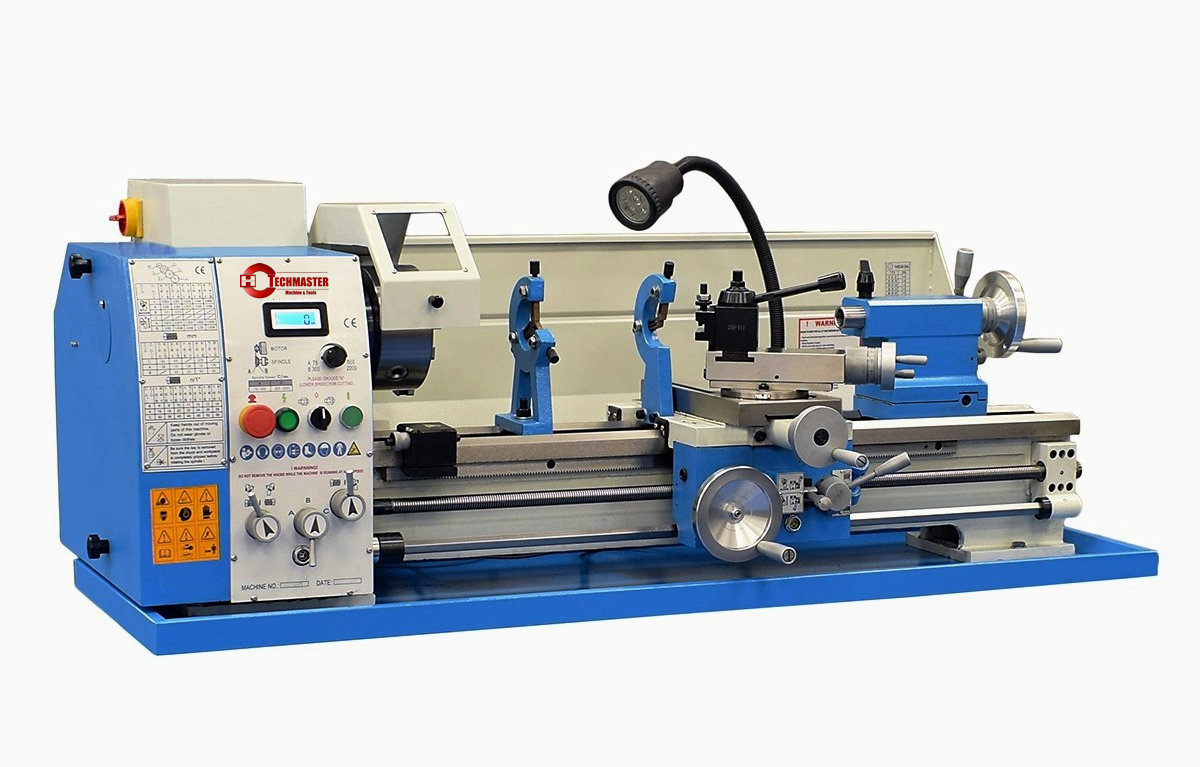

FREQUENCY BIG SPINDLE VARIO SPEED LATHE CQ6130V/750MM

Quantity:
  • CQ6130V/750MM

Product Description


FEATURES:
Smooth and steady feed gear box with gears in oil bath
Spindle of larger capacity taper of MT5 and bore of 38 .5mm
Double Vee-Bed way is induction hardened and precision ground
Strong power( FREUQNCY  motor with stepless speed controler,) allows high torque for turning at low speed
Spindle is supported by precision bearings
Longitudinal feed allows threading
Left or right hand threads cutting is provided
T- Slotted cross slide
Tailstock offset allows taper turning
Adjustable gibs for sliding ways
Magnetic safety switch with emergency stop
Combined switch for spindle forward/ reverse turning

STANDARD ACCESSORIES:
Digital speed indication
3 Jaw Chuck 160 mm,
Dead Centers MT4 and MT5
Change Gears Set,
Spray Guard
Chip Tray,
4-way tool post holde
Tool Box with Tools

OPTIONAL ACCESSORIES:
2-Axis Digital Readouts
Steady Rest,
Follow Rest
Face Plate Φ240 mm for D290V
Cabinet Stands,
Rolling Center MT3
4 Jaw Chuck with Flange Φ160 mm
Spindle Collet Chuck Holder ER32
Chuck Collet Set ER32- 18pcs, 3-20mm
Quick Change Tool Post Holder Set QTH-A
Indexable Carbide Turning Tool Set 12mm, 9pcs

Technical DataCQ6130V/750MM
Swing Over Bed 290 mm
Distance Between Centers 750 mm
Cener height 145mm
Swing over cross slide 180
Spindle Taper MT5
Spindle Bore 38.5 mm
Spindle Nose Camlock D1-4
Spindle Speed Variable70 -2000 rpm
Bed Width 180 mm
Top Slide Travel 70 mm
Cross Slide Travel 160 mm
Range of Auto-Longitudinal Feeds 0.08- 0.80mm/rev.
Rangeof Auto-Crossfeeds 0.01-0.10mm/rev
Rangeof MetricThreads 0.2- 3.5 mm
Rangeof InchThreads 8- 56 TPI
Tailstock Quill Travel 70 mm
Tailstock Quill Taper MT3
Motor Power 1.5KW / 230V/ 50 Hz
Net Wight 260Kg
Packing Size 750 x 700 x 1500 mm
