FREQUENCY CONVERSION BENCH DRILLING MACHINE ZWB4035A
Quantity: Vario gear drilling machine features stepless speed adjustment, automatic spindle feed and digital speed readout. In addition this model comes complete with a tiltable drill head to allow for a large variety of applications.

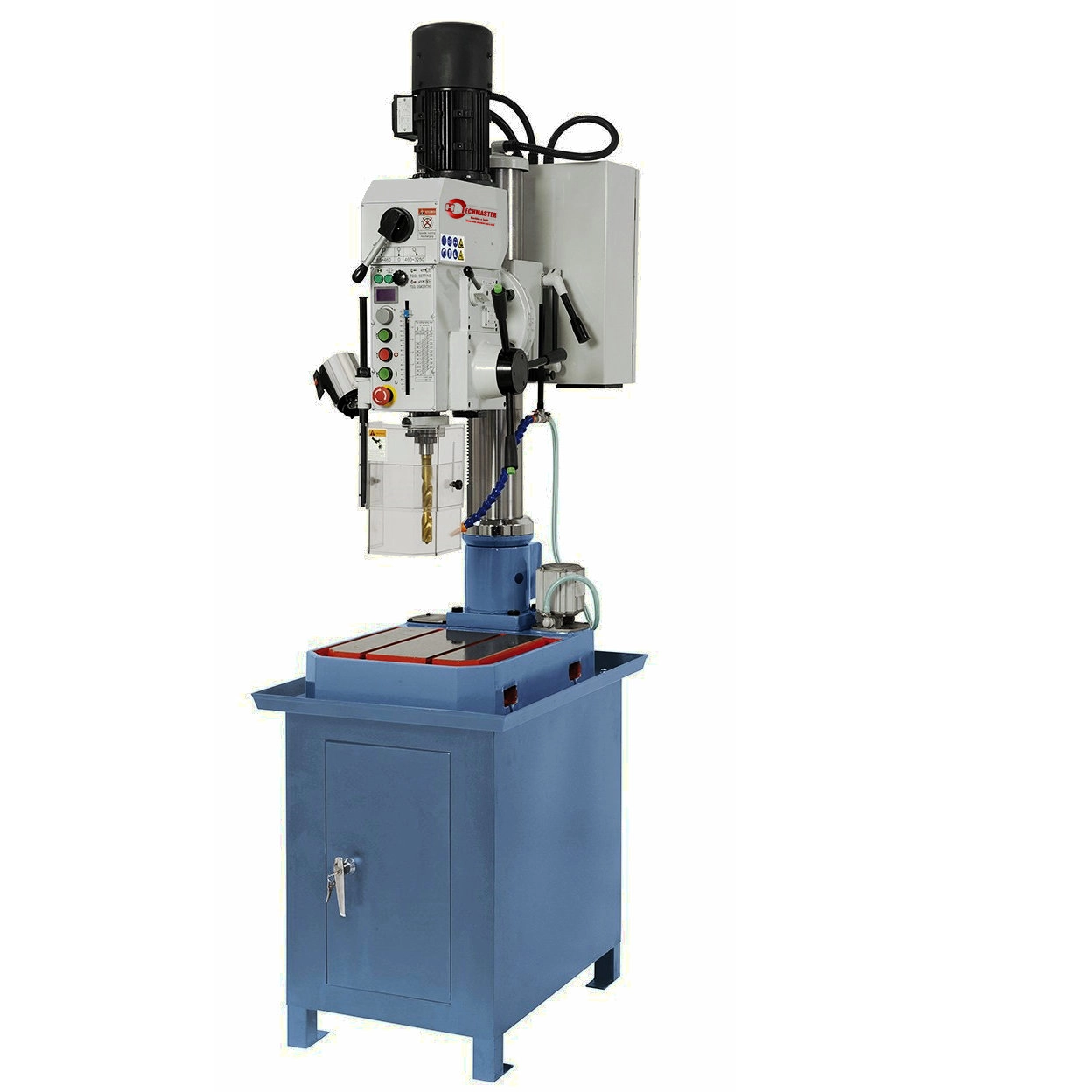

FREQUENCY VARIABLE SPEED BENCH DRILLING MACHINE ZWB4035A
Drilling capacity in steel
35 mm
Drilling capacity in cast iron
40 mm
Thread cutting max.
M24
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speed / 2 steps
65 - 460 rpm / 460 - 3250 rpm
Feed range
0,1 / 0,2 / 0,3 mm/rev.
Distance spindle to column
320 mm
Distance spindle to base
135 - 650 mm
Spindle stroke
160 mm
Column diameter
120 mm
Working surface of base
360 x 370 mm
T-slot size
14 mm
Motor power output S1 100%
1,5 kW
Motor power input S6 40%
2,2 kW
Machine dimension (W x D x H)
500 x 900 x 1660 mm
Weight approx.
300 kg
FEATURES
- Guaranteed concentricity ≤ 0.02 mm, measured at spindle

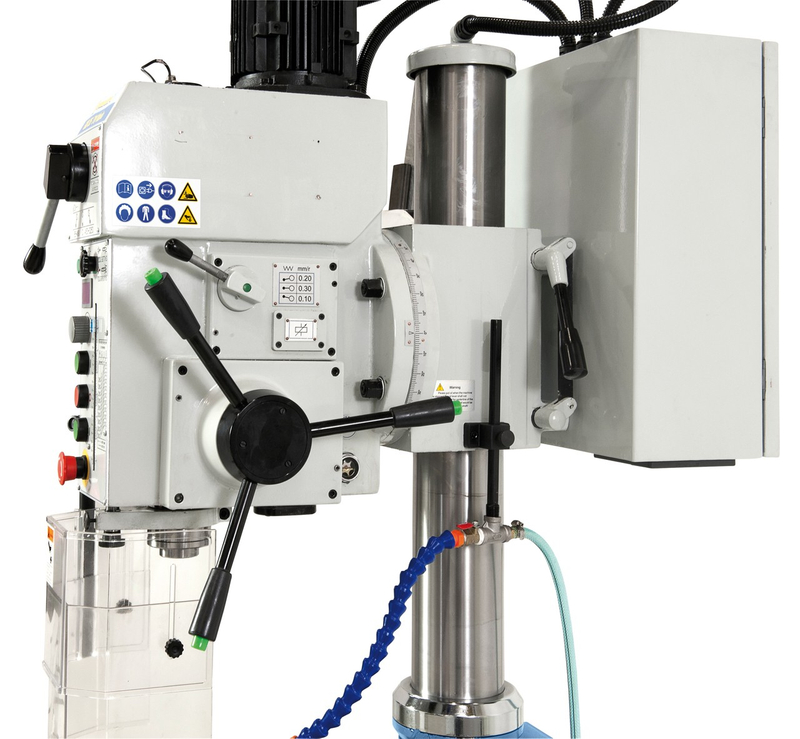

- Tiltable drill head -45° to +45° increases the range of applications significantly
- Automatic tool release device allows for fast tool change
- Precisely polished base plate features T-slots and integrated coolant pump
- Includes energy efficient, powerful LED machine lamp
- Transmission wheels – running in oil – ensure smooth operation
- Solid and polished steel column, designed for continuous operation
- Stepless speed adjustment – visible on digital diplay
Standard accessories:
- Drill chuck 1 – 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT4/3, MT4/2, MT3/1
- Coolant device
- Electromagnetic spindle feed
- Thread cutting device
- Automatic tool release device
- LED machine light
- Digital readout of speeds
- Initial filling with Shell Tellus 46
- Height adjustable protective cover
