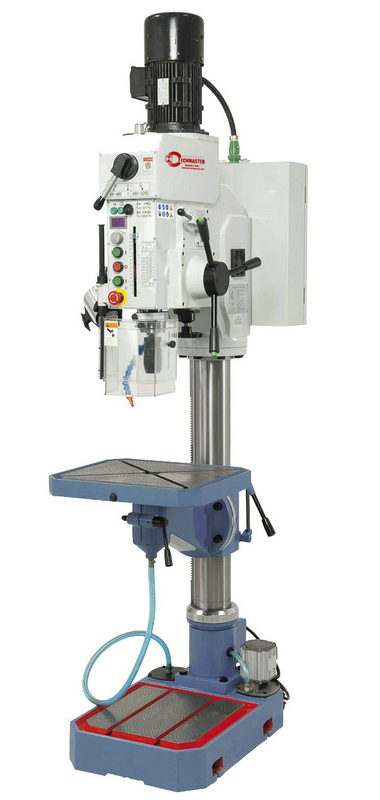

FREQUENCY CONVERSION BENCH DRILLING MACHINE ZWB5035A
Quantity: Vario is a heavy gear head drilling machine featuring stepless speed adjustment, automatic spindle feed and a digital display. This model is mainly used in repair shops and within engineering environments.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
35 mm
Drilling capacity in cast iron
40 mm
Thread cutting max.
M24
Drill chuck
1 - 16 mm / B 16
Morse taper
MT 4
Spindle speeds / 2 Steps
65 - 460 / 460 - 3250 rpm
Feed range
0,1 / 0,2 / 0,3 mm/rev
Distance spindle to column
320 mm
Distance spindle to table max.
580 mm
Distance spindle to base
1145 mm
Spindle stroke
160 mm
Column diameter
120 mm
Table size / T-Slot size
500 x 420 mm / 14 mm
Work surface base
365 x 370 mm
Motor power output S1 100%
1,5 kW
Motor power input S6 40%
2,2 kW
Machine dimensions (W x D x H)
600 x 870 x 2170 mm
Weight approx.
375 kg
FEATURES
- Stepless speed settings allows optimal adjustment of cutting speed
- Automatic tool release device and thread cutting device come standard
- Electromechanic drill feed, adjustable from 0,1 - 0,3 mm/rev.
- Solid, grey cast iron table featues a tilt- and turnable support
- T-slot in machine base allow clamping of oversize workpieces
- Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
- Hardened, polished gear wheels allow for smooth operation
- Adjustable drill depth stop includes scale for easy readout
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve
- Coolant pump
- Thread cutting device
- Electromagnetic spindle feed
- Automatic tool release device
- LED machine light
- Initial filling with Shell Tellus 46
- Digital readout of speeds
- Height adjustable protective cover
