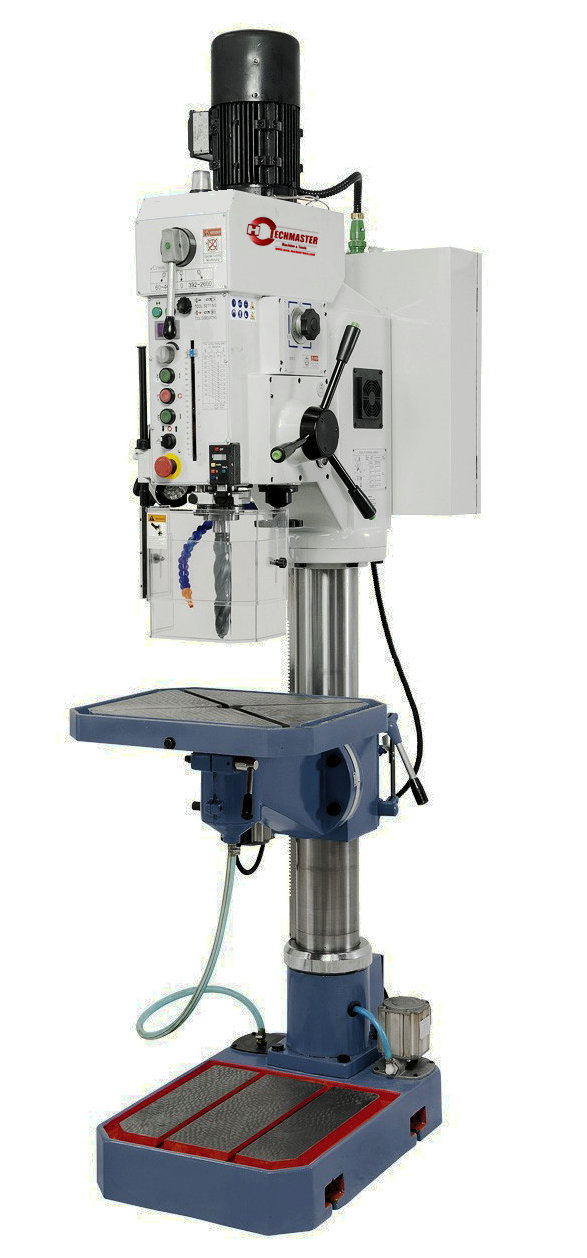

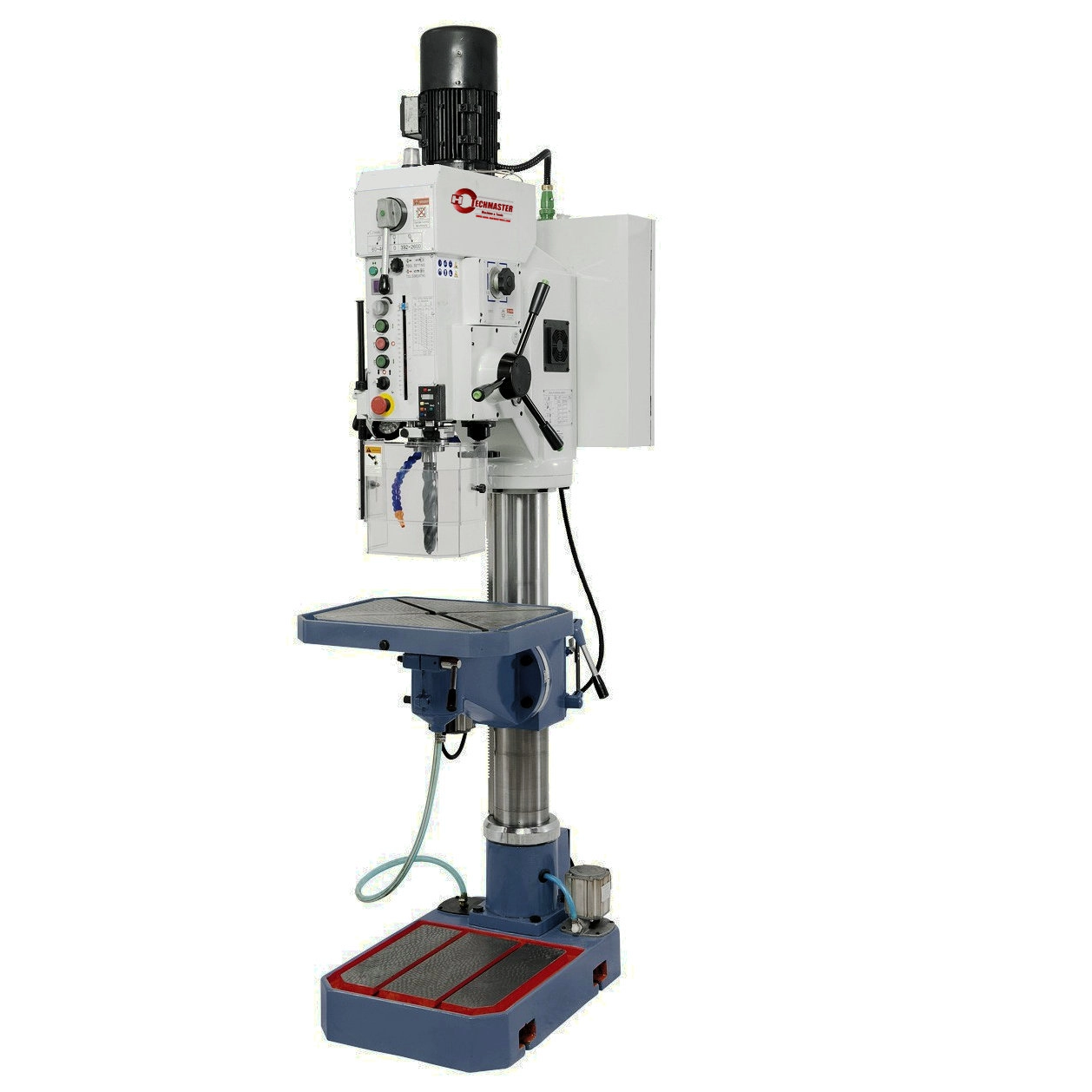

FREQUENCY CONVERSION BENCH DRILLING MACHINE ZWB5040A
Quantity: Vario gear head drilling machine is equipped with a motorized table stroke. Further features include the digital display for drill depth and speed, the electromagnetic spindle feed and the stepless speed adjustment
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
40 mm
Drilling capacity in cast iron
45 mm
Thread cutting max.
M32
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds / 2 Steps
60 - 400 / 392 - 2600 rpm
Feed range
0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column
340 mm
Distance spindle to table max.
610 mm
Distance spindle to base
1195 mm
Spindle stroke
190 mm
Column diameter
140 mm
Table size / T-Slot size
540 x 440 mm / 14 mm
Working surface of base
400 x 410 mm
Motor power
2,0 kW
Machine dimensions (W x D x H)
700 x 950 x 2340 mm
Weight approx.
495 kg
FEATURES
- Stepless peed adjustment, easy readout on digital display
- Motorized table stroke reduces downtime significantly
- Choose between 4 automatic spindle feeds, set by electromagnetic clutch
- Table turns around the column horizontally and tilts 45° to both sides
- Surface treated machine base (400 x 410 mm) with integrated coolant pump
- Guaranteed concetricity of ≤ 0,02 mm measured at spindle
- Hardened, polished gear wheels guarantee smooth operation
- Automatic tool release device allows quick tool change
- Powerful drive motor designed for longer use
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2
- Motoric table stroke
- Coolant device
- Electromagnetic spindle feed
- Thread cutting device
- Automatic tool release device
- LED machine light
- Initial filling with Shell Tellus 46
- Digital speed indication
- Digital drill depth indication
- Height adjustable protective cover
