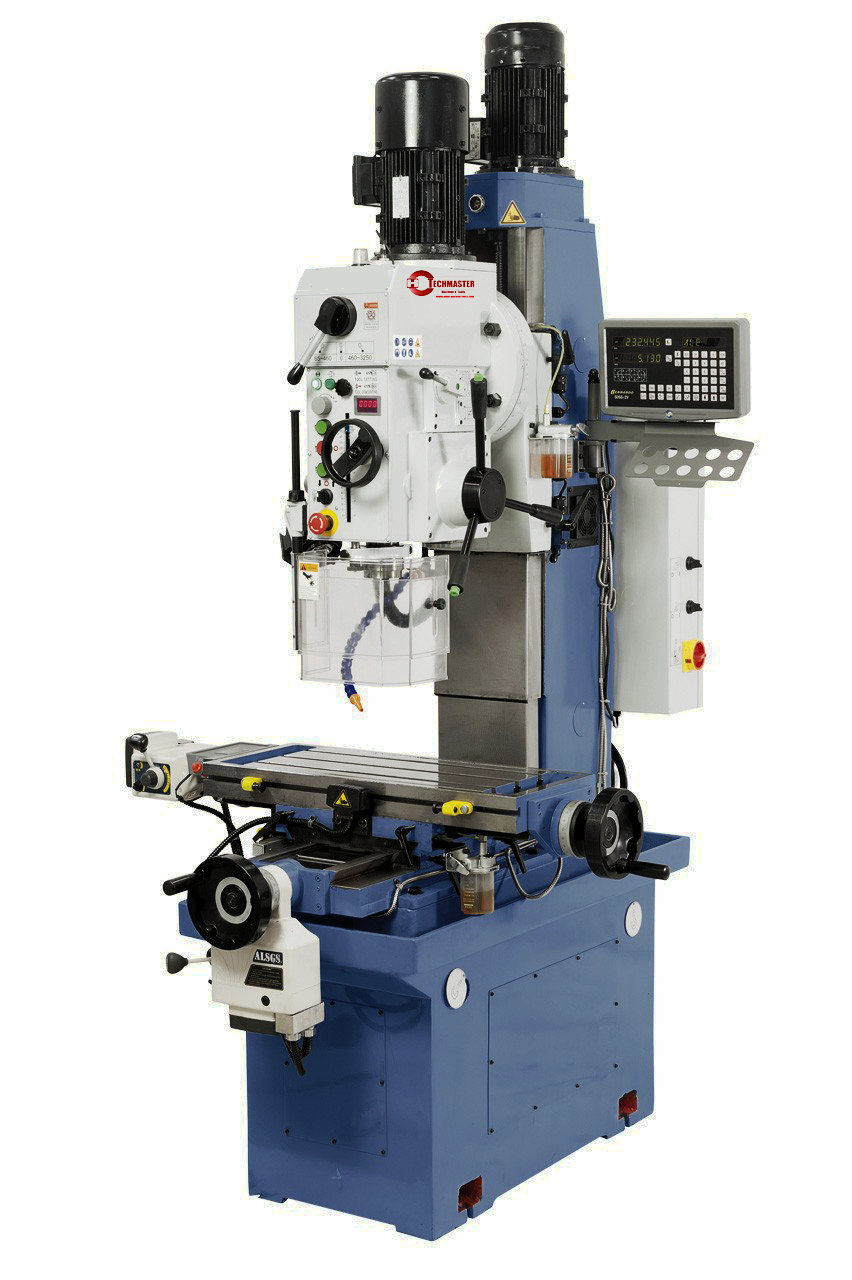

FREQUENCY CONVERSION BENCH DRILLING MACHINE ZX7135
Quantity: solid drilling and milling machine is best suitable for drilling, milling and countersinking. A large variety of applications and the extensive range of standard equipment makes this machine ideal for model makers, amateurs and repair shops.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
35 mm
Thread cutting max.
M22
Distance spindle to column
335 mm
Spindle speed, stepless
(2) 65 – 460 / 460 – 3250 rpm
Spindle taper
MT 4
Spindle stroke
165 mm
Spindle feed
0,1 / 0,2 / 0,3 mm/rev.
Spindle diameter
62 mm
Table size / T-slot size
700 x 280 mm / 14 mm
Distance spindle to table
150 – 540 mm
Travel (x / y)
320 / 270 mm
Mill head tilting range
- 50° to +50°
Height adjustment of mill head
390 mm
Motor power output S1 100%
1,5 kW (400 V)
Motor power input S6 40%
2,2 kW (400 V)
Machine dimension (W x D x H)
1200 x 1450 x 2275 mm
Weight approx.
760 kg
- Automatic table feed with rapid feed allows for convenient table adjustment in x- and y-axis
- Variable speed adjustment via frequency inverter with optimal torque
- Large variety of applications, such as slotting, faces milling, reboring etc.
- Complete with position display in 2 axis (x and y) raises productivity
- Automatic spindle feed of 0.1/ 0.2/ 0.3 mm/rev
- Mill head tilts to both sides for angle boring, milling of chamfers etc.
- Extensive range of accessories comes standard
- Automatic spindle feed and thread cutting device are included
- Polished gear wheels, saturated in oil ensure smooth operation
- Lifting motor allows for height adjustment of mill head via adjustable dovetail guiding
Standard accessories:
- 2-axis digital readout
- Automatic spindle feed
- Thread cutting device
- Digital speed indication
- Frequency inverter
- Lifting motor for mill head
- Central lubrication
- Drill chuck 1 – 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4/3, MT 4/2, MT 3/1
- Taper shell end mill holder MT 4/27 mm
- LED machine light
- Coolant device
- Height adjustable protective cover
- Power feed for x- and y-axis incl. rapid feed
solid drilling and milling machine is best suitable for drilling, milling and countersinking. A large variety of applications and the extensive range of standard equipment makes this machine ideal for model makers, amateurs and repair shops.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
35 mm
Thread cutting max.
M22
Distance spindle to column
335 mm
Spindle speed, stepless
(2) 65 – 460 / 460 – 3250 rpm
Spindle taper
MT 4
Spindle stroke
165 mm
Spindle feed
0,1 / 0,2 / 0,3 mm/rev.
Spindle diameter
62 mm
Table size / T-slot size
700 x 280 mm / 14 mm
Distance spindle to table
150 – 540 mm
Travel (x / y)
320 / 270 mm
Mill head tilting range
- 50° to +50°
Height adjustment of mill head
390 mm
Motor power output S1 100%
1,5 kW (400 V)
Motor power input S6 40%
2,2 kW (400 V)
Machine dimension (W x D x H)
1200 x 1450 x 2275 mm
Weight approx.
760 kg
- Automatic table feed with rapid feed allows for convenient table adjustment in x- and y-axis
- Variable speed adjustment via frequency inverter with optimal torque
- Large variety of applications, such as slotting, faces milling, reboring etc.
- Complete with position display in 2 axis (x and y) raises productivity
- Automatic spindle feed of 0.1/ 0.2/ 0.3 mm/rev
- Mill head tilts to both sides for angle boring, milling of chamfers etc.
- Extensive range of accessories comes standard
- Automatic spindle feed and thread cutting device are included
- Polished gear wheels, saturated in oil ensure smooth operation
- Lifting motor allows for height adjustment of mill head via adjustable dovetail guiding
Standard accessories:
- 2-axis digital readout
- Automatic spindle feed
- Thread cutting device
- Digital speed indication
- Frequency inverter
- Lifting motor for mill head
- Central lubrication
- Drill chuck 1 – 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4/3, MT 4/2, MT 3/1
- Taper shell end mill holder MT 4/27 mm
- LED machine light
- Coolant device
- Height adjustable protective cover
- Power feed for x- and y-axis incl. rapid feed
