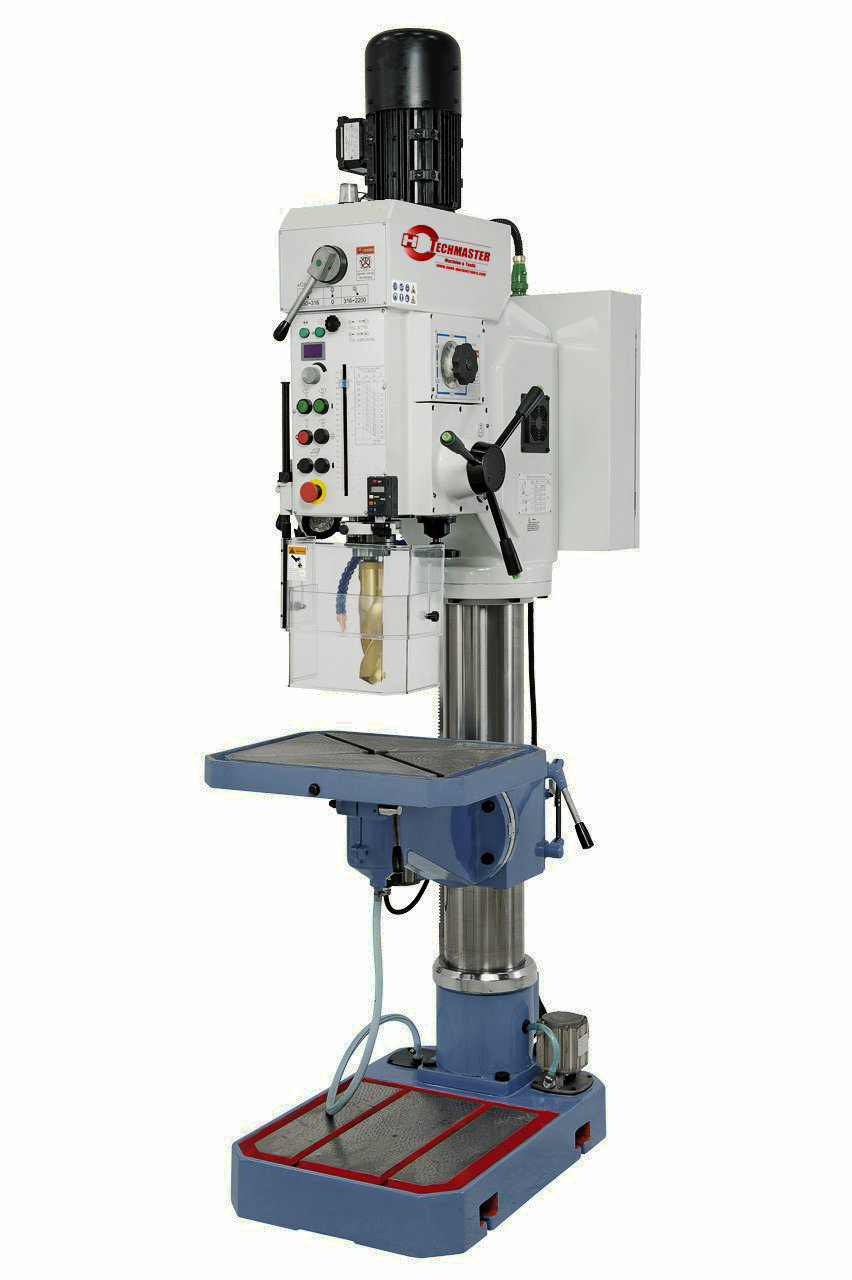

FREQUENCY CONVERSION DRILLING MACHINE EUROPE STYLE ZWB5050A
Quantity: Vario column drilling machine comes with stepless speed settings, allowing ideal adjustment of cutting speed to each workpiece. The solid, large construction of this model attracts primarily professional engineers as well at the machine constructions or in workshops.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
50 mm
Drilling capacity in cast iron
60 mm
Thread cutting max.
M42
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds / 2 Steps
50 - 310 / 310 - 2200 rpm
Feed range
0,8 / 0,12 / 0,17 / 0,24 / 0,35 / 0,50 mm/rev
Distance spindle to column
360 mm
Distance spindle to table max.
575 mm
Distance spindle to base
1165 mm
Spindle stroke
200 mm
Column diameter
180 mm
Table size / T-Slot size
580 x 460 mm / 14 mm
Working surface of base
435 x 445 mm
Motor power
3,0 kW
Machine dimensions (W x D x H)
750 x 950 x 2380 mm
Weight approx.
575 kg
FEATURES
- Stepless peed adjustment comes standard, easy readout on digital display
- Motorized table height adjustment included
- 6 automatic drill feeds are controlled by electromagnetic clutch
- Solid, grey cast iron, surface treated drill table can be tilted form -45° to +45°
- Polished base features T-slots for clamping of larger workpieces
- Guaranteed concentricity of ≤ 0,02 mm, measured at spindle
- Automatic tools release device and tapping device as standard equipment
- Smooth gear wheels, in oil bath, allow for a smooth run
- Solid, polished steel column, heavy-duty design
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2
- Motoric table stroke
- Coolant device
- Electromagnetic spindle feed
- Automatic tool release device
- Thread cutting device
- LED machine light
- Initial filling with Shell Tellus 46
- Digital speed indication
- Digital drill depth indication
- Height adjustable protective cover
