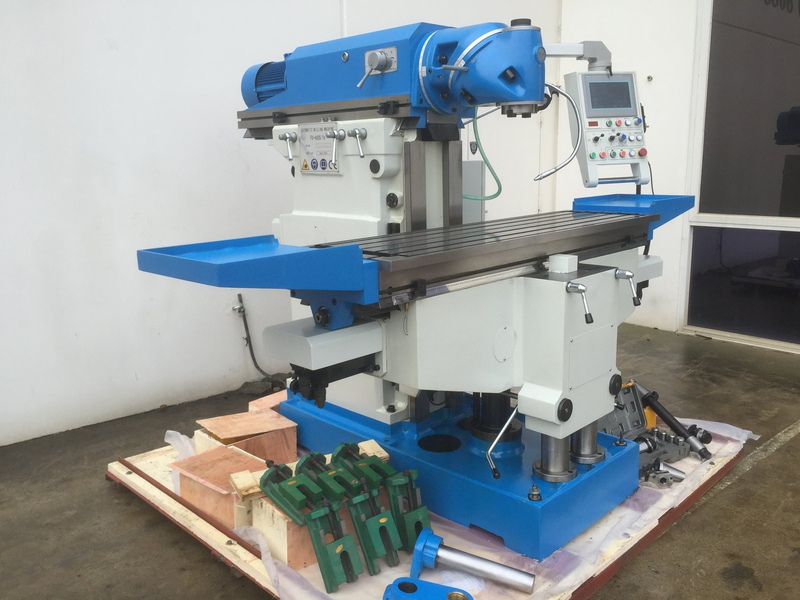

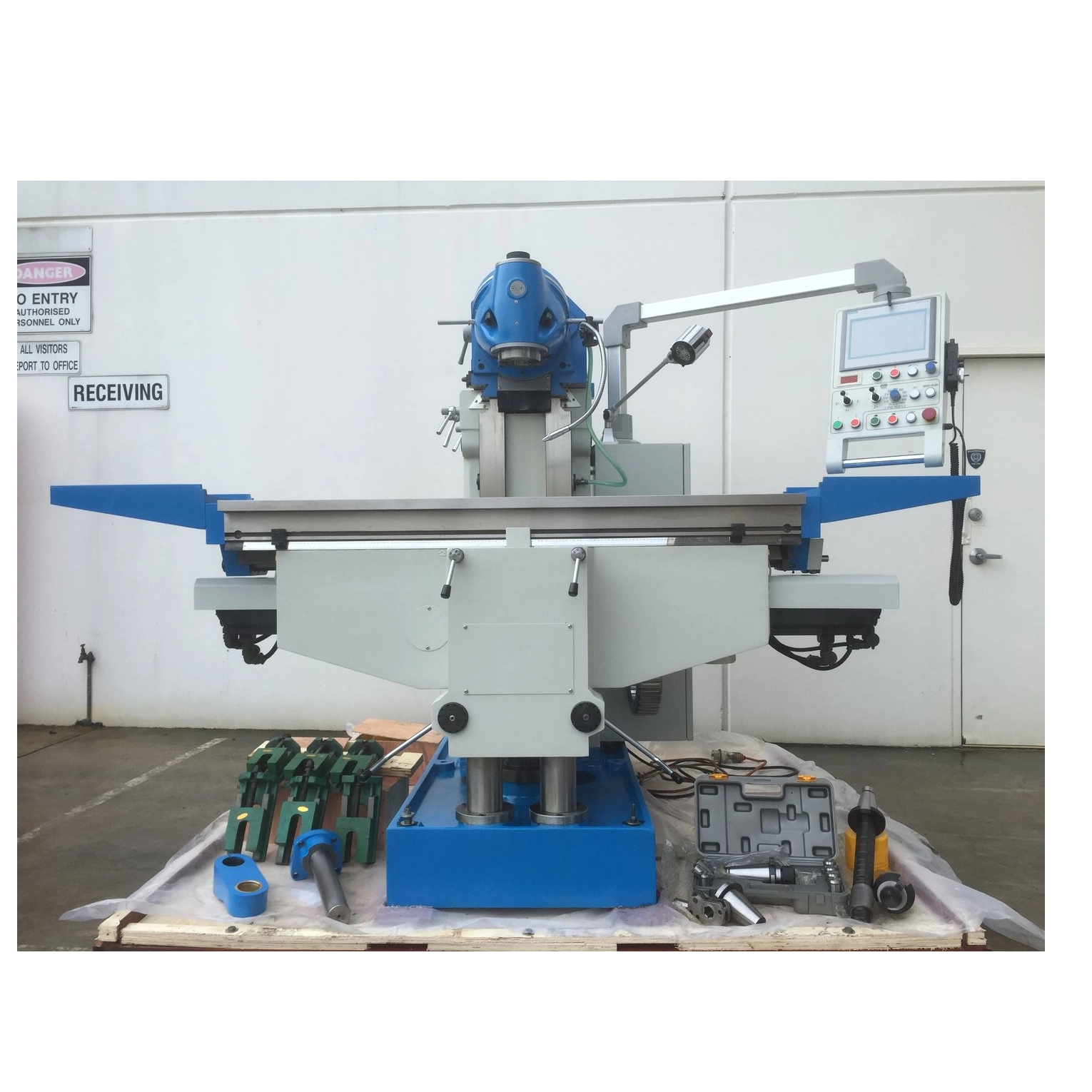

FU-460s-16. Universal Mill 1635mm x 460mm Table, ISO 50 Vertical Spindle, 3 Axis DRO
Quantity: -
FU-460s-16. Universal Mill 1635mm x 460mm Table, ISO 50 Vertical Spindle, 3 Axis DRO
Description
Heavy duty universal mill offering precision servo operated ball screw drive operating in X, Y & Z axis. Combining and extra large working area and large travels to suit, we are confident this will cover your milling applications. Quality build and features this Mill offers muscle combined with built-in durability for years of service. Turcite - B coated guides, X axis dovetail guides, spindle brakes, pre loaded ball screws with zero backlash to name a few features. This is the machine to have for years of accurate, trouble-free operation.
Other models offering 1600mm x 500mm & 2000mm x 700mm Tables also available
Features
❚ infinitely variable feed speeds controlled via DC servo.
❚ rapid feed on all 3 axis
❚ heavy duty ribbed machine frame ensures maximum rigidity
❚ rigid, torsion proof powered overarm

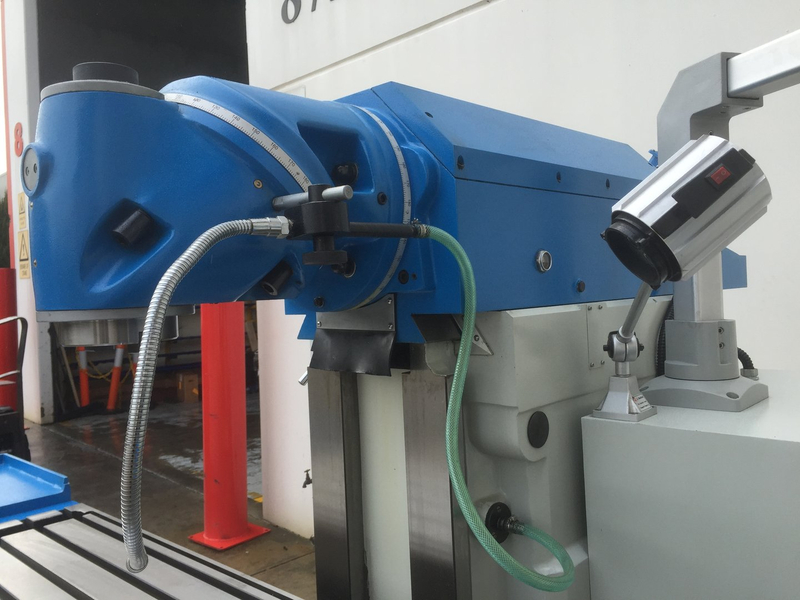

❚ universal by-rotative milling head
❚ safety interlocks to prevent simultaneous use of feed and table clamping
❚ ergonomic pendant type control console for easy access
❚ electric spindle brake
❚ automatic lubrication system
❚ suds pump and coolant system
❚ halogen work light
❚ multifunction 3 axis DRO
❚ splash guard / chip tray
❚ tool kit supplied
❚ operation manual
Technical Data - Snap Shot

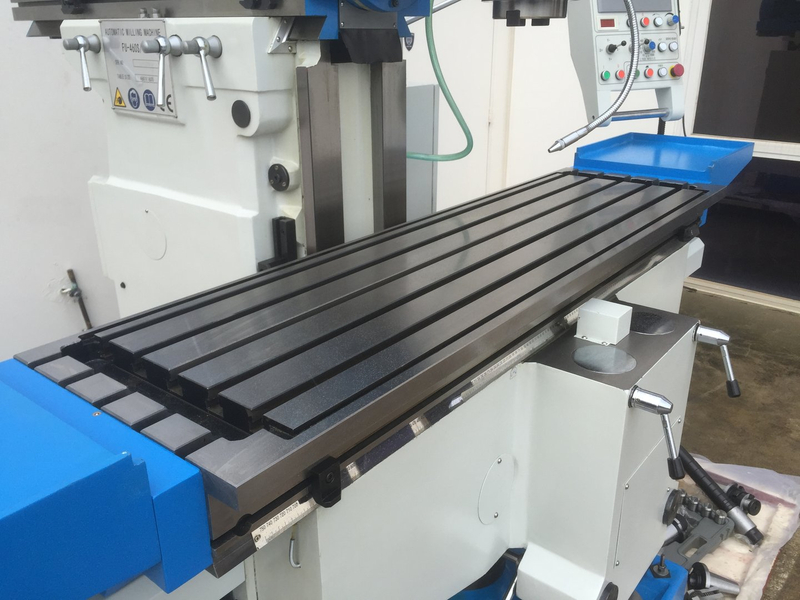

❚table size - 1635mm x 460mm
❚table travel – 1300mm x 470mm
❚distance between T-slot – 80mm
❚T-slot size – 18mm (5 off)
❚X / Y / Z travel - 1300mm/ 650mm / 450mm
❚head type – universal
❚universal head spindle fixture - ISO / INT-50
❚operating speeds - 53 ~ 1800
❚distance spindle to table – 40mm ~ 510mm
❚distance spindle to column – 70mm ~ 670mm
❚ram traverse travel - 600mm
❚motor capacity - 7.5Kw x 240Volt
❚shipping dimensions - 2000mm x 2100mm x 2200mm
❚approx weight: 3500kg
Includes
❚ 3 Axis digital readout system
❚ safety cutter guard
❚ swarf tray
❚ coolant system
❚ halogen lampDescription
