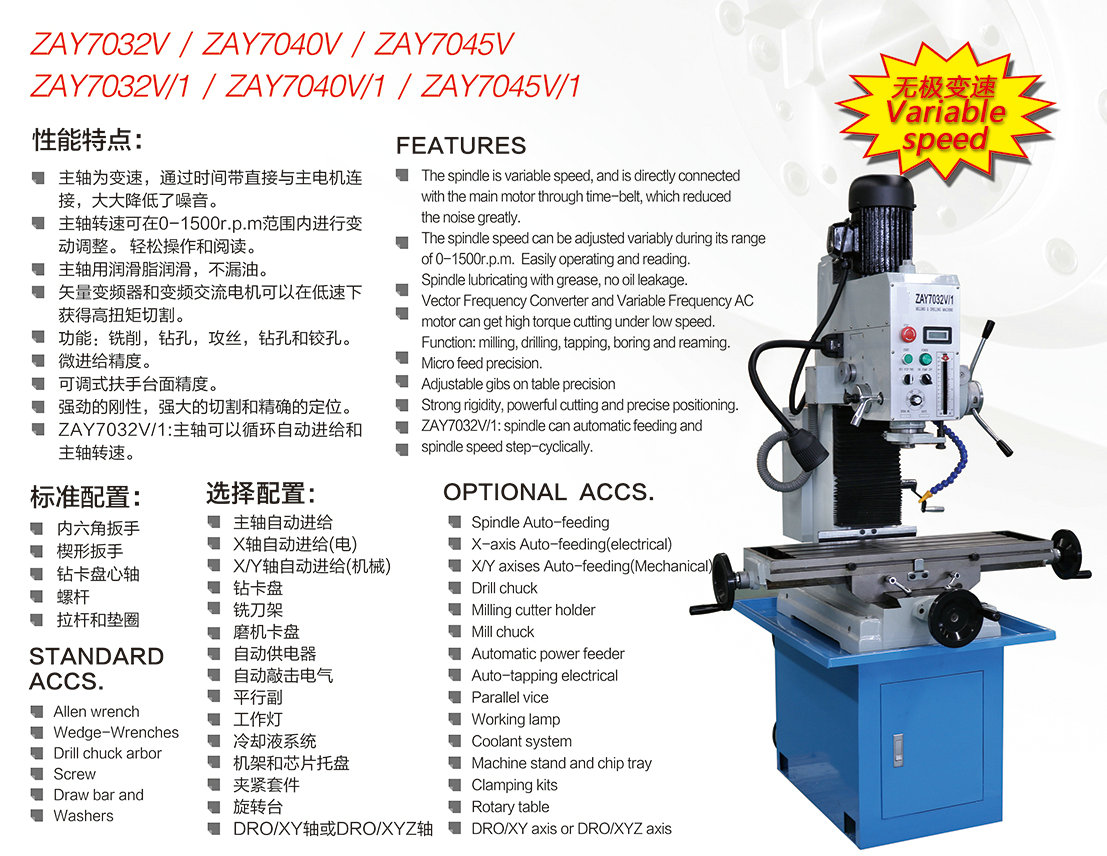

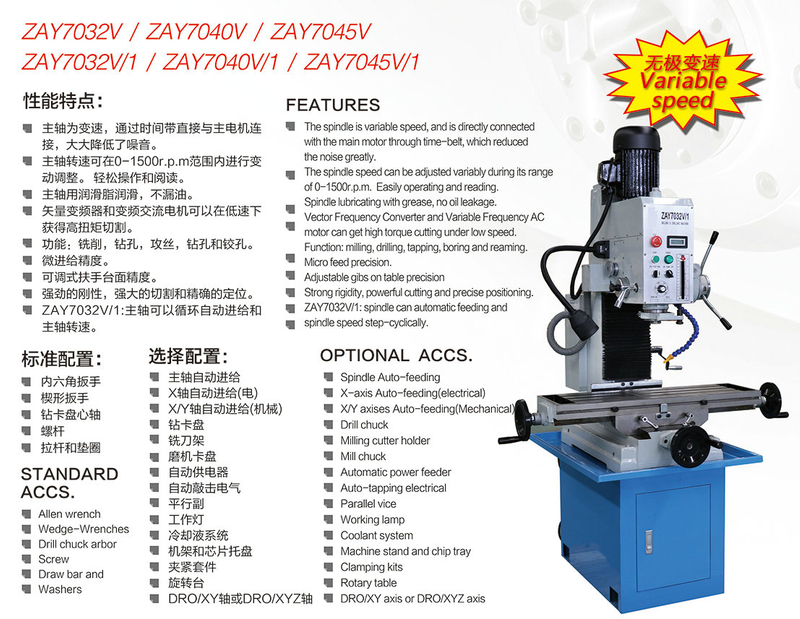

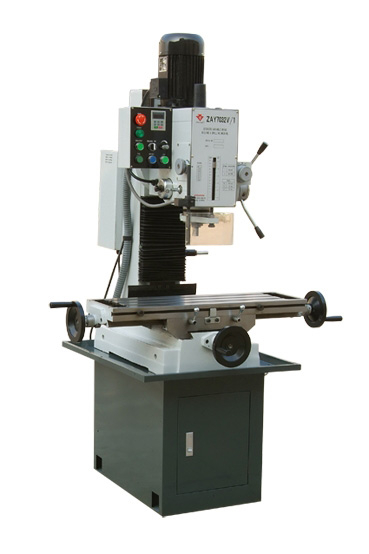

FULLY INDUSTRIAL DRILLING AND MILLING MACHINE VARIO SPEED ZAY7032V-ZAY7040V-ZAY7045V
Quantity: -
ZAY7032V-ZXAY7040V-ZAY7045V

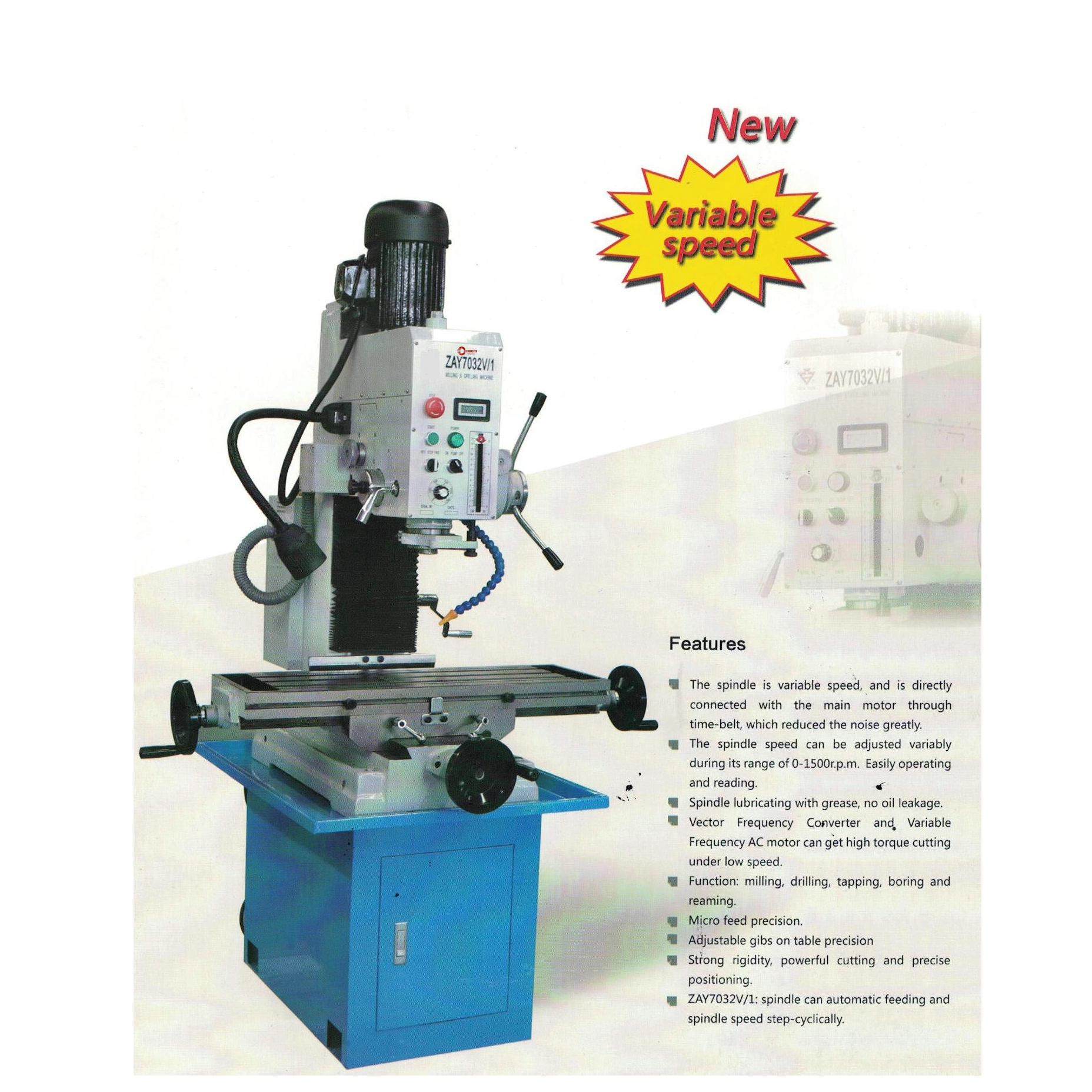

The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system

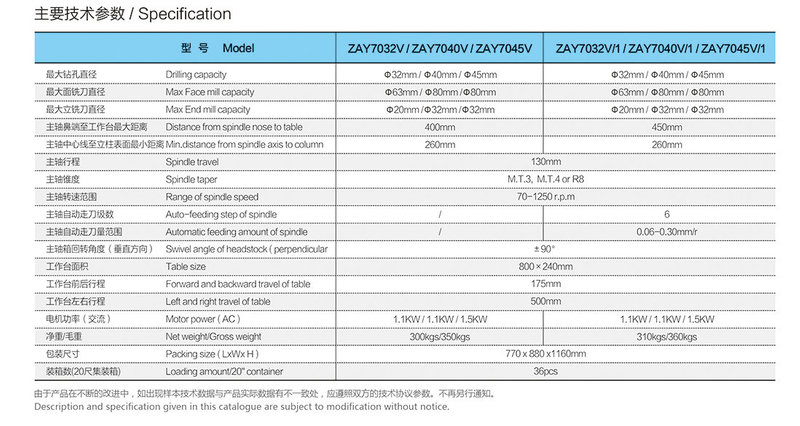

Product main technical Specifications:ITEM ZAY7032V ZAY7040V ZAY7045V Max.drilling capacity 32mm 40mm 45mm Max Face mill capacity 63mm 80mm 80mm Max End mill capacity 20mm 32mm 32mm Distance from spindle nose to table 450mm 450mm 450mm Min.distance from spindle axis to column 260mm 260mm 260mm Spindle travel 130mm 130mm 130mm Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8 Range of spindle speed(2 steps) 100-530,530-2800r.p.m, 100-530,530-2800r.p.m, 100-530,530-2800r.p.m, Auto-feeding step of spindle 6 6 6 Automatic feeding amount of spindle 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r Swivel angle of headstock (perpendicular) ±90° ±90° ±90° Table size 800×240mm 800×240mm 800×240mm Forward and backward travel of table 175mm 175mm 175mm Left and right travel of table 500mm 500mm 500mm Motor power(AC) 1.1KW 1.1KW 1.5KW Voltage/Frequency 110V or 220V 110V or 220V 110V or 220V Net weight/Gross weight 320kg/370kg 323kg/373kg 325kg/375kg Packing size 770×880×1160mm 770×880×1160mm 770×880×1160mm The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical Specifications:ITEM ZAY7032V ZAY7040V ZAY7045V Max.drilling capacity 32mm 40mm 45mm Max Face mill capacity 63mm 80mm 80mm Max End mill capacity 20mm 32mm 32mm Distance from spindle nose to table 450mm 450mm 450mm Min.distance from spindle axis to column 260mm 260mm 260mm Spindle travel 130mm 130mm 130mm Spindle taper M.T.3 or R8 M.T.4 or R8 M.T.4 or R8 Range of spindle speed(2 steps) 100-530,530-2800r.p.m, 100-530,530-2800r.p.m, 100-530,530-2800r.p.m, Auto-feeding step of spindle 6 6 6 Automatic feeding amount of spindle 0.06-0.30mm/r 0.06-0.30mm/r 0.06-0.30mm/r Swivel angle of headstock (perpendicular) ±90° ±90° ±90° Table size 800×240mm 800×240mm 800×240mm Forward and backward travel of table 175mm 175mm 175mm Left and right travel of table 500mm 500mm 500mm Motor power(AC) 1.1KW 1.1KW 1.5KW Voltage/Frequency 110V or 220V 110V or 220V 110V or 220V Net weight/Gross weight 320kg/370kg 323kg/373kg 325kg/375kg Packing size 770×880×1160mm 770×880×1160mm 770×880×1160mm
