| Quantity: | |
|---|---|

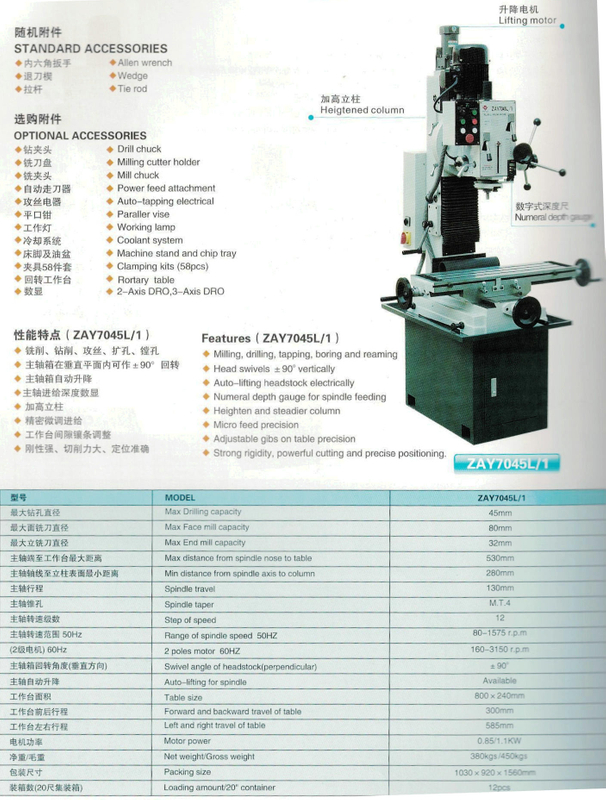

The main performance characteristics:
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Auto-lifting headstock electrically
Numeral depth gauge for spindle feeding
Heighten and steadier column
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Standard accessories:
Allen wrench
Drift
Spanner
Drill chuck rod
Screw-driver
Draw bar and gasket
Optional accessories:
Stand
Oil basin
Power feed attachment
Machine vice
Drill chuck
Milling cutter holder
Reducing sleeve
Mill chuck
Boring rod
Tapping electrical system
Coolant system
Product main technical Specifications:
| ITEM | ZAY7045L/1 | ZAY7045AFG | ZAY7045AFG/1 |
| Max Drilling capacity | 45mm | 45mm | 45mm |
| Max Face mill capacity | 80mm | 80mm | 80mm |
| Max End mill capacity | 32mm | 32mm | 32mm |
| Max distance from spindle nose to table | 530mm | 425mm | 425mm |
| Min distance from spindle axis to column | 280mm | 279mm | 279mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.4 | M.T.4 | M.T.4 |
| Step of speed | 12 | 6 | 6 |
| Range of spindle speed 50HZ | 80-1575 r.p.m | 80-1250 r.p.m | 90-1600 r.p.m |
| 2 poles motor 60HZ | 160-3150 r.p.m | 100-1500 r.p.m | 110-1920 r.p.m |
| Auto-feeding step of spindle | / | 6 | 3 |
| Auto-feeding range of spindle | / | 0.05-0.35mm/r | 0.12 0.18 0.025 |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Auto-lifting for spindle (As customer's requirement) | Auto-lifting for spindle | / | / |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 300mm | 205mm | 205mm |
| Left and right travel of table | 585mm | 585mm | 585mm |
| Motor power | 0.85/1.1KW | 1.5KW | 1.5KW |
| Net weight/Gross weight | 380kg/450kg | 380kg/420kg | 330kg/380kg |
| Packing size | 1030×920×1560mm | 770×880×1160mm | 770×880×1160mm |
