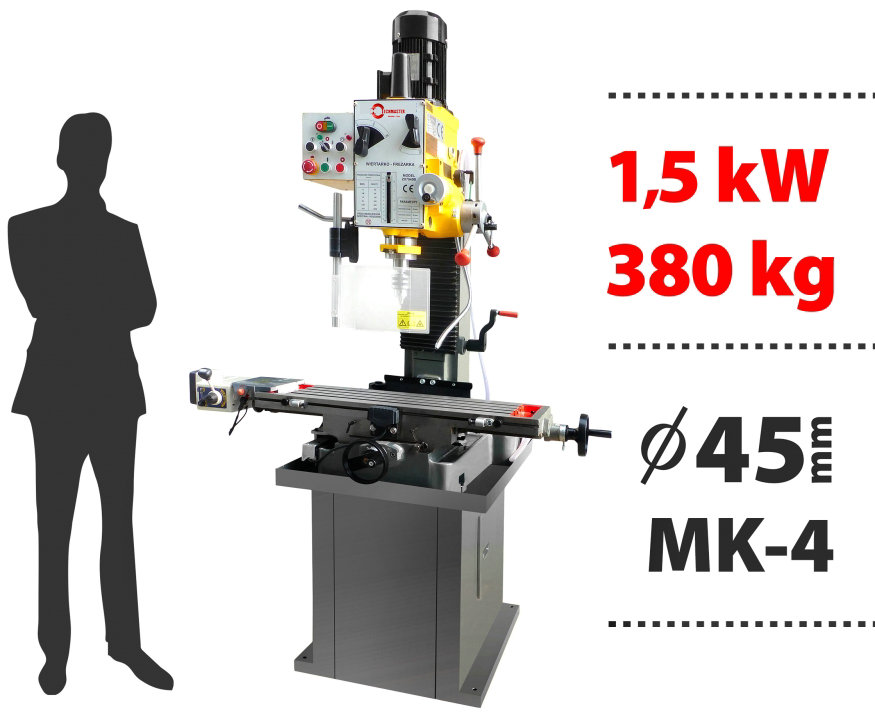

FULLY INDUSTRIAL DRILLING MACHINE Gear Head Auto - Feed Drilling & Milling Machine ZX 7045B
Quantity: -
7045B
Characters:
The machine spindle can auto-feeding, micro-feeding and hand-feeding.
Spindle speed change and feeding speed change easiness.
This machine use gear driving system and it is driving moment is strong enough to drilling, reaming and milling at all kinds materials.
The motor was driving by gear which overcome
the short coming of belt driving.
The working scope is large enough for spindle head not only up and down.
Machine with coolant system.
Technical data:
MODEL
ZX7045B
Spindle taper
MT 4

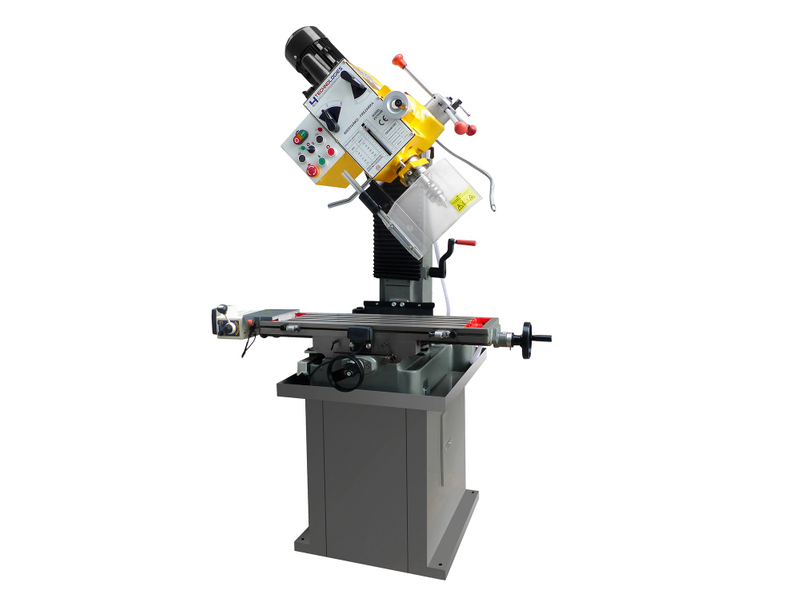

Swivel headstock
45 °
Max.Drilling capacity
45 mm
Diameter of vertical milling
28 mm
Max. face mill capacity
80 mm
Spindle feeds
0.12, 0.18, 0.25 mm / r
Distance spindle axis to column generating line
260 mm
Max.Distance spindle nose to table
475 mm
Spindle travel
110 mm
Dimension of worktable surface
820 x 240 mm
Table travel
540 x 170 mm
Spindle speeds range
50-1250 r / min (6 speeds)
Motor
1,5 kW
Voltage
230 V
Weight
350 kg
Packing dimension
860 x 740 x 1160 mm
Standart accessories
Reducer sleeve
MT4/MT3
MT3/MT2
Drill chuck 3-16mm/B18
Spindle chuck MT4/B18
