Quality Machine Tools

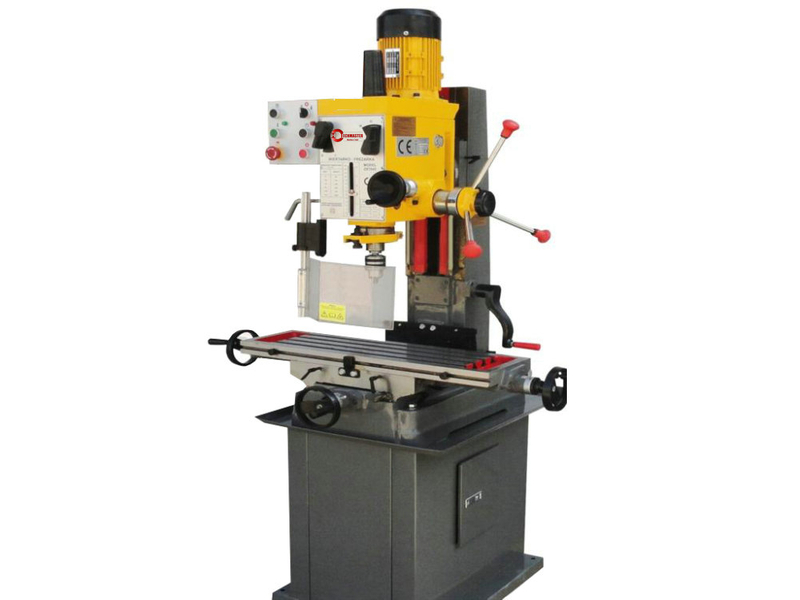

XL7045
CHARACTERS:
Compact and solid construction gray cast iron
High performance drill
6 speeds
Gear transmission
Technical data:
MODEL | ZX7045 |
---|---|
Spindle taper | MT 4 |
Max.Drilling capacity | 45 mm |
Diameter of vertical milling | 28 mm |
Max. face mill capacity | 80 mm |
Distance spindle axis to column generating line | 260 mm |
Max.Distance spindle nose to table | 475 mm |
Spindle travel | 120 mm |
Dimension of worktable surface | 730 x 210 mm |
Table travel | 450 x 170 mm |
Spindle speeds range | 95-1600 r / min (6 speeds) |
Motor | 1,5 HP |
Voltage | 230 V |
Net weight/ Gross weight | 278/318 kg |
Packing dimension | 860 x 740 x 1160 mm |
This listing and price concern only the machine.
The stand is available as an optional equipment.
