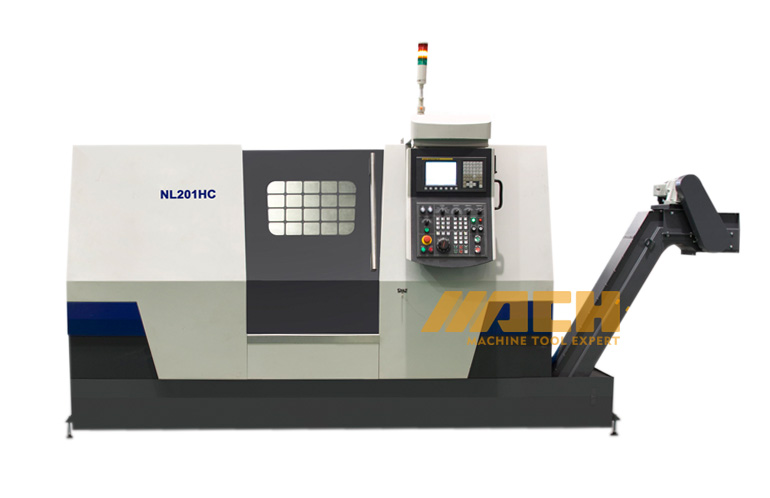

Full Function CNC Lathe Model:NL201HC
Quantity: -
Full Function CNC Lathe Model:NL201HC
MAIN FEATURES
1. Slant bed high rigidity,easier chip removal.
2. Imported spindle bearing,reasonable span.
3. FANUC system ,servo motor,hydro turret and chuck.
4. Mechanic ,electric and hydraulic automation.
Item Unit Parameters Remarks Machining ranges Max. swing over bed mm Φ450
Max. machining diameter mm Φ200
Max. machining length mm 360
Dia. of through spindle hole mm Φ56
Travel X-axis mm 125
Z-axis mm 400
Spindle Output power kw 7.5/11
The form of spindle end
A2-5
Max. spindle speed rpm 6000
Chuck inch 6 hollow chuck Feed rate Rapid feed rate(X-axis) m/min 24
Rapid feed rate(Z-axis) m/min 30
Cutting feed rate mm/min 1~8000
Carriage No. of tool stations Station 8
Tool indexing time
0.5
Size of lathe tool mm 25′25
Max. dia. of boring bar mm 32
tailstock Diameter mm 75
Travel mm 80
Machine accuracy Positioning accuracy (X/Z) mm 0.006/0.008
Repeatability(X/Z) mm 0.004/0.004
Others Power capacity kVA 20
Cutting liquid groove volumn L 160
Machine dimension mm 3660′1460′1650
Net weight kg 4200 STANDARD ACCESSORIES
FANUC 0i -mate-TD CNC system FANUC
Spindle motor SFC (Shanghai)
Spindle bearing NSK(Japan)
Ball screw HIWIN (Taiwan)
Hydraulic chuck and oil cylinder Jinchuan(China)
Hydraulic turret Yaxing (China)
Chip conveyor China
Parallel connection belt GATES(US)Lubricating system BIJUR (China)
Hydraulic system SEVEN OCEAN/COMPASS
Transducer TOYO(Japan)
Electric cabinet air-conditioner China
Tri-color light PATLITE(Japan)
Main electrical elements SCHNEIDER(France)OPTIONAL ACCESSORIES
Siemens 828D system
12T Lioshing hydraulic turret
Hydraulic steady rest
Renishaw tool measure
Bar feeder
12” hollow chuck
Hollow cylinder
SFC servo motor
FANUC Servo motor spindle
