G1340
Quantity: INTRODUCTION:

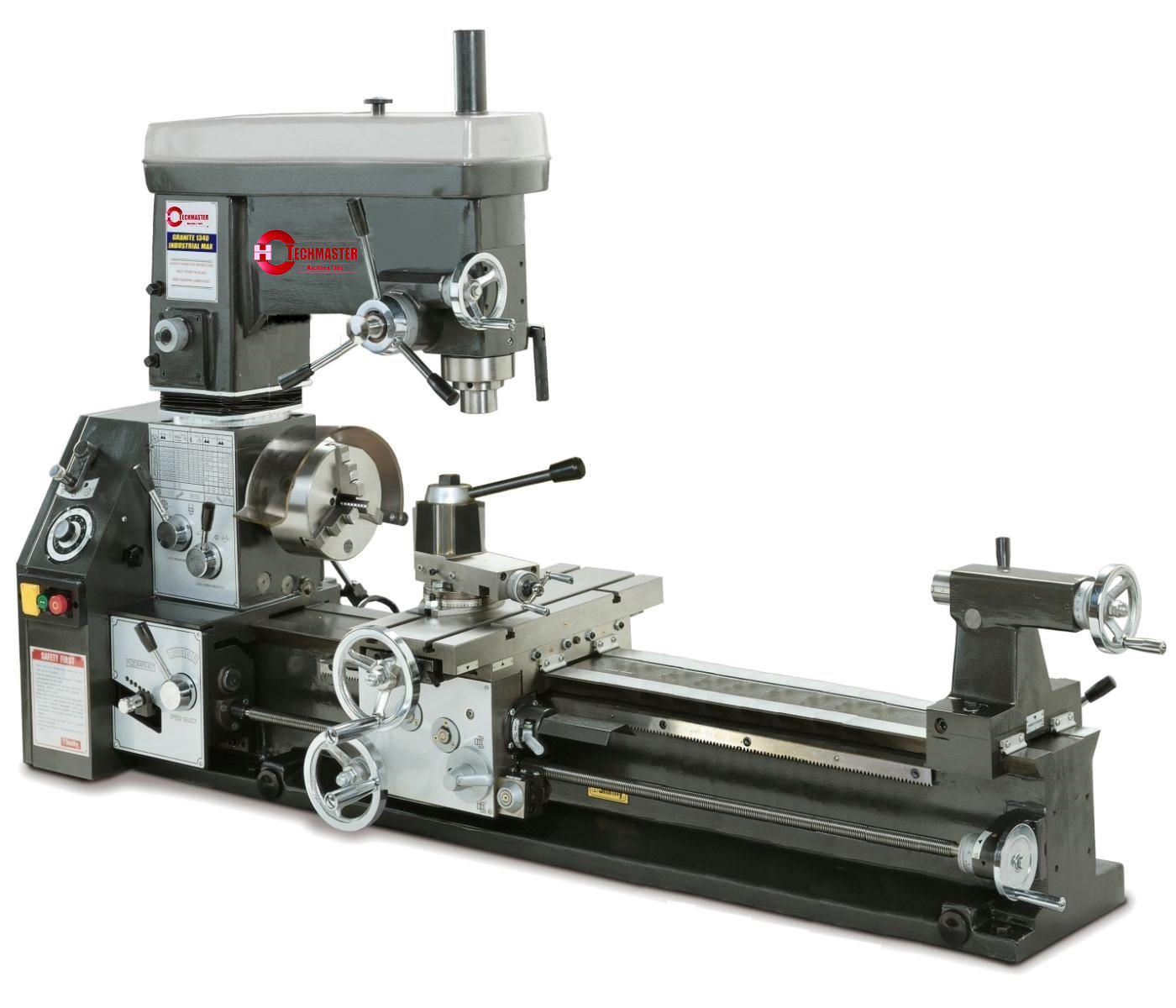

This machine can carry out turning, drilling ,milling, boring and thread-cutting.It is widely used for single or mass production of small and medium-sized parts.
MAIN FEATURES:
★Infinitely variable speed ★Wide range and high spindle speed
★Wide range of metric and inch thread-cutting ★
Power-driven in longitudinal and cross directions,
thread-cutting, safe interlock ★lengthened table
★power-driven-table for milling ★a overload safety device
★quick change between turning and drilling-milling★motor quickly adjusted ★cam-locking chuck
STANDARD ACCESSORY
★drilling chuck ★drill taper stock★milling shank★drawing bar ★center ★exchange gear★tools
OPTIONAL ACCESSORY
★stand ★milling chuck ★milling cutter★steady rest★follow rest ★live center
SPECIFICATIONS G1324 G1340 Swing diameter over bed 330mm 13" 330mm 13" Swing diameter over table 190mm 7.5" 190mm 7.5" Distance between centers 610mm 24" 990mm 39" Spindle bore 28mm 1.1" 28mm 1.1" Spindle speed 50～3000r/min 50～3000r/min Longitudinal stroke 510mm 20" 890mm 35" Cross stroke 185mm 7.3" 185mm 7.3" Small toolpost stroke 70mm 2.75" 70mm 2.75" Metric pitch/grade 0.35～6.5MM/24 0.35～6.5MM/24 Inch pitch/grade 7～52T.P.I/21 7～52T.P.I/21 Longitudinal feed/grade 0.067～0.5MM/R/21 0.067～0.5MM/R/21 Cross feed/grade 0.021～0.157MM/R/21 0.021～0.157MM/R/21 Milling-drilling spindle taper MT3 R8 MT3 R8 Milling-drilling spindle stroke 127mm 5" 127mm 5" Milling-drilling box stroke 110mm 4.33" 110mm 4.33" Area of table 450×150mm 17.7"×5.9" 450×150mm 17.7"×5.9" Drilling diameter 24mm 0.95" 24mm 0.95" Power of motor 1.5HP(1.1KW) 1.5HP(1.1KW) N.W./G.W. of machine 300/350kg 330/390kg Overall dimensions of machine 1325×585×1030mm 1705×585×1030mm Case dimensions of machine 1260×470×1100mm 1640×470×1100mm Case dimensions of stand Left:760×450×410mm Right:760×450×350mm Item No. 113035 113040
