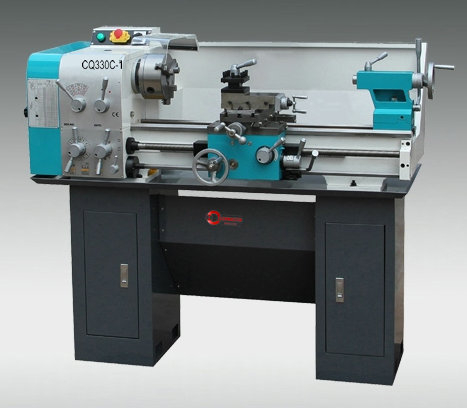

GEARED DRIVE LATHE CQ330C /CQ330C-1
Quantity: -
CQ330C(600MM) / CQ330C-1(750MM)
FEATURES:

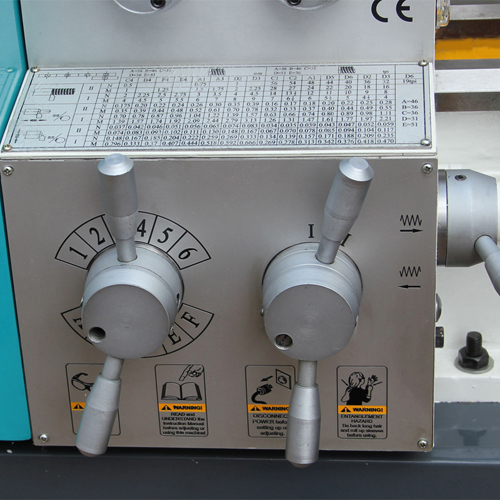

Gear driven headstock and quick change spindle speed
MT5 spindle taper with diameter 38mm spindle bore
Two ‘V’ guaidway are hardened and ground
Sildeway are sticked with soft wear strip for lightweight and sensitive operating
12 steps spindle speed from 60-1800rpm
Original creation of big operating bar for change longitudinal-cross feed

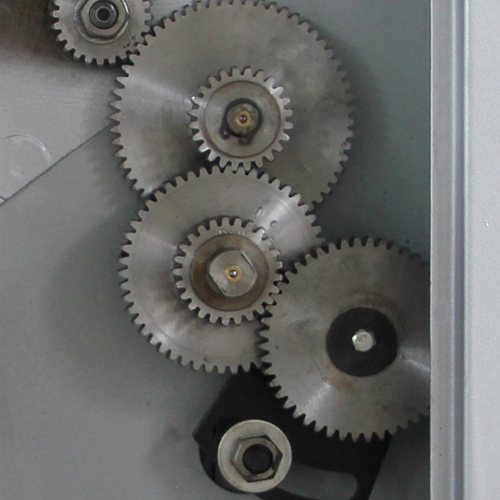

Quick change gearbox for easy threads cutting
Model CQ330C(600MM）
CQ330C-1(750MM)
Swing over bed 330mm Swing over carriage 160mm Distance between centers 600 / 750mm Bed width 160mm Spindle bore 38 mm Spindle taper MT5 Spindle speed 60-1800rpm Tool post travel 100mm Cross travel 160mm Longitudinal travel 680mm Range of longitudinal feeds 0.1 - 1.5mm/r Range of cross feeds 0.045 - 0.6mm/r Metric threads 18 / 0.2-3.5mm Inch threads 35 / 48 - 4-1/2tpi Max. travel of tailstock sleeve 85 mm Taper of tailstock sleeve MT3 Motor power 1100W Net weight 320kg Packing size 1320 /1570x760x700mm FEATURES:
