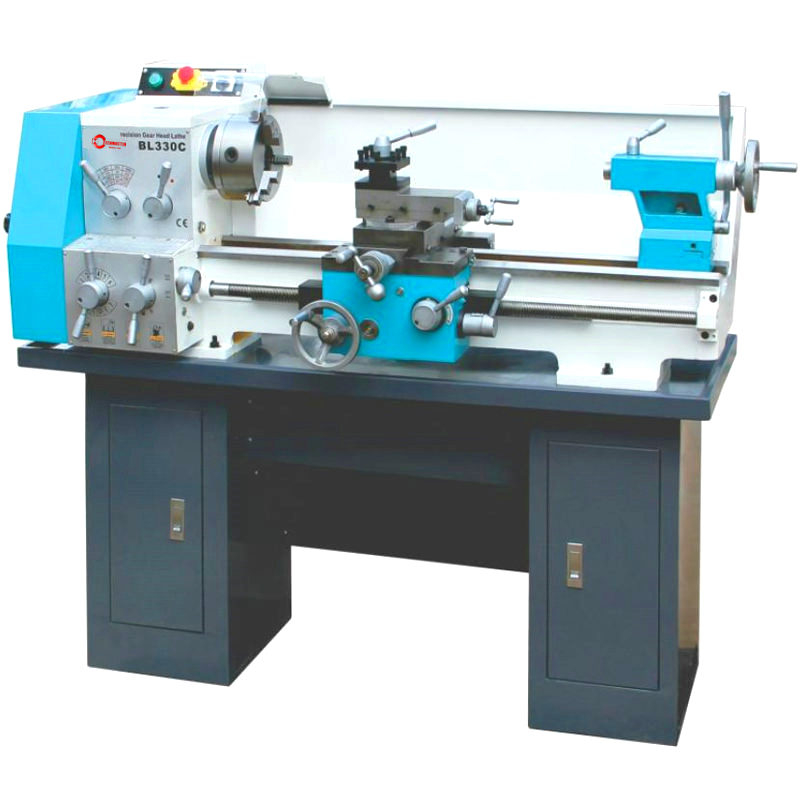

GEARED HEAD BENCH LATHE BL330C/750MM
Quantity: -
BL330C
Model BL330C/750mm Swing over bed 330mm / 12½" Swing over carriage 180mm / 7¼" Distance between centers 750mm / 30" Bed width 160mm / 6¼" Spindle bore 38 mm / 1½" Spindle taper MT5 Spindle speed 60-1800rpm Tool post travel 100mm / 4" Cross travel 160mm / 6¼" Longitudinal travel 720mm / 28½" Range of longitudinal feeds 0.1 - 1.5mm/ 0.004"-0.259"/r Range of cross feeds 0.045 - 0.6mm/0.0018"-0.024"/r Metric threads 20 / 0.5--9 mm Inch threads 28 / 4 - 56 TPI Max. travel of tailstock sleeve 85 mm / 3½" Taper of tailstock sleeve MT3 Motor power 1100W Net weight 348kg / 770Ib Packing size 1570x760x700mm / 62"x 30"x 28"
FEATURES: BL330C Gear driven headstock and quick change spindle speed MT5 spindle taper with diameter 38mm spindle bore Two 'V' guaidway are hardened and ground Sildeway are sticked with soft wear strip for lightweight and sensitive operating12 steps spindle speed from 60-1800rpmOriginal creation of big operating bar for change longitudinal-cross feed Quick change gearbox for easy threads cutting
STANDARD ACCESSORIES ARE INCLUDEDDia. 160mm self-centering 3 jaw chuck with reversel jawsDead center #:MT5 Dead center #:MT3Metric or inch change gear set (be selected one of the two size)Necessary tools and tool kitOperation manual and packing listTest report
OPTIONAL ACCESSORIES BY EXTRA COSTDia. 160mm independent 4 jaw chuck with back plateDia. 200mm follow restDia. 200mm steady restDia. 220mm face plateCoolant system( 5Liter tank)Halogen working lampProtective cover for leadscrew(left side or left/right side)Protective cover for chuck(with microswitch for CE requirement)Protective cover for tool-postTwo cabinet stand with chip trayModel BL330C/750mm Swing over bed 330mm / 12½" Swing over carriage 180mm / 7¼" Distance between centers 750mm / 30" Bed width 160mm / 6¼" Spindle bore 38 mm / 1½" Spindle taper MT5 Spindle speed 60-1800rpm Tool post travel 100mm / 4" Cross travel 160mm / 6¼" Longitudinal travel 720mm / 28½" Range of longitudinal feeds 0.1 - 1.5mm/ 0.004"-0.259"/r Range of cross feeds 0.045 - 0.6mm/0.0018"-0.024"/r Metric threads 20 / 0.5--9 mm Inch threads 28 / 4 - 56 TPI Max. travel of tailstock sleeve 85 mm / 3½" Taper of tailstock sleeve MT3 Motor power 1100W Net weight 348kg / 770Ib Packing size 1570x760x700mm / 62"x 30"x 28"
FEATURES: BL330C Gear driven headstock and quick change spindle speed MT5 spindle taper with diameter 38mm spindle bore Two 'V' guaidway are hardened and ground Sildeway are sticked with soft wear strip for lightweight and sensitive operating12 steps spindle speed from 60-1800rpmOriginal creation of big operating bar for change longitudinal-cross feed Quick change gearbox for easy threads cutting
STANDARD ACCESSORIES ARE INCLUDEDDia. 160mm self-centering 3 jaw chuck with reversel jawsDead center #:MT5 Dead center #:MT3Metric or inch change gear set (be selected one of the two size)Necessary tools and tool kitOperation manual and packing listTest report
OPTIONAL ACCESSORIES BY EXTRA COSTDia. 160mm independent 4 jaw chuck with back plateDia. 200mm follow restDia. 200mm steady restDia. 220mm face plateCoolant system( 5Liter tank)Halogen working lampProtective cover for leadscrew(left side or left/right side)Protective cover for chuck(with microswitch for CE requirement)Protective cover for tool-postTwo cabinet stand with chip tray
