GEARED HEAD DRILLING MACHINE Z5032
Share to:

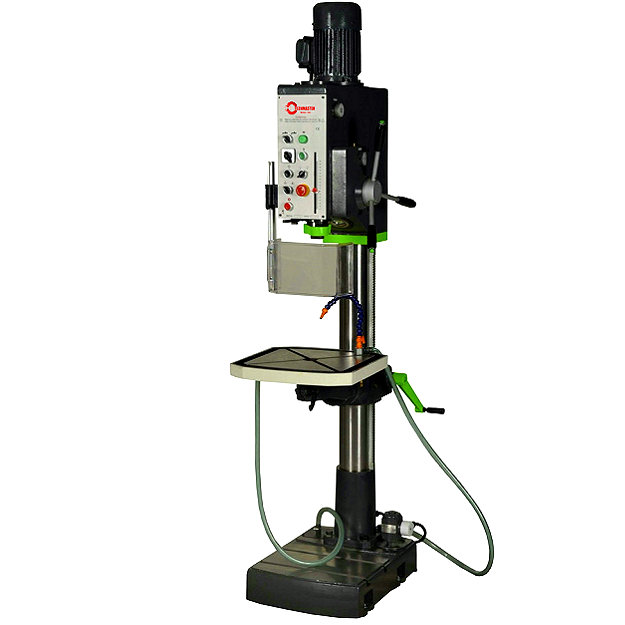

GEARED HEAD DRILLING MACHINE Z5032

Quantity:
  • Z5032

Drilling, tapping, boring,reaming:Strong column ,gear drive,low noise;Heavy-duty tapered roller bearing spindle, positive spindle lock.Drilling machine Z5025 is equipped with spindle manual feed,Drilling machine Z5035 is equipped with spindle auto power down feed,Equipped with cooling system,working light, 2 step motor with 12 steps spped which can improve the machining accuracy and producing efficiencyStandard accessories:Adaptor, drilling chuck,elevating lever,oil gun, screw, washer, tools.”CE” protecting arbor, cooling system,lampOptional accessories:Depth indicator, 58pcs steel clamping kit, machine vise.



Item

Z5025

Z5032

 Max. Drilling dia (Steel/Iron)

 28/25mm

32/25mm

 Max. tapping dia.(Steel/Iron)

 22/18mm

22/16mm

 Spindle taper

 MT3

MT4

 Worktable Size

 380×380mm

460×460m

Base size

535×360mm

620×450m

 Width of T-slot

14mm

14mm

 Distance of T –slot base

160mm

160mm

 Spindle stroke

 130mm

160mm

  Diameter of column

  125mm

125mm

 Distance from spindle center to column surface

 250mm

300mm

 Distance from spindle nose to worktable

 825mm

720mm

 Distance spindle nose to base

 1200mm

1200mm

Vertical travel of worktable

700mm

700mm

 Spindle speeds range

 75~3200rpm(12 speeds)

75~3200rpm(12 speeds)

Speed power feed range


0.06/0.12/0.18mm/r

 Motor( 2 speed motor)

 1kw/0.85kw

1.5kw/1.1kw

 Packing size

 2100×400×640mm

2100×400×640mm

 Net weight

 210kgs

350kgs
