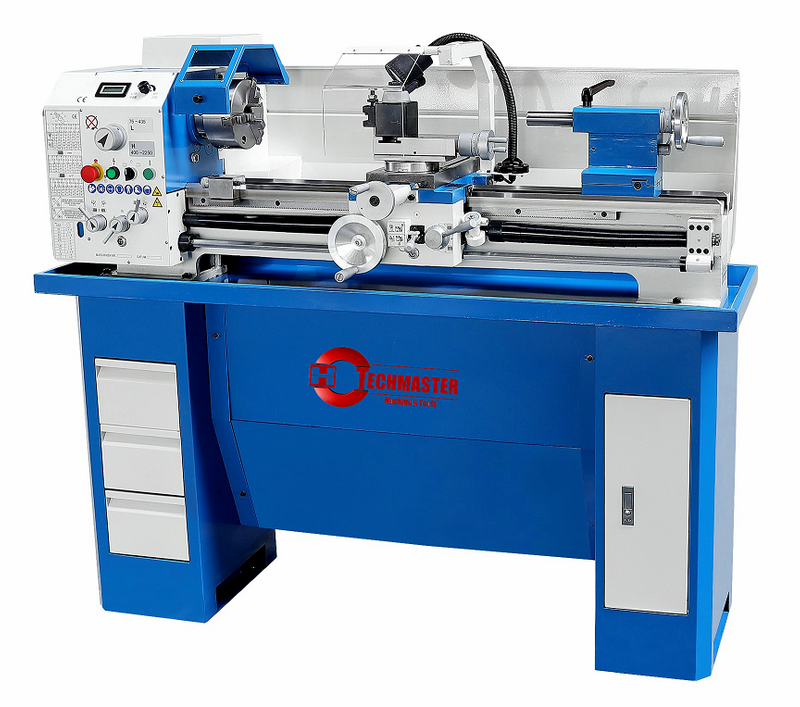

GEARED HEAD FREQUENCY CQ320GX880

The Vario-lathe Vario lathe features a reduction gear as standard, which eliminates the need to change speed step using V-belt. Another feature of this machine is the standard frequency inverter, resulting in high torque in the lower speed range and the nearly constant speed at heavy workloads.

• Complete with 38 mm spindle bore to allow processing of large shaft diameters

• Strongly reinforced machine bed featuring induction-hardened, polished guide

• Suitable for processing of steel, non-ferrous metals and plastics

• Universal in use: longitudinal turning, facing, profiling, thread cutting etc.

• Change gears for cutting of metric threads are part of the standard accessories

• Main spindle features adjustable tapered roller bearings in P5 quality

• User-friendly arrangement of control elements on gear head

• Tailstock features single-lever clamping, adjustable for taper turning

• V-ledges allow for adjustment of bed way guides

• Serially with Delta frequency inverter for high torque in low speed range and nearly constant speed at heavy workloads

• Distance between centers	880 mm
  Center height	160 mm
  Swing over bed	320 mm
  Spindle bore	38 mm
  Taper at spindle bore	DIN 55029, D1-4
  Speed range, stepless	75 – 435 / 400 – 2250 rpm
  Longitudinal feed	(15) 0,07 – 1,0 mm/rev.
  Cross feed	(15) 0,017 – 0,25 mm/rev.
  Metric thread	(18) 0,2 – 3,5 mm
  Inch thread	(21) 8 – 56 threads/1“
  Travel of tailstock sleeve	100 mm
  Taper of tailstock sleeve	MT 3
  Motor power output S1 100%	1,5 KW / 230 V
  Motor power input S6 40%	2,2 kW / 230 V
  Machine dimension (W x D x H)*	1660 x 650 x 570 mm
  Weight approx.	255 kg
