Z5035

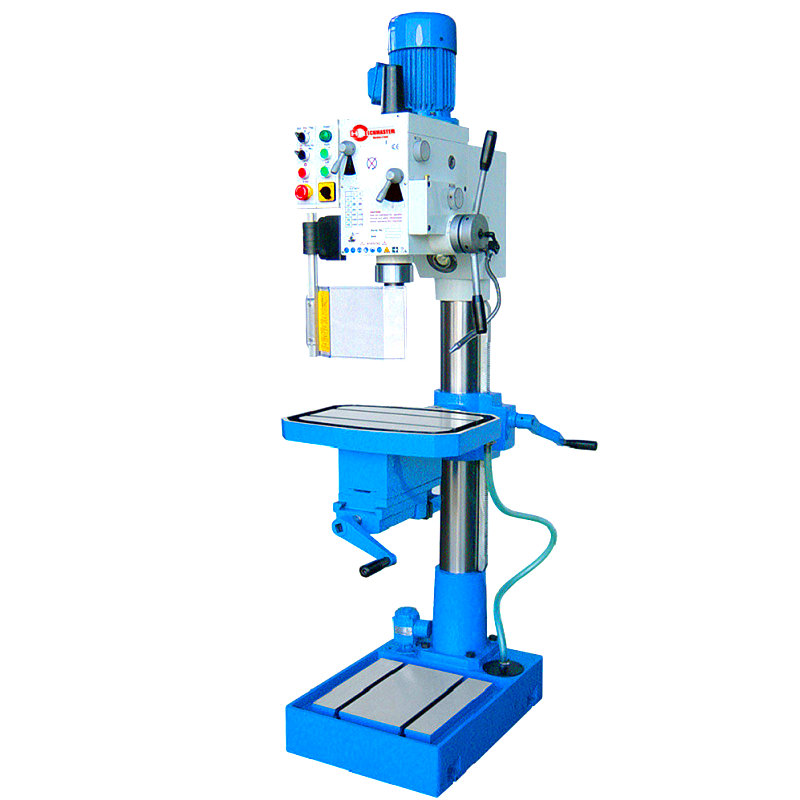

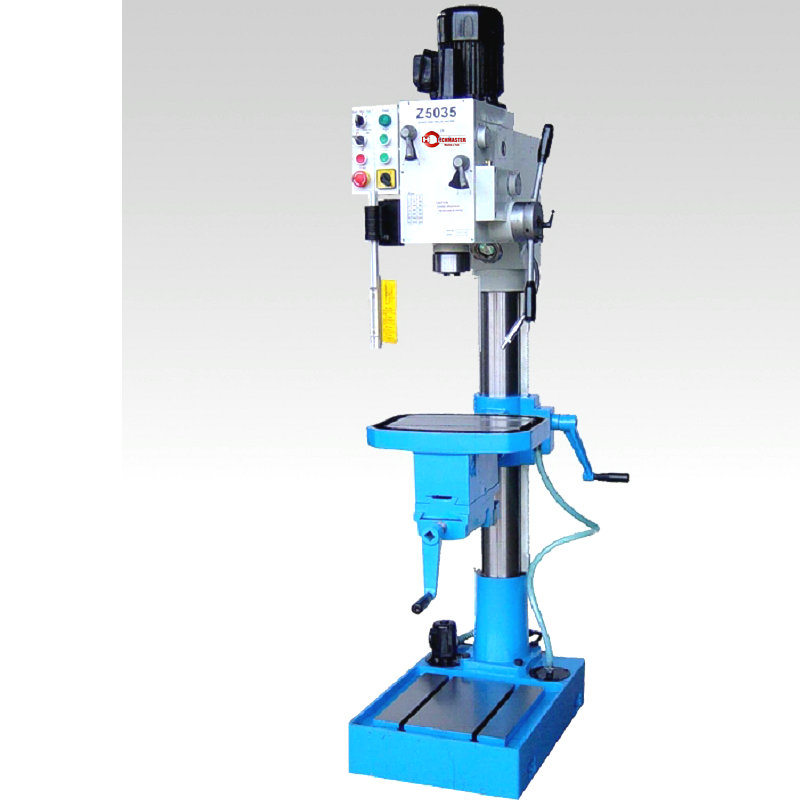

The Drilling Machine Z5035 is equipped with: Auto spindle power down feeder,cooling system,Working light,Big Viceworktable,2step motor with 12 steps speed which can improve the machining accuracy and producing efficiency • Drilling, tapping, boring, reaming ；•Strong column,Vice table,Gear drive, lower noise。； •Heavy-duty tapered roller bearing spindle,Positive spindle lock。 |
| Modle | Z5035 |
| Max,drilling capacity | Φ35mm |
| Spindle taper | MT3/MT4/R8 |
| Spindle stoke | 130mm |
| Step of spindle speeds | 12 |
| Spindle feed range | 0.0/0.18/0.26mm/rev. |
| Range of spindle speeds | 75-3200rpm |
| Diameter of column | 125mm |
| Distance from spindle to column | 320mm |
| Dsitance from spindle nose to table | 85-685mm |
| Diatance from spindle end to base | 1140mm |
| Table size | 500x360mm |
| T-solt | 2x14mm |
| Base size | 470x670mm |
| Main motor | 1500w |
| Coolant motor | 75w |
| Packing size | 570x810x2110mm |
| Net weight | 400/470KG |
