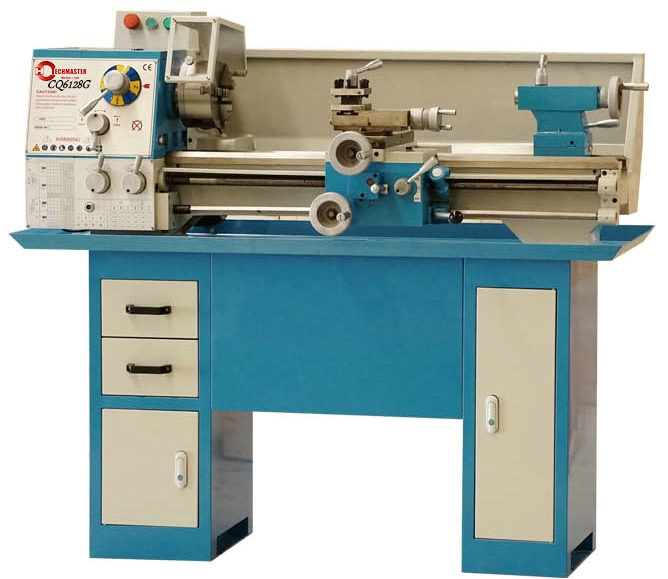

GEARED HEARD BENCH LATHE CQ6128G 280X700 MT4 Spindle 280*700MM Thread Making Metal Lathe Machine
You are here: Home » Products » TURNING » BASIC BENCH LATHE » GEARED HEARD BENCH LATHE CQ6128G 280X700 MT4 Spindle 280*700MM Thread Making Metal Lathe Machine

loading

Share to:

GEARED HEARD BENCH LATHE CQ6128G 280X700 MT4 Spindle 280*700MM Thread Making Metal Lathe Machine

Availability:
Quantity:
280X700 MT4 Spindle 280*700MM Thread Making Metal Lathe Machine
  • CQ6128G (600MM/750MM)

180 Days warranty time for "control board" after you received our lathe machine.

Send the broken control board back to us in 180 days can change a new control board.

The warranty time since from the day you received machine.

PROCESSING THREADS WITHOUT TRANSPOSING GEARS

Max working distance: 700mm

Max swing over bed: 280mm

Width of bed: 150mm

Swing over middle carriage: 160mm

Spindle bore: 26mm

Spindle taper: MT4

Max cross stroke of toolpost : 130mm

Max long stroke of top toolpost: 65mm

Max stroke of tailstock sleeve: 60mm

Tailstock taper: MT2

Spindle speed steps: 12

Spindle speed range: 80-1600rpm

Motor: 750W Motor
