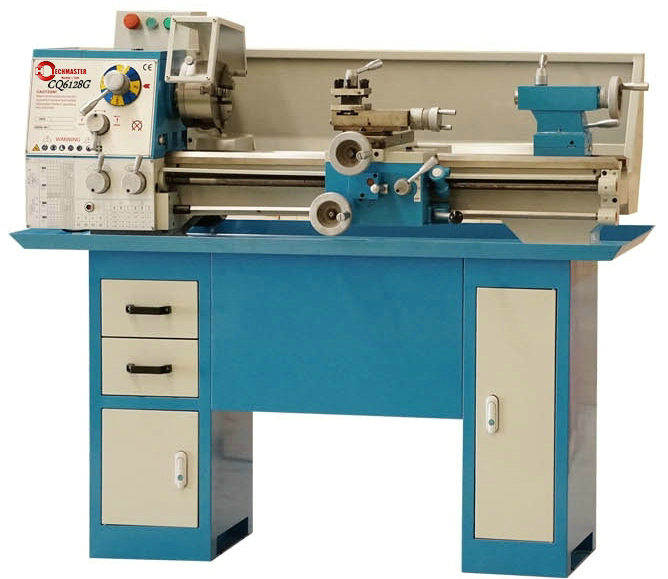

CQ6128G (600MM/750MM)
ECONOMICAL AND WIDELY USEFUL GEAR HEAD BENCH LATHE
INDUCTION HARDENED AND GROUD BEDWAY
EASY OPERATION BY GEARD HEAD
LARGE MT4 SPINDEL BORE
POWER LONGITUDINAL FEED ALLOWS THREADING
NEW ENCLOSED QUICK CHANGE GEAR BOX WITH LARGE FEED ABND THREADING FUNCTION
PRECISION CUTS WITH CROSS AND LOGITUDINAL POWER FEED
TAILSTOCK CAN BE OFFSET FOR TURNING TAPER.
| DISTANCE BETWEEN TWO CENTERS | 600MM / 750MM |
| SWING OVER BED | 280MM |
| SWING OVER CROSS SLIDE | 167MM |
| WIDTH OF BED | 180MM |
| TAPER OF SPINDE BORE | MT5 |
| SPINDLE BORE | 38MM |
| NUMBER OF SPINDLE SPEED | 12 STEPES |
| RANGE OF SPINDE PSEED | 90-1800RPM |
| RANGE OF LONGITUDINAL FEEDS | 0.05-0.35MM |
| RANGE OF CROSS FEEDS | 0.025-0.18MM |
| RANGE OF INCH THREADS | 4.5-48TPI |
| RANGE OF METRIC THREADS | 0.2-3.5MM(18 KINDS) |
| RANGE OF MODULE THREADS | 0.25-5 |
| RANGG OF DP THREADS | 9-96 |
| TOP SLIDE TRAVEL | 75MM |
| CROSS SLIDE TRAVEL | 140MM |
| TAILSTOCK QUILL TRAVEL | 60MM |
| TAPER OF TAILSCTOCK QUILL | MT3 |
| MOTOR | 1.1KW |
| PACKING | 125X70X130CM(600mm) 150x70x138mm(750mm) |
| Net weight | 240kg(600mm) 260kg(750mm) |
| Standard | Optional |
| Three jaw chuck 160mm | Four jaw chuck 160mm |
| Splash guard | Steady rest |
| Follow rest | |
| Face plat 160mm |
