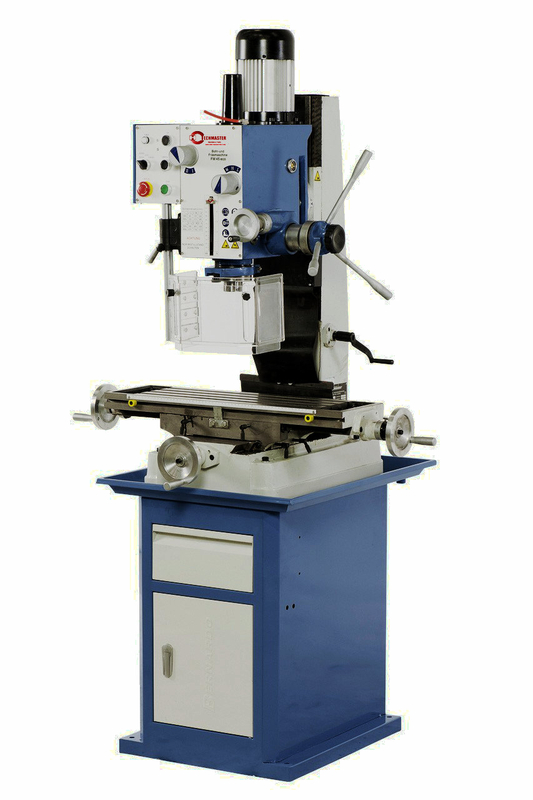

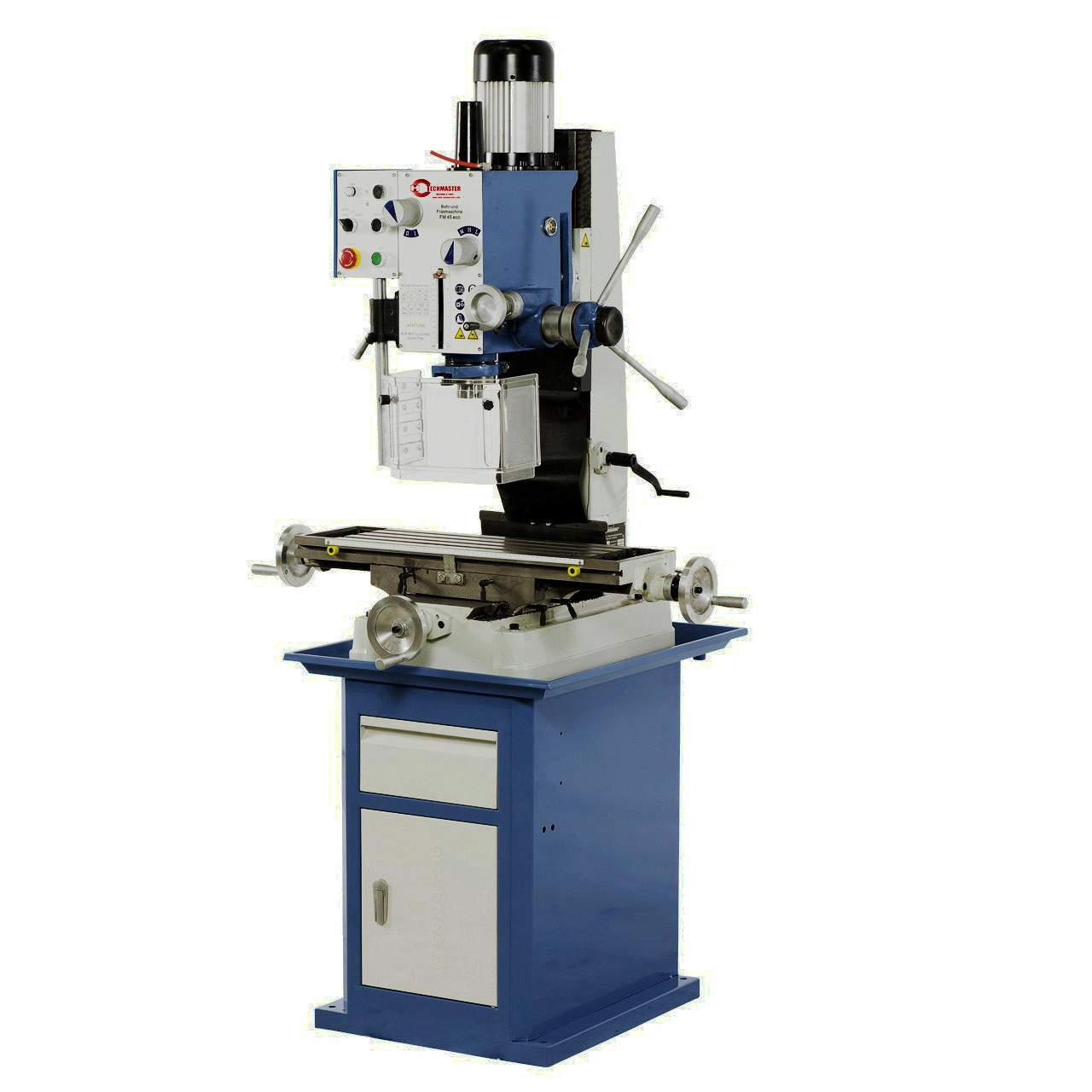

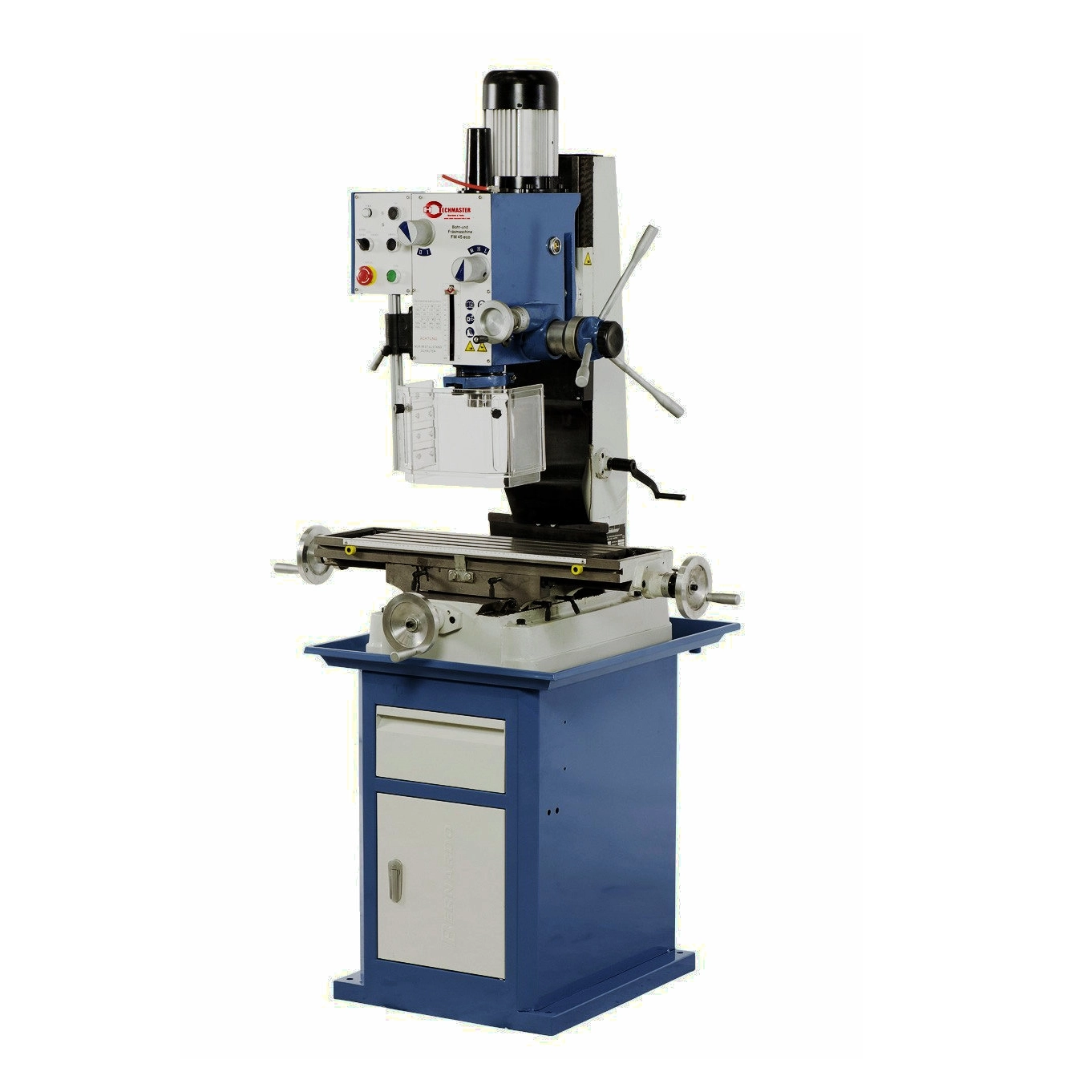

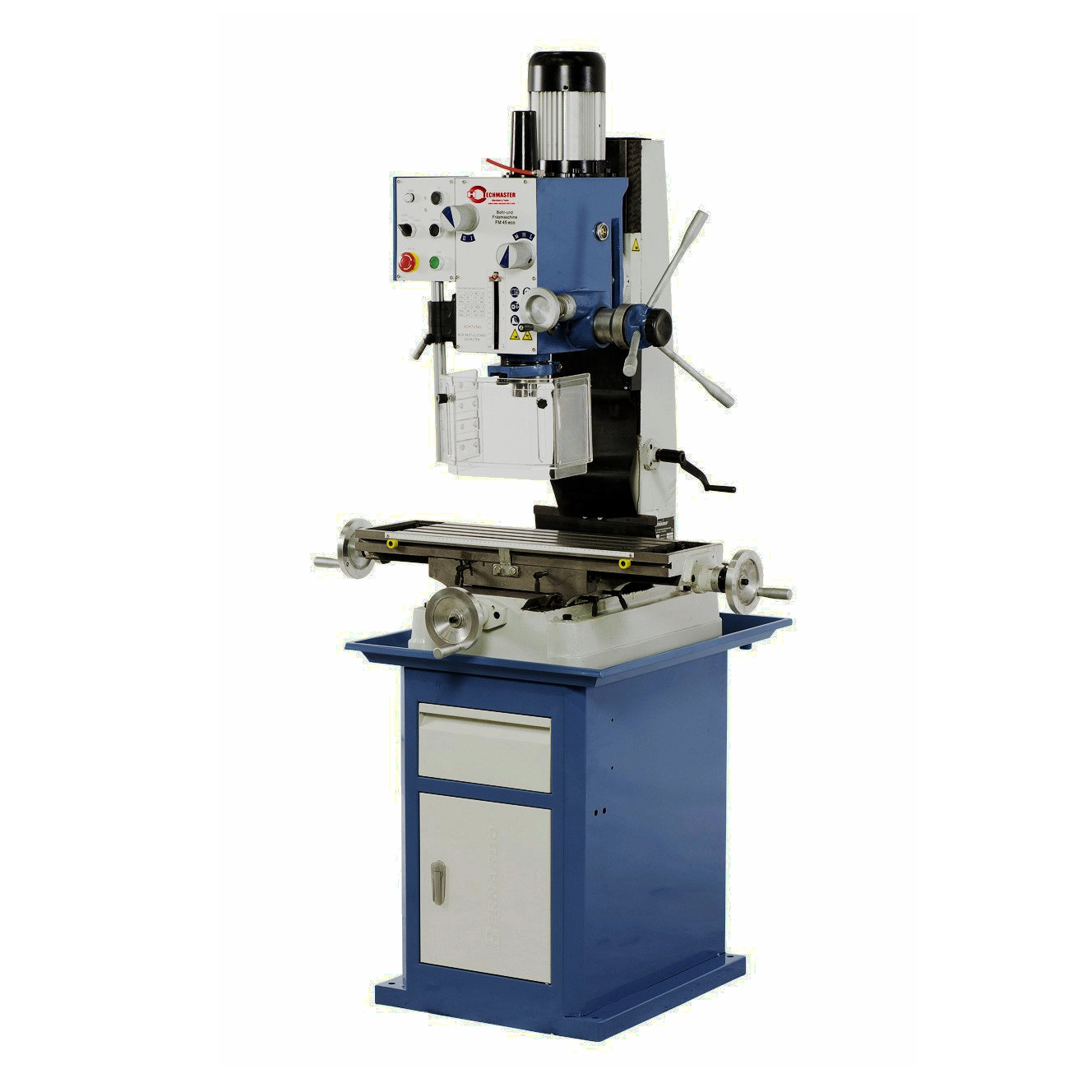

GEARED HEARD DRILLING MACHINE EUROPE STYLE J-ZX45
Quantity: a reasonably priced drilling and milling machine. The dovetail guiding of the gear head guarantees best possible accuracy and stability. Most commonly it is used by amateurs.
TECHNISCHE SPEZIFIKATIONEN
Drill capacity in steel
32 mm
Drill capacity on cast iron
40 mm
Distance spindle to column
260 mm
Spindle speed
(6) 95 - 1970 rpm
Spindle taper
MT 4
Spindle stroke
120 mm
Table size
730 x 210 mm
Travel (x / y)
490 / 205 mm
Mill head tiltable
-90° to +90°
Distance spindle to table
55 - 495 mm
Height adjustment of mill head
440 mm
T-slot size
14 mm
Motor power output S1 100%
1,1 kW / 400 V
Motor power input S6 40%
1,5 kW / 400 V
Machine dimensions (W x D x H)*
1080 x 800 x 1380 mm
Weight approx.
260 kg
* without stand
FEATURES- Gear selector switch allows for quick and easy speed change
- Wide range of applications, such as drilling, milling, thread cutting etc.
- Polished gear wheels, in oil bath, ensure smooth running
- Right and left turning device for tapping
- Handle allows spindle feed, handwheel allows fine feed
- Dovetail guiding in x-, y- and z-axis, adjustable by gibs
- Milling table tilts to both sides to allow angular boring, milling of bevels etc.
- Large, surface-treated cross table
- Attractive price-to-performance ratio for price conscious users
Standard accessories:
- Keyless drill chuck 1 - 16 mm / B 18
- Drill chuck arbor MT 4 / B 18
- Morse taper drill sleeve MT 4 / 3
- Drawbar M 10 with adapter M 16
- Milling head 80 mm with MT 4 taper
- Thread cutting device
- Height adjustable protective cover
- Longitudinal scale
- Tools
