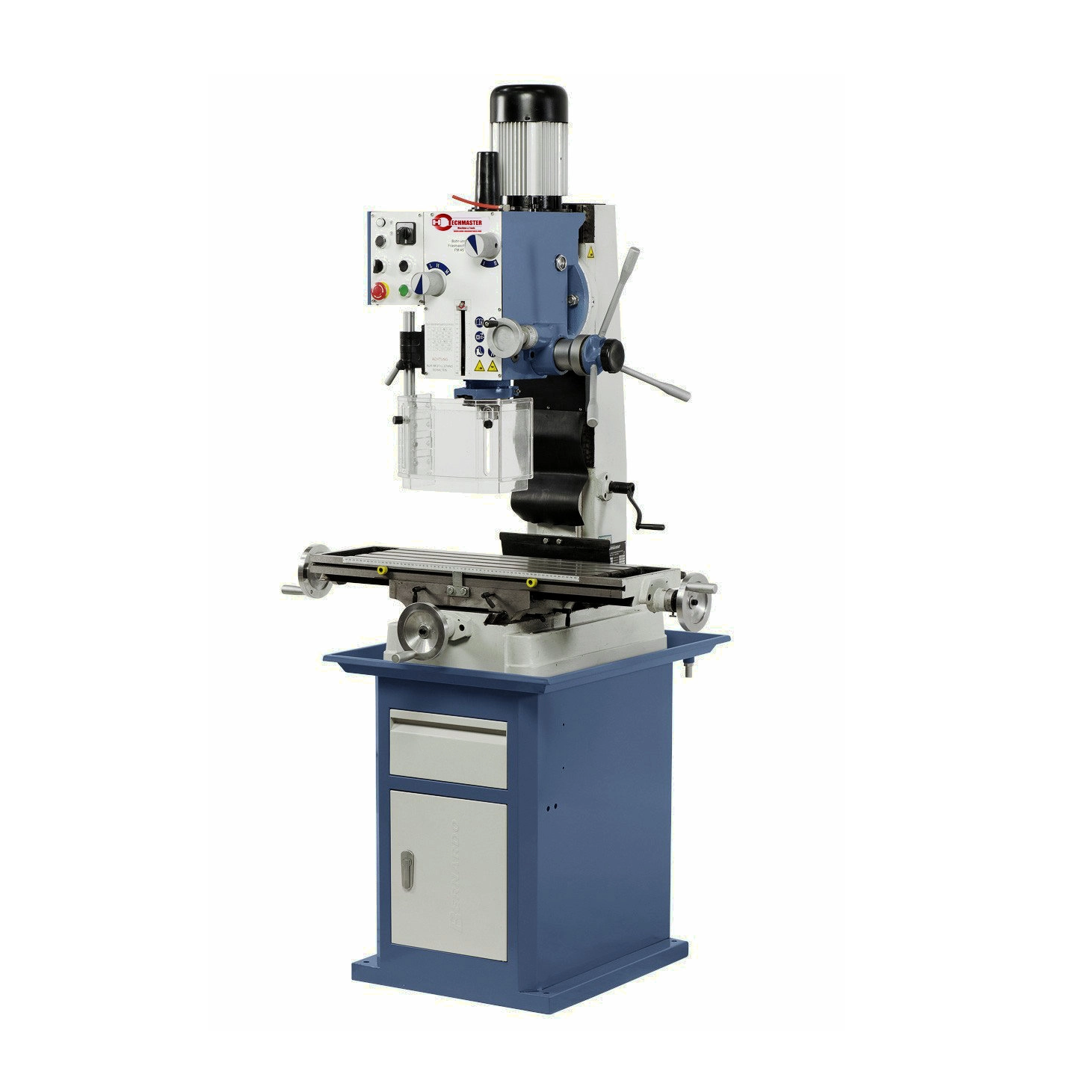

GEARED HEARD DRILLING MACHINE EUROPE STYLE J-ZX45B
Quantity: suitable for drilling and milling in horizontal, vertical and inclined position. Additionally this model features a gear head with dovetail guiding, ensuring accuracy and rigidity. The solid construction and the extraordinary performance make this model popular among model makers, amateurs and repair shops
TECHNISCHE SPEZIFIKATIONEN
Drill capacity in steel
32 mm
Drill capacity on cast iron
40 mm
Distance spindle to column
260 mm
Spindle speed
(12) 50 - 2520 rpm
Spindle taper
MT 4
Spindle stroke
130 mm
Table size
820 x 240 mm
Travel (x / y)
560 / 190 mm
Mill head tiltable
-90° to +90°
Distance spindle to table
40 - 440 mm
Height adjustment of mill head
400 mm
T-slot size
14 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 kW (400 V)
Machine dimensions (L x D x H)*
1170 x 850 x 1450 mm
Weight approx.
282 kg
* without stand
FEATURES
- Large, solid cross table, precisely manufactured surface
- High concentricity due to taper roller bearing
- Dovetail guiding of the gear head
- Heavy and solid cast iron construction
- Wide range of applications
- Cross table features adjustable gibs
- Polished gears, in oil bath, guarantee smooth running
- Wide speed range 50 - 2520 rpm (12 steps)
- Left and right rotation for tapping
- Gear head tilts 180º
- Handwheel for spindle feed when milling
- Star handle for spindle feed when drilling
- Use clutch to change from manual feed to fine feed
Standard accessories:
- Drawbar
- Drill chuck 1 - 16 mm
- Morse taper drill sleeve
- Milling head 80 mm
- Height adjustable protective cover
- Thread cutting device
- Longitudinal scale
- Tools
