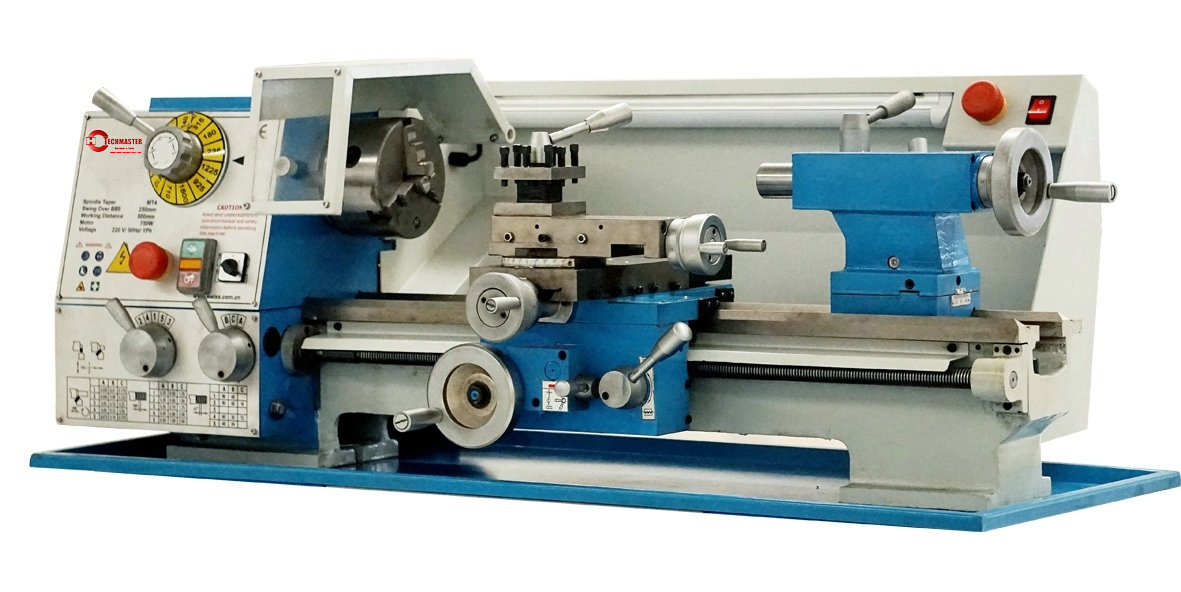

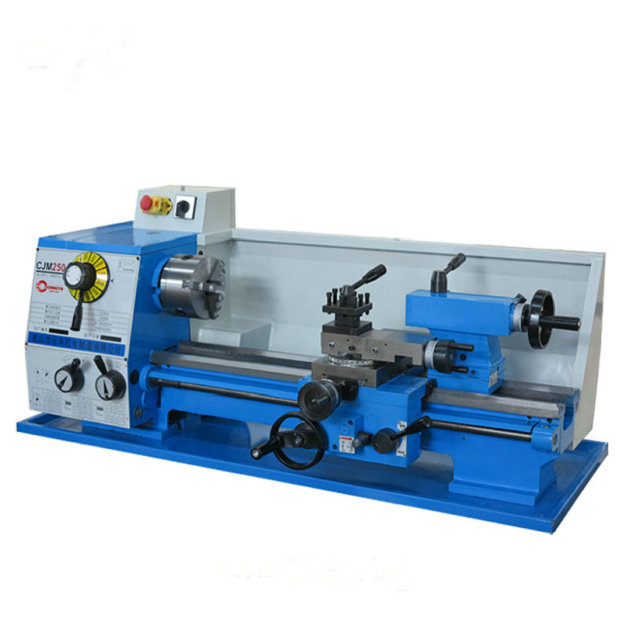

GEARED HIGN SPEED BENCH LATHE CJM6125
Quantity: -
CQ6125G(500mm /700mm)
Most economical, widely useful hobby lathe
Induction hardened and ground bedway
Geared headstock enables to change speeds quickly
Large MT4 spindle bore
Power longitudinal feed allows threading
New enclosed quick change gear box with large feed and threading functions
Precise cuts with cross & longitudinal powerfeed
Offset facility to tailstock
Specifications Distance between centers500 mm/700mmSwing over bed250 mmSwing over cross slide150 mmWidth of bed140 mmTaper of spindle boreMT4Spindle bore26 mmNumber of spindle speeds12Range of spindle speeds80~1600 rpmRange of longitudinal feeds
0.03~0.275 mmRange of inch threads12~96 T.P.IRange of metric threads0.25~2.5 mmTop slide travel75 mmCross slide travel130 mmTailstock quill travel60 mmTaper of tailstock quillMT3Motor750WPacking size1220x550x650 mmNet weight163 kgStandard AccessoriesOptional Accessories3-jaw Chuck (130mm)4-jaw chuck (160mm)V-belt (O) 630BackplateDead CentersFollow restTools WrenchSteady restAllen KeyFace plate (160mm)Open End WrenchRolling CenterSplash GuardTurning tool SetChip TrayThreading dialStand
