Feature
Milling, drilling, tapping, boring, reamingHead swivels 360°
Spindle micro feed(Auto-feed option)Head worktable up and down vertically
Super high columnMicro feed precision
Heavy-duty tapered roller bearing spindlePositive spindle on table
Gear drive, lower noise
Technical Parameter

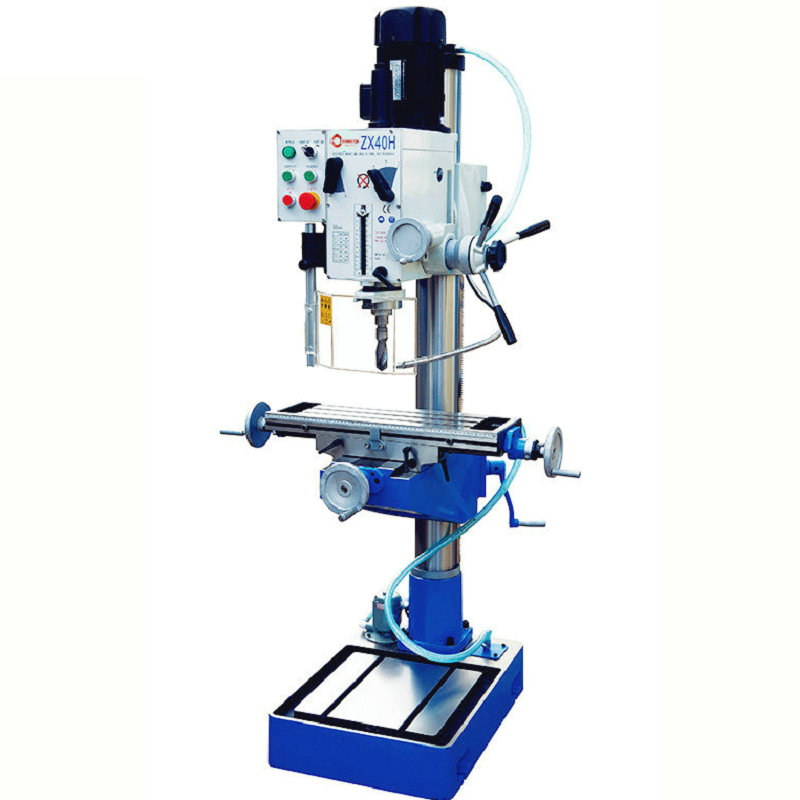

Model | ZX40H |
Max.drilling capacity | 31.5mm(MT3) 40mm(MT4) |
Max. end milling capacity | 32 mm |
Max.distance spindle nose to work table | 610 mm |
Max.distance nose to base | 1180 mm |
Work table size | 600x190 mm / 730x210 mm(optional) |
Work table travel | 370mm(X) 180mm(Y) |
Spindle taper | MT3 MT4 R8 |
Spindle travel | 120 mm |
Spindle speed(6steps) | 75-1600 rpm (50HZ) |
Diameter of column | 115 mm |
Dimension of base | 650x450 mm / 670x470 mm (water tank) |
Distance spindle-column | 278 mm |
Motor power | 1.5 kw |
NW/GW | 350/385 kgs |
Packing size | 830x760x1870 mm |
Standard accessories: | |
| 1、Draw bra | 2、Adapter |
| 3、Taper shank for drilling chuck | 4、Drilling chuck |
| 5、T slot bolt | 6、Washer |
| 7、Nut | 8、Tilted wedge |
| 9、Spanner | 10、Oil gun |
| 11、Instruction Manual | 12、Certificate of inspection |
| 13、Pacjing list | |
Optional accessories | |
| 1、Spindle power feed | 2、Table power feed (X-axis) |
| 3、Halogen working lamp | 4、Cooling pump |
| 5、Power off protective cover(CE) | 6、Tapping function |
| 7、Double speed motor | 8、Electronic depth display |
