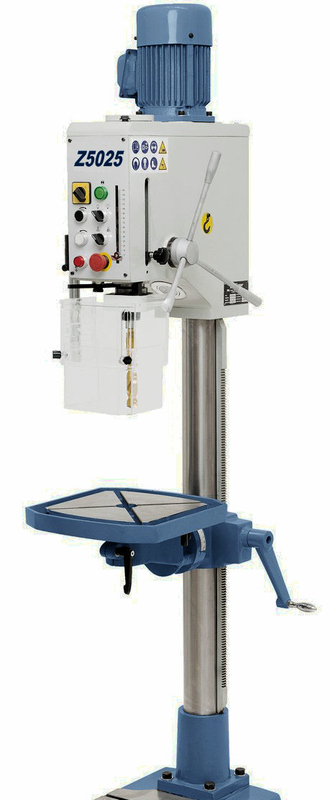

GEARHEAD BENCH AND COLUMN DRILLING MACHINE Z5025
Quantity: a powerful gearhead-column drilling machine which excells in robust and vibration-free construction. This model is predominantely used in repair shops, mechanical workshops and for training purposes.
Z5025
Drilling capacity max.
28 mm
Thread cutting max.
M12
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 3

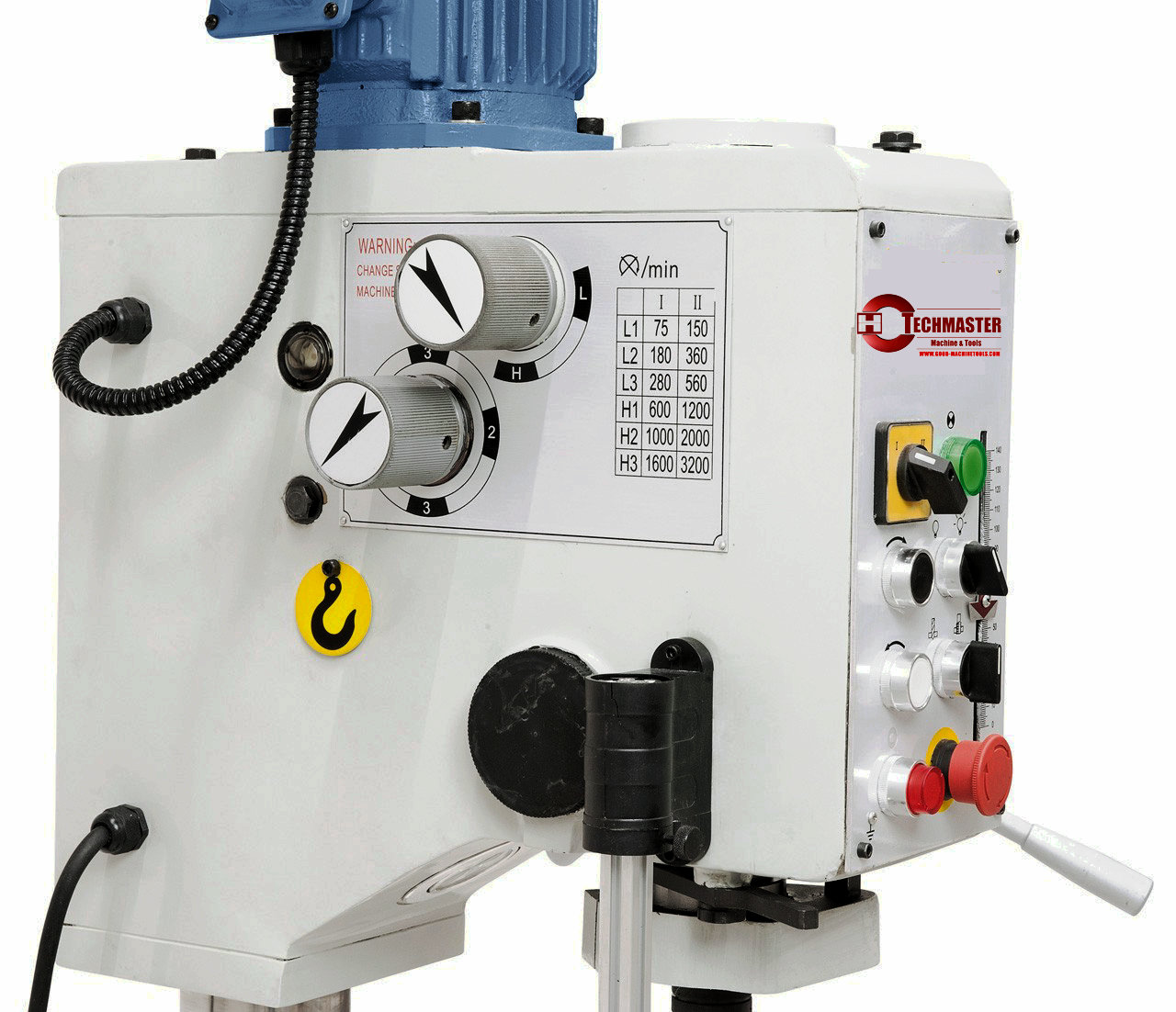

Spindle speeds
(12) 75 - 3200 rpm
Distance spindle to column
250 mm
Distance spindle to table max.
810 mm
Distance spindle to base
1210 mm
Spindle stroke
130 mm
Column diameter
100 mm
Working surface of base
325 x 330 mm
Table size / T-slot size
375 x 375 mm / 14 mm
Motor power putput S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 KW (400 V)
Machine dimension (W x D x H)
450 x 600 x 2020 mm
Weight approx.
215 kg
FEATURES
- Powerful 2-step drive motor allows for 12 different speed setting
- Rotation switch for right and left turning for thread cutting
- Solid work table (360° turnable), tiltable from -45° to +45°
- Treated machine base for clamping of extraordinary oversize workpieces
- High-quality ball bearings allow for high concentricity
- Automatic tool release device allows easy tool change
- Adjustable drill depth stop, drill depth can be read on scale
- Solid, polished steel column suitable for heavy workload
- Polished gear wheels ensure smooth run
- Height adjustable protective cover with micro switch for increased safety
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 3 / B 16
- Morse taper drill sleeve MT 3 / 2
- Automatic tool release device
- Thread cutting device
- Left and right turning
- Height adjustable protective cover
- LED machine light
