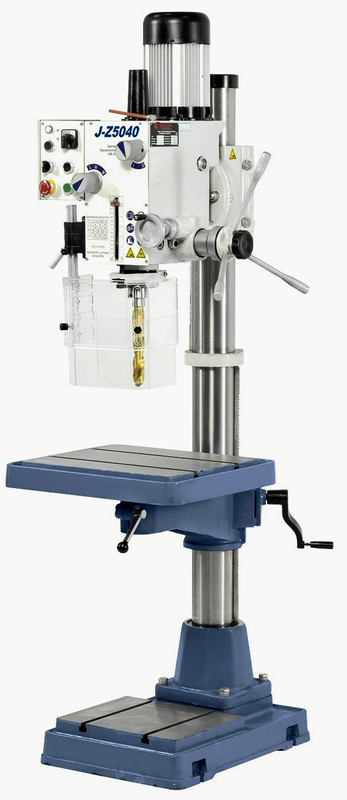

GEARHEAD BENCH AND COLUMN DRILLING MACHINES EUROPE STYLE JZ5040
Quantity: gearhead drilling machine features a robust and vibration-free construction. The tiltable, rotatable gear head makes these models ideal for general applications.
JZ5040
Drilling capacity max.
32 mm
Drill chuck
3 - 16 mm / B 18
Morse taper
MT 4
Spindle speeds(12) 50 - 2520 rpm
Distance spindle to column
272 mm
Distance spindle to table max.
790 mm
Distance spindle to base
1220 mm
Spindle stroke
130 mm
Column diameter
115 mm
Table size
545 x 470 mm
T-slot size
14 mm
Working surface of base
390 x 330 mm
Motor power output S1 100%
0,85 / 1,1 kW (400 V)
Motor power input S6 40%
1,1 / 1,5 kW (400 V)
Machine dimensions (W x D x H)
660 x 710 x 2050 mm
Weight approx.
360 kg
FEATURES
- Machine base designed to mount oversized workpieces
- 2-speed motor with 12 adjustable speeds
- Serially equipped with keyless drill chuck 3 - 16 mm / B 18
- Large table with T-slots
- Lever allows quick and easy speed change
- Gear head is height adjustable, tilts 180° and rotates 360°
- Polished gear wheels, in oil bath, guarantee smooth running
- Clutch allows change from manual to fine feed
- Right and left turning for thread cutting
Standard accessories:- Keyless drill chuck 3 - 16 mm / B 18
- Drill chuck arbor MT 4 / B 18
- Morse taper drill sleeve MT 4 / 3, MT 3 / 2
- Height adjustable protective cover
- Thread cutting device
