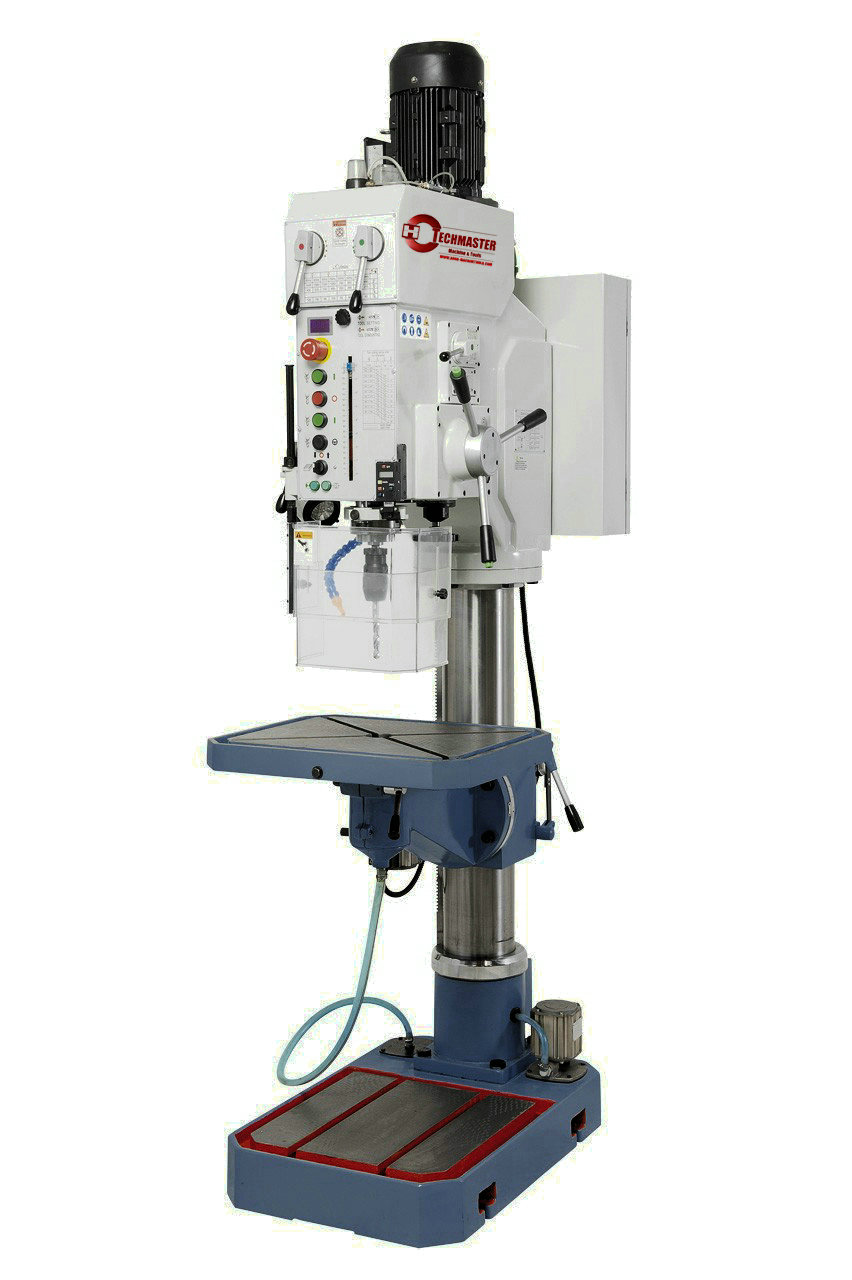

GEARHEAD BENCH AND COLUMN DRILLING MACHINES EUROPE STYLE ZY5040A
Quantity: drilling machine comes with a wide range of standard accessories making it great value for money. The machine is widely used among mechanics and machine construction.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
40 mm
Drilling capacity in cast iron
45 mm
Thread cutting max.
M32
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds/ steps
52 - 1400 rpm / 12
Feed area
0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column
360 mm
Distance spindle to table max.
595 mm
Distance spindle to base
1185 mm
Spindle stroke
200 mm
Column diameter
160 mm
Table size / T-slot size
580 x 460 mm / 14 mm
Motor power
2,2 kW
Machine dimensions (W x D x H)
700 x 950 x 2340 mm
Weight approx.
560 kg
FEATURES- Includes motorized stroke and digital displays for drill depth and speed
- Hand-polished, grey cast -iron table, tiltable from -45° to +45°
- T-slots in base allow mounting of oversized workpieces
- Automatic tool release device allows quick change of drilling tools
- Electromechanic feed, adjustable from 0,1 to 0,4 mm/rev
- Gear shift located on front of machine allows quick speed change
- Adjustable drill depth stop includes scale for easy readout
- Protective cover with limit switch for increased security
- Excellent illumantion at working by LED machine light
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Motoric table stroke
- Coolant pump
- Electromagnetic spindle feed
- Thread cutting device
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2
- Automatic tool release device
- Initial filling with Shell Tellus 46
- LED machine light
- Digital speed indication
- Digital drill depth indication
- Height adjustable protective cover
