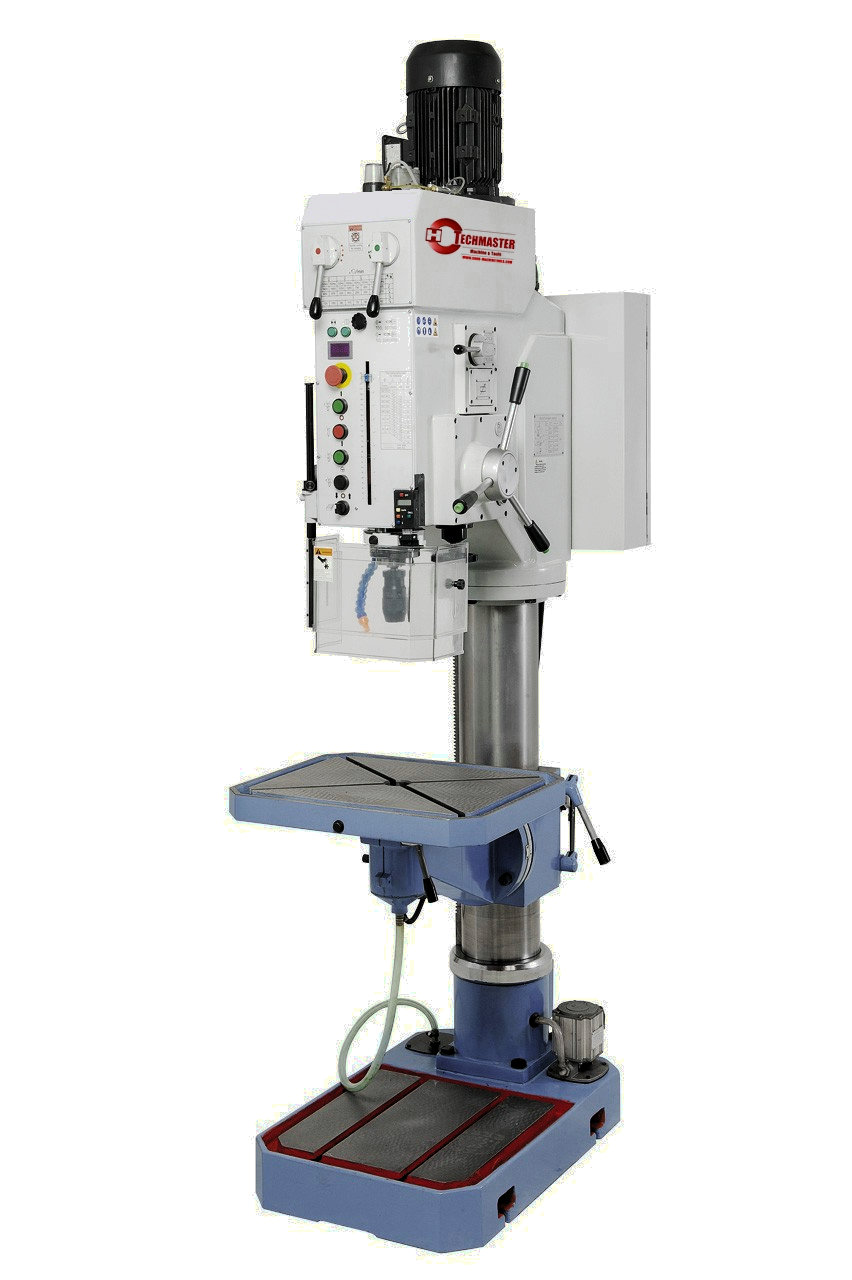

GEARHEAD BENCH AND COLUMN DRILLING MACHINES EUROPE STYLE ZY5050A
Quantity: drilling machine comes with a wide range of standard accessories making it great value for money. The solid construction and the large drilling capacity of 50 mm make this model suitable for industrial and series production.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity in steel
50 mm
Drilling capacity in cast iron
60 mm
Thread cutting max.
M42
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds / Steps
52 - 1400 rpm / 12
Feed range
0,1 / 0,2 / 0,3 / 0,4 mm/rev
Distance spindle to column
360 mm
Distance spindle to table max.
595 mm
Distance spindle to base
1190 mm
Spindle stroke
240 mm
Column diameter
180 mm
Table size / T-slot size
580 x 460 mm / 14 mm
Motor power
3,0 kW
Machine dimensions (W x D x H)
750 x 950 x 2380 mm
Weight approx.
590 kg
FEATURES
- Motorized table stroke reduces non-production times
- Thread cutting device and automatic tool release device as standard
- Solid, vibration-free construction ensures accurate results
- Powerful drive motor designed for longer use
- Digital displays for speed and drill depth
- Solid grey cast iron table with tilt- and rotatable support
- Wide range of standard equipment increases efficiency
- Hardened and polished gear wheels ensure smooth running
- 4 automatic spindle feeds via electromagnetic clutch
Standard accessories:
- Drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Morse taper drill sleeve MT 4 / 3, MT 4 / 2
- Motoric table stroke
- Coolant pump
- Electromagnetic spindle feed
- Thread cutting device
- Automatic tool release device
- LED machine light
- Initial filling with Shell Tellus 46
- Digital readout of speeds
- Digital readout of drill depth
- Height adjustable protective cover
