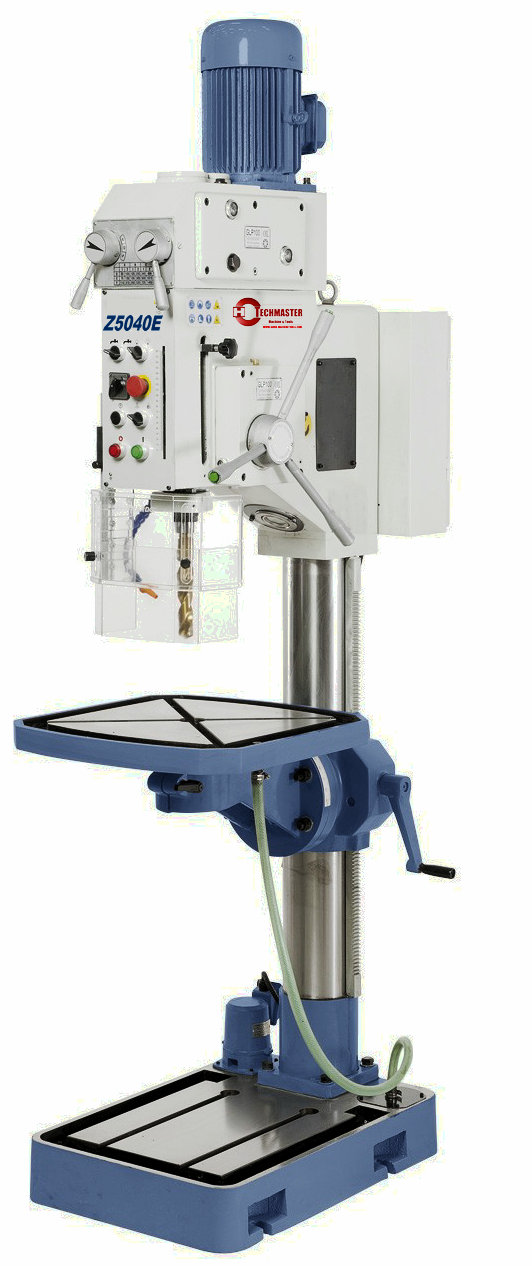

GEARHEAD BENCH AND COLUMN DRILLING MACHINES Z5040E
Quantity: solid gearhead drilling machine is suitable for a large variety of applications, such as tapping, countersinking etc. Most commonly this model is used in repair shops or in production of small parts or low volume productions.
TECHNISCHE SPEZIFIKATIONEN
Drilling capacity max.
40 mm
Thread cutting max
M24
Drill chuck
1 - 13 mm / B 16
Morse taper
MT 4
Spindle speeds
(18) 50 - 1450 rpm
Feed range
0,1 / 0,2 mm/rev.
Distance spindle to column
345 mm
Distance spindle to table max.
695 mm
Distance spindle to base
1200 mm
Spindle stroke
180 mm
Column diameter
140 mm
Table size / T-slot size
555 x 555 mm / 18 mm
Working surface of base
505 x 540 mm
Motor power output S1 100%
0,85 kW / 1,5 kW
Motor power input S6 40%
1,1 kW / 2,2 kW
Machine dimension (W x D x H)
560 x 960 x 2250 mm
Weight approx.
505 kg
FEATURES- Gears operating in oil ensure smooth machine run
- Comes complete with automatic spindle feed, tapping device and work lamp
- Solid work table turns 360° and features diagonal T-slots and coolant groove
- Includes integrated coolant pump in machine base
- Lever on gear box allows for speed settings
- Powerful motor even at continuous operation
- Height adjustable protective cover according to CE standards guarantees high safety
- Adjustable drill depth stop with scale
- 18 gear steps come standard
Standard accessories:
- Keyless drill chuck 1 - 13 mm / B 16
- Drill chuck arbor MT 4 / B 16
- Coolant device
- Electromagnetic spindle feed
- Thread cutting device
- Initial filling with Shell Tellus 46
- Halogen machine light
- Automatic tool release device
- Height adjustable protective cover
