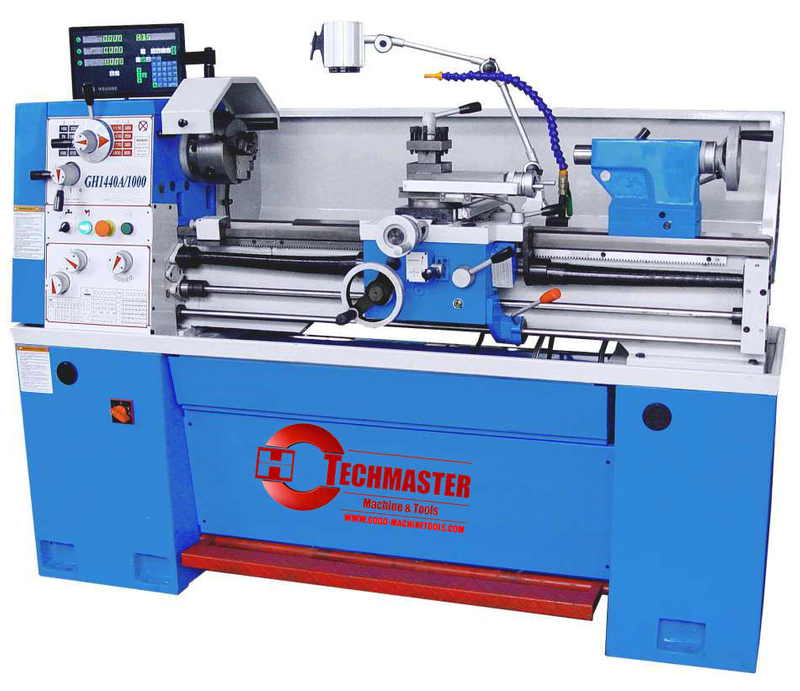

MODEL | GH1440A |
Specifications | |
Distance between centers | 1000 mm |
Swing over bed | 356 mm |
Swing over gap | 506 mm |
Bed width | 206 mm |
Taper of spindle bore | MT5 |
Spindle nose | D1- 4 |
Spindle bore | 38 mm |
Step of spindle speeds | 16 |
Range of spindle speeds | 45~1800 rpm |
Range of cross feeds | 0.015~0.220 mm/r |
Range of longitudinal feeds | 0.043~0.653 mm/r |
Range of inch threads | 4~56 T.P.I |
Range of metric threads | 0.4~7 mm |
Top slide travel | 92 mm |
Cross slide travel | 185 mm |
Carriage travel | 945 mm |
Travel of tailstock quill | 120 mm |
Taper of tailstock quill | MT3 |
Main motor | 1.5/2.2 kw |
Packing size | 1920 x 760 x 1450 mm |
Net weight | 800 kg |
