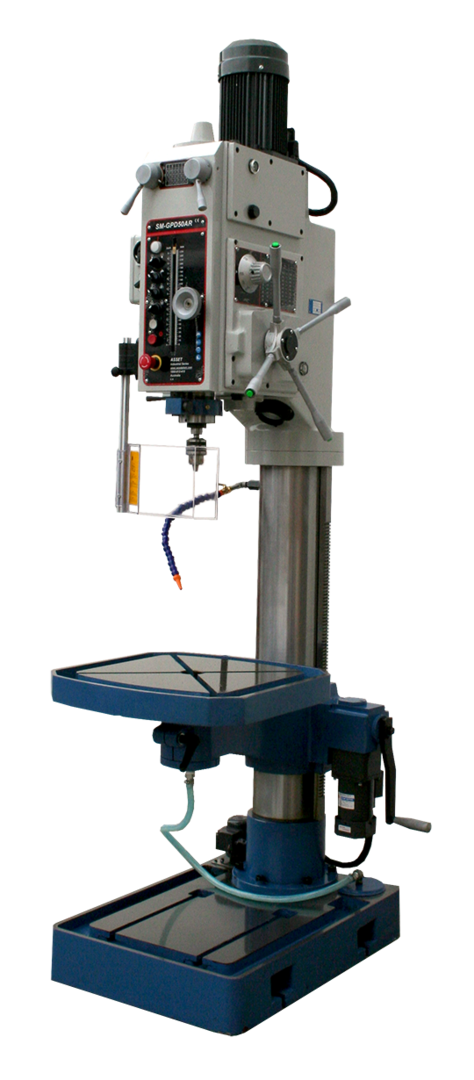

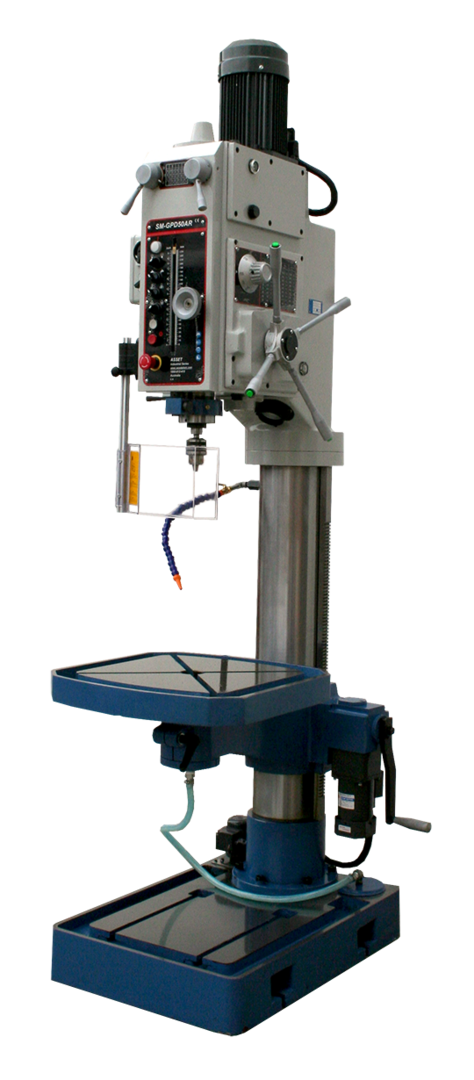

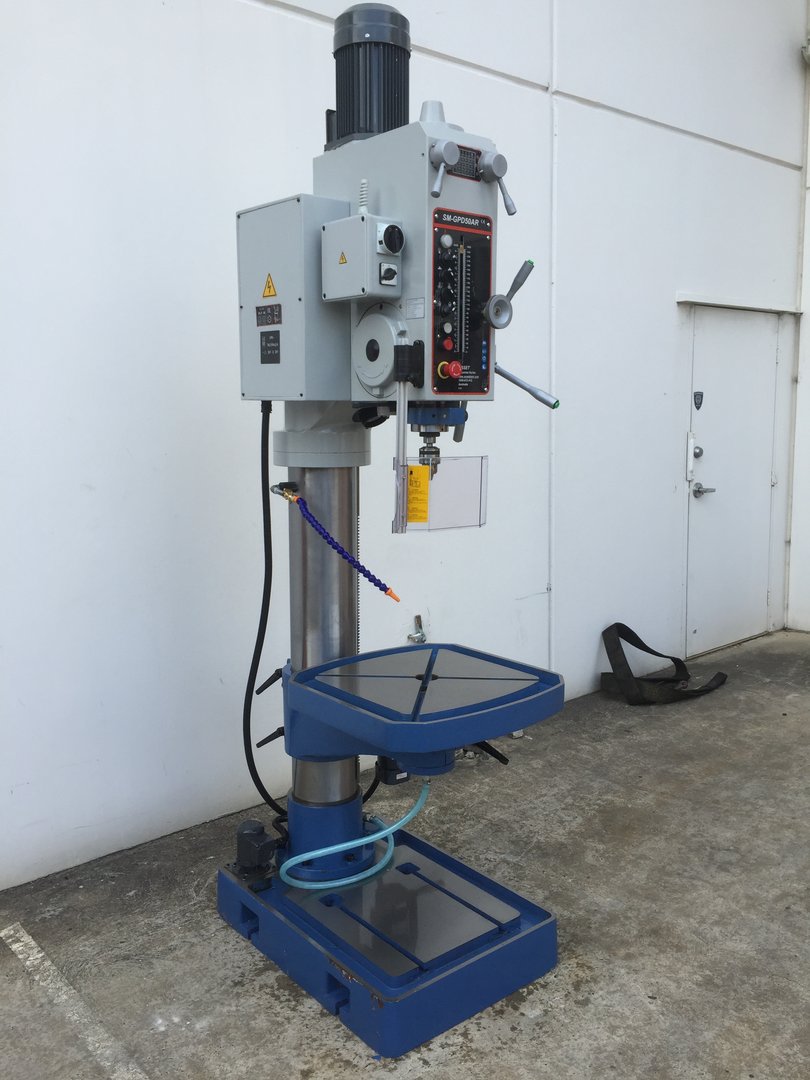

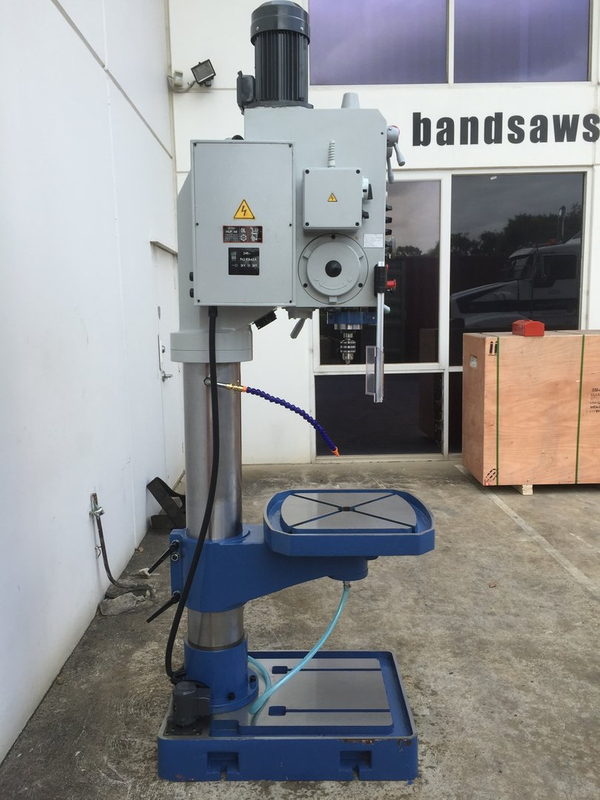

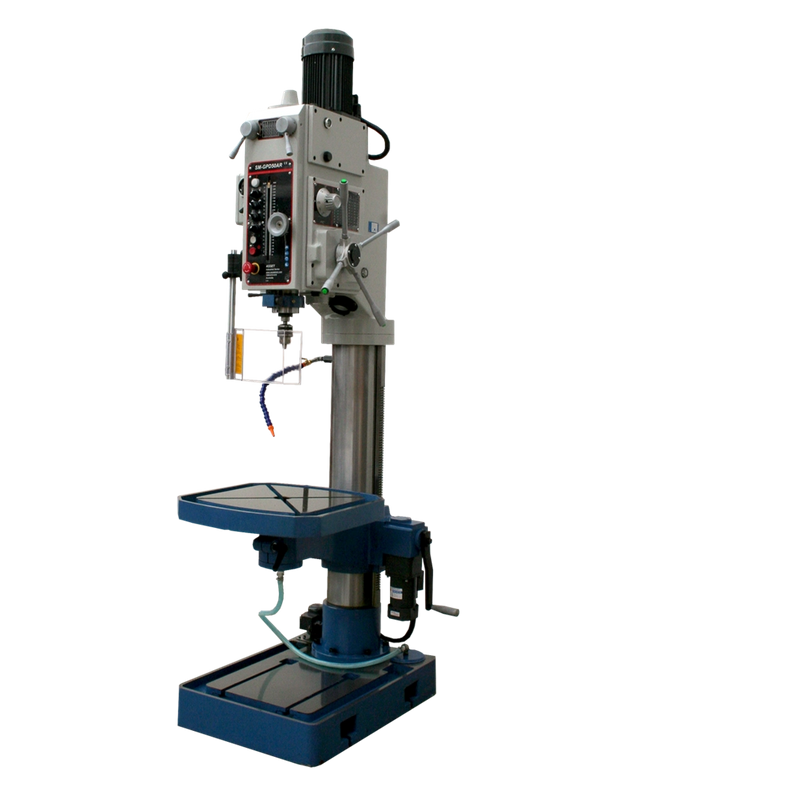

GPD50AR. 415Volt, 50mm Capacity Geared Head Drill with Power Feed, Power Table Up & Down, Coolant
Quantity: -
GPD50A
escription
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expands the capacity of this machine. You can also change speeds quickly and easily.
Heavy duty thick walled column, power table raise & lower, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???
Features
❚ rigid cast iron construction
❚ tapping selector fitted reversing on bottom of stroke.
❚ power raise and lower of table (GPD50A only)
❚ large throat up to 380 mm
❚ halogen work light as standard
❚ tables rotates 180 and swivels 45°
❚ 4 step automatic feed
❚ adjustable depth stop
❚ thick-walled column
❚ side mounted electrical control cabinet for easy access.
❚ extremely easy tool change
❚ coolant system
❚ CE compliant
Technical Data Snap-Shot
❚50mm drilling capacity, M27 tapping capacity
❚560mm x 660mm tee slotted swivel work table
❚600mm x 500mm heavy duty tee work base
❚240mm spindle travel
❚4 morse taper spindle
❚speeds range - 54 ~ 2090 (12)
❚motor capacity - 2.2Kw x 415Volt
❚machine dimensions - 1050mm x 650mm x 2330mm
❚crate shipping dimensions - 2400mm x 1100mm x 700mm High
❚approx weight: 880kgescription
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. These features expands the capacity of this machine. You can also change speeds quickly and easily.
Heavy duty thick walled column, power table raise & lower, power down feed, tapping switch, coolant, digital depth display, halogen work light - What more can you ask for???
Features
❚ rigid cast iron construction
❚ tapping selector fitted reversing on bottom of stroke.
❚ power raise and lower of table (GPD50A only)
❚ large throat up to 380 mm
❚ halogen work light as standard
❚ tables rotates 180 and swivels 45°
❚ 4 step automatic feed
❚ adjustable depth stop
❚ thick-walled column
❚ side mounted electrical control cabinet for easy access.
❚ extremely easy tool change
❚ coolant system
❚ CE compliant
Technical Data Snap-Shot
❚50mm drilling capacity, M27 tapping capacity
❚560mm x 660mm tee slotted swivel work table
❚600mm x 500mm heavy duty tee work base
❚240mm spindle travel
❚4 morse taper spindle
❚speeds range - 54 ~ 2090 (12)
❚motor capacity - 2.2Kw x 415Volt
❚machine dimensions - 1050mm x 650mm x 2330mm
❚crate shipping dimensions - 2400mm x 1100mm x 700mm High
❚approx weight: 880kg
