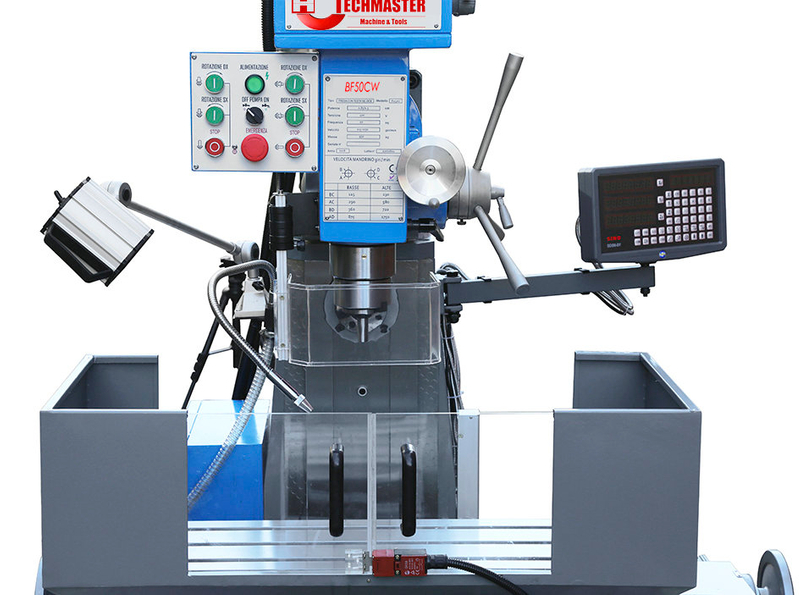

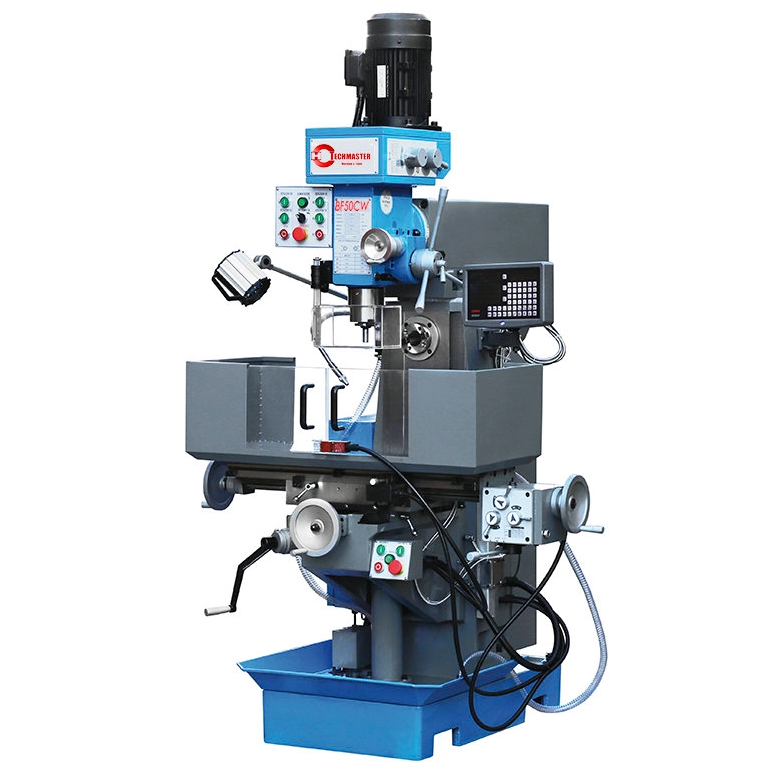

Gear Head with Horizontal Head Milling Machine (BF50CW)
Quantity: -
BF50CW
Product Description
BF 50CW
FEATURES:

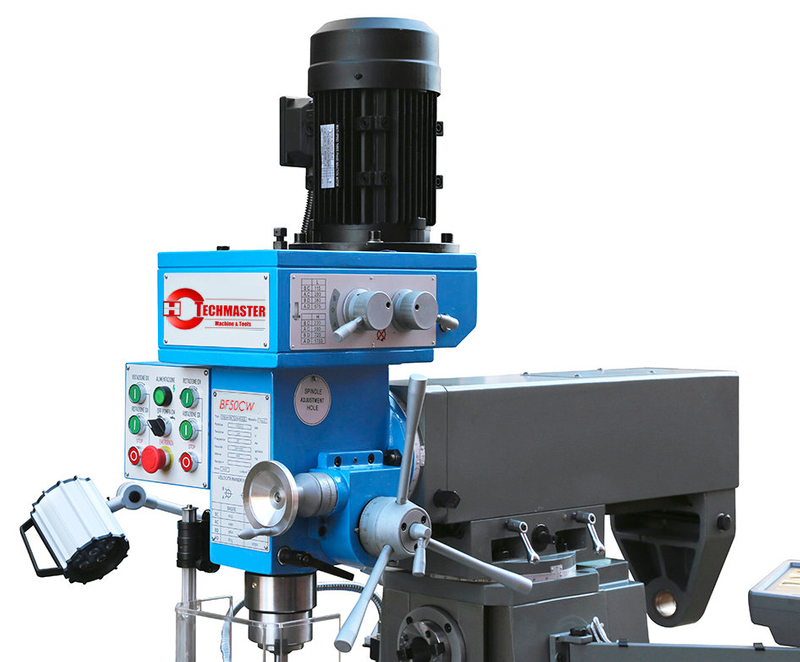

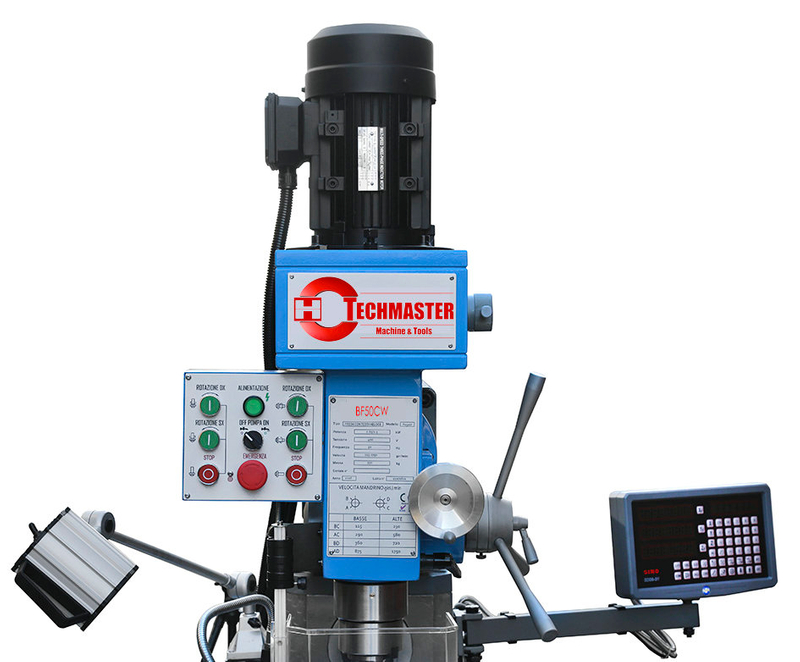

Gear drive spindle stock with connection of dovetail sliding way to square column
Spindle runs in precision gear box with oil, low noise
Spindle head can swivel ±90º left and right
Spindle runs left and right for tapping
Spindle head height adjustable through screw spindle and up or down manually
8 steps of spindle speed change over by double speed motor and gear levers
Clutch for conversion from spindle quick feed to spindle micro feed by hand
Work table power feed of gear box with 8 feed rates
Work table can swivel ±45º left and right
Dovetail guiding ways in X, Y, Z axis of robust cast iron structure
Coolant system, halogen work lamp and cabinet stand
OPTIONAL ACCESSORIES:
Raster DRO System SINO for X, Y, Z Axis
Electro- Power Feed for Y axis variable feed
Electro- Power Feed for X axis variable feed instead of gear box
TECHNICAL DATAModel BF50CW Max.Drilling Capacity in steel 35 mm Max.Drilling Capacity in cast iron 40 mm Max.End Milling Capacity 25 mm Max.Face Milling Capacity 100 mm Tapping Capacity M16 Max. Dist. Spindle to Work Table 420 mm Spindle Taper MT4 / ISO40 Spindle Speed (8)115 - 1750(V) / 60-1350rpm (H) Spindle Travel 120 mm Work Table Size 800 x 240 mm Work Table Travel X 400 mm Work Table Travel Y 230 mm T- Slot Size x pcs 14 mmx 3 Motor Power 0.85/1.5 Kw(V),1.5Kw(H), 50 Hz Net Weight 900 Kg Packing Size 1140x1340x2230mm 20' ft Container 8 pcs
