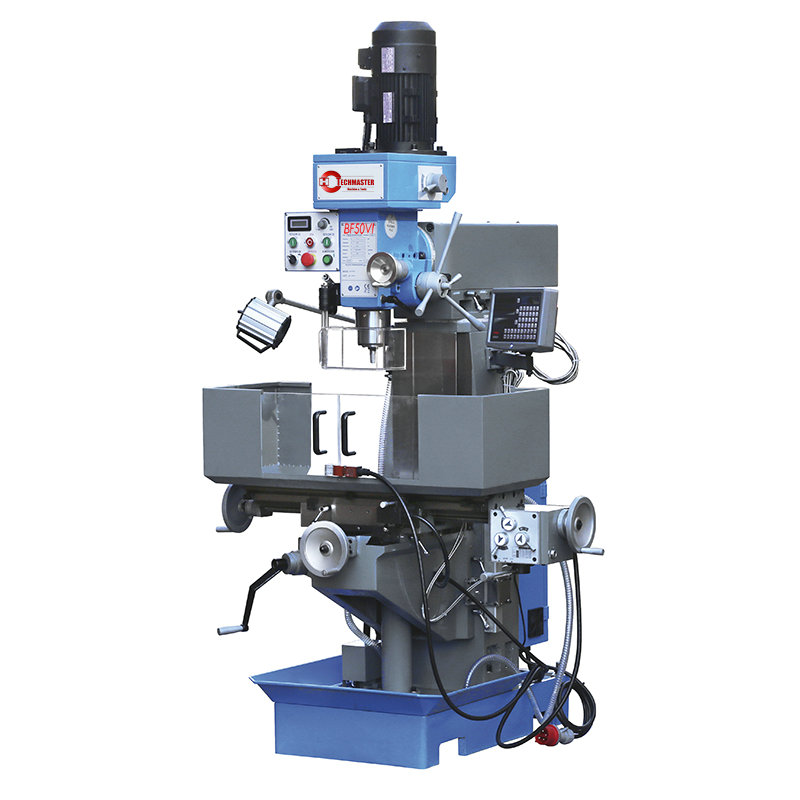

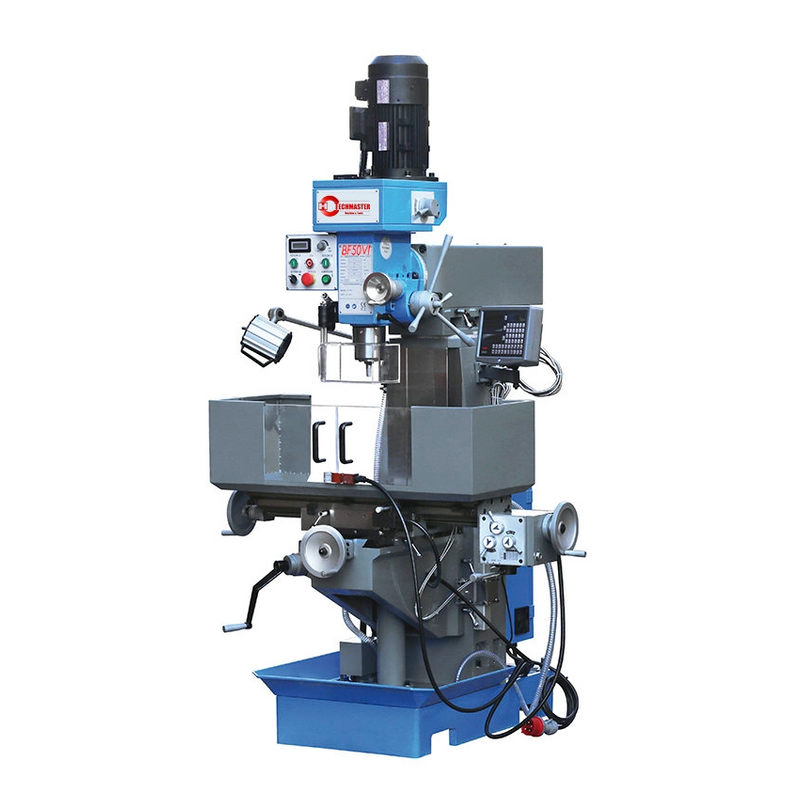

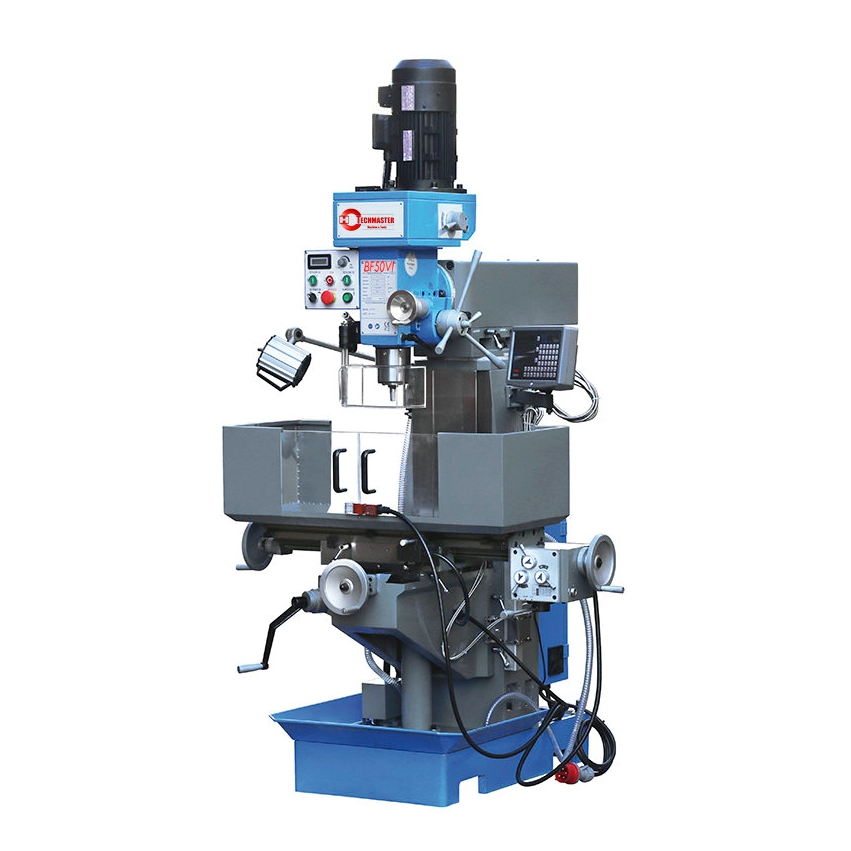

Gear Head with Variable Speed Milling Machine (BF50VI)

Quantity:
  • BF50VI

Product Description

BF 50VI

FEATURES:

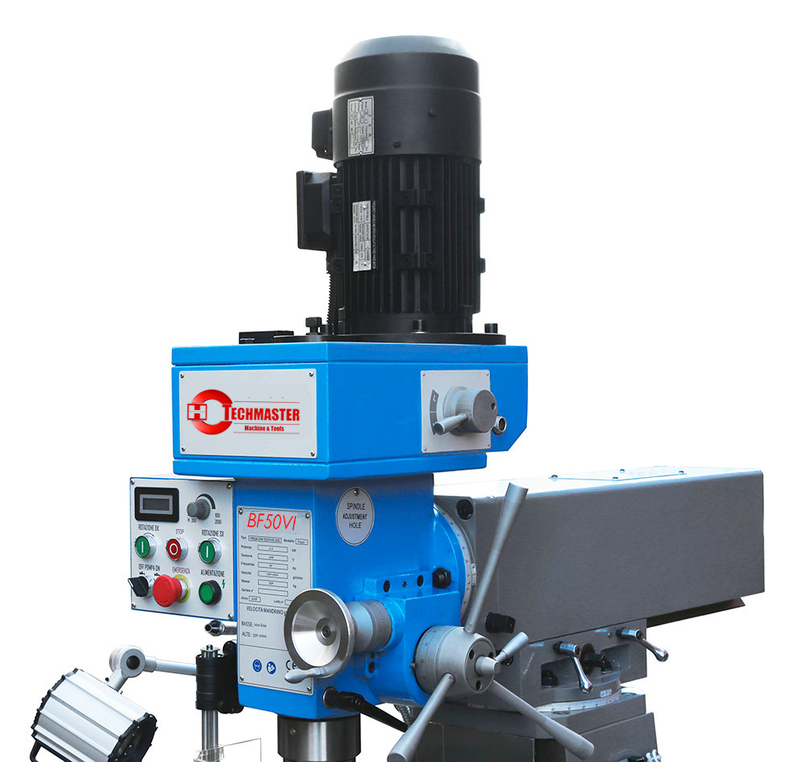

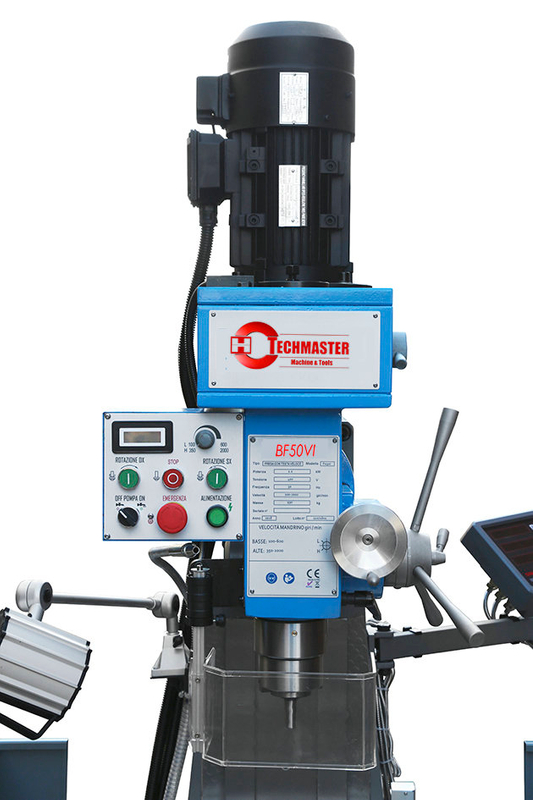

Gear drive spindle stock with connection of dovetail sliding way to square column
Spindle runs in precision gear box with oil, low noise
Spindle head can swivel ±90º left and right
Spindle runs left and right for tapping
Spindle head height adjustable through screw spindle and up or down manually

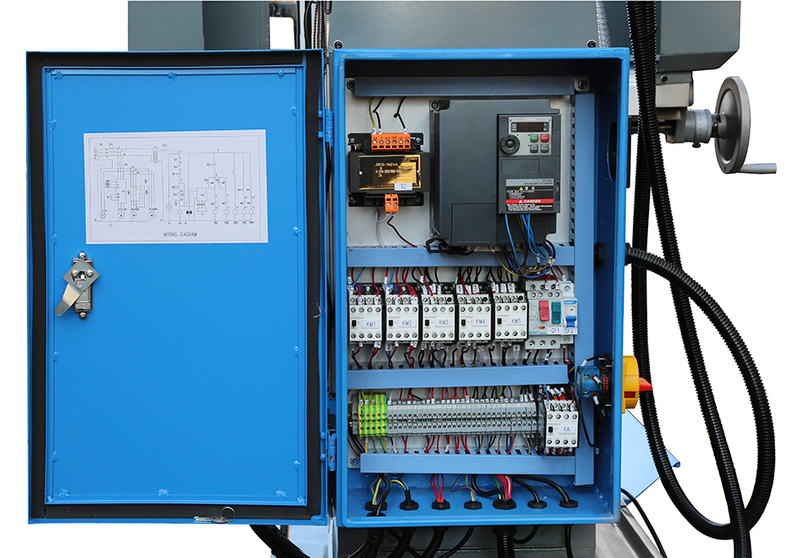

Veriable speed change with Toshiba iverter
Clutch for conversion from spindle quick feed to spindle micro feed by hand
Work table power feed of gear box with 8 feed rates
Work table can swivel ±45º left and right
Dovetail guiding ways in X, Y, Z axis of robust cast iron structure
Coolant system, halogen work lamp and cabinet stand

OPTIONAL ACCESSORIES:

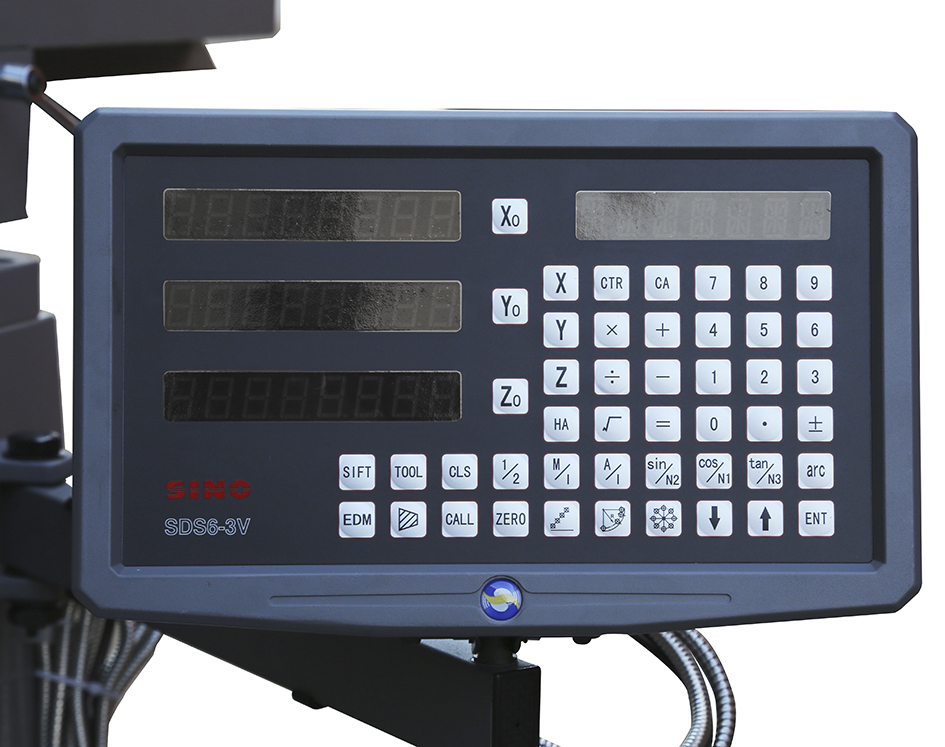

Raster DRO System SINO for X, Y, Z Axis
Electro- Power Feed for Y axis variable feed
Electro- Power Feed for X axis variable feed instead of gear box

:
TECHNICAL DATAl:
Model BF50 VI
Max.Drilling Capacity in steel 35 mm
Max.Drilling Capacity in cast iron 40 mm
Max.End Milling Capacity 25 mm
Max.Face Milling Capacity 100 mm
Tapping Capacity M16
Max. Dist. Spindle to Work Table 420 mm
Spindle Taper MT4 / ISO40
Spindle Speed 220-2400 rpm
Spindle Travel 120 mm
Work Table Size 800 x 240 mm
Work Table Travel X 400 mm
Work Table Travel Y 230 mm
T- Slot Size x pcs 14 mmx 3
Motor Power 2.2 Kw, 50 Hz
Net Weight 880 Kg
Packing Size 1140x1340x2230mm
20' ft Container 8 pcs
