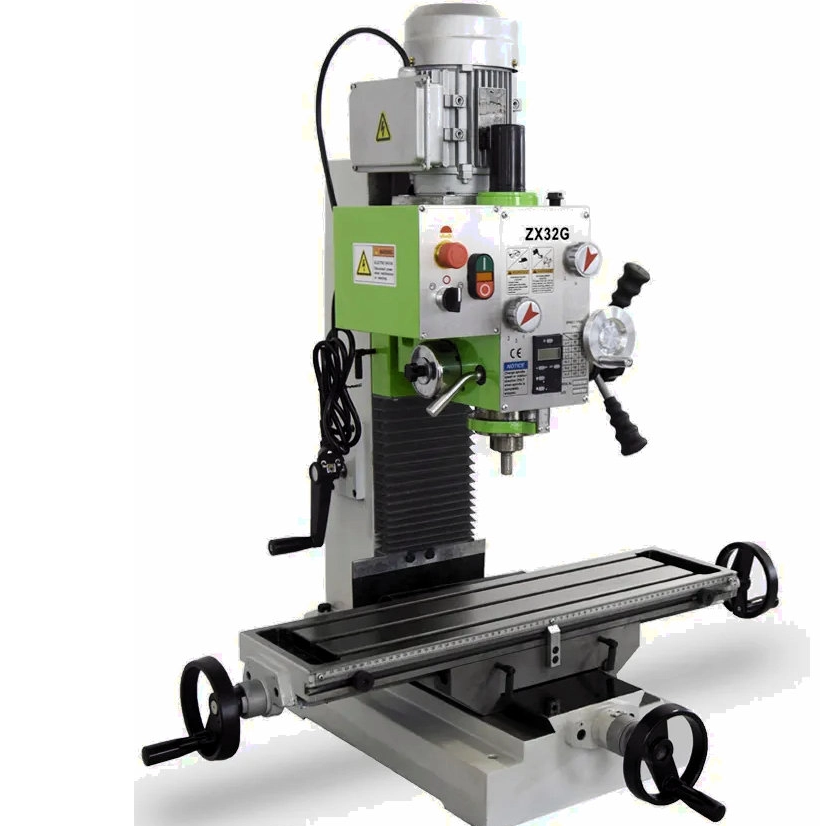

Geared Drilling and Milling Machine ZX32G
Quantity: -
ZX32G
Specification ZX32G ZX32GV Max drilling capacity 32mm 32mm Max tapping capacity 16mm 16mm Max face milling capacity 63mm 63mm Table size 700*180mm 700*180mm Spindle taper MT3/R8 MT3/R8 X-axis travel 410mm 350mm Y-axis travel 205mm 230mm Z-axis travel 310mm 380mm Spindle travel 85mm 75mm T-slot size 12mm 12mm Spindle speed range 95-1420rpm 92-1420rpm Headstock tilt left and right 90 degree 90 degree Column size 150×130×690mm 150×130×690mm Base size 550×340mm 550×340mm Max. distance from spindle center to column 203mm 214mm Max. distance from spindle center to table 336mm 400mm Motor power 750w 750w N.W/G.W 170/200kgs 185/215kgs Standard Accessories:
1) Digital depth ruler
2) Draw bar
3) Drill chuck and arbor
4) Oil gun
5) Toolbox with tools
Specification ZX32G ZX32GV Max drilling capacity 32mm 32mm Max tapping capacity 16mm 16mm Max face milling capacity 63mm 63mm Table size 700*180mm 700*180mm Spindle taper MT3/R8 MT3/R8 X-axis travel 410mm 350mm Y-axis travel 205mm 230mm Z-axis travel 310mm 380mm Spindle travel 85mm 75mm T-slot size 12mm 12mm Spindle speed range 95-1420rpm 92-1420rpm Headstock tilt left and right 90 degree 90 degree Column size 150×130×690mm 150×130×690mm Base size 550×340mm 550×340mm Max. distance from spindle center to column 203mm 214mm Max. distance from spindle center to table 336mm 400mm Motor power 750w 750w N.W/G.W 170/200kgs 185/215kgs Standard Accessories:
1) Digital depth ruler
2) Draw bar
3) Drill chuck and arbor
4) Oil gun
5) Toolbox with tools
