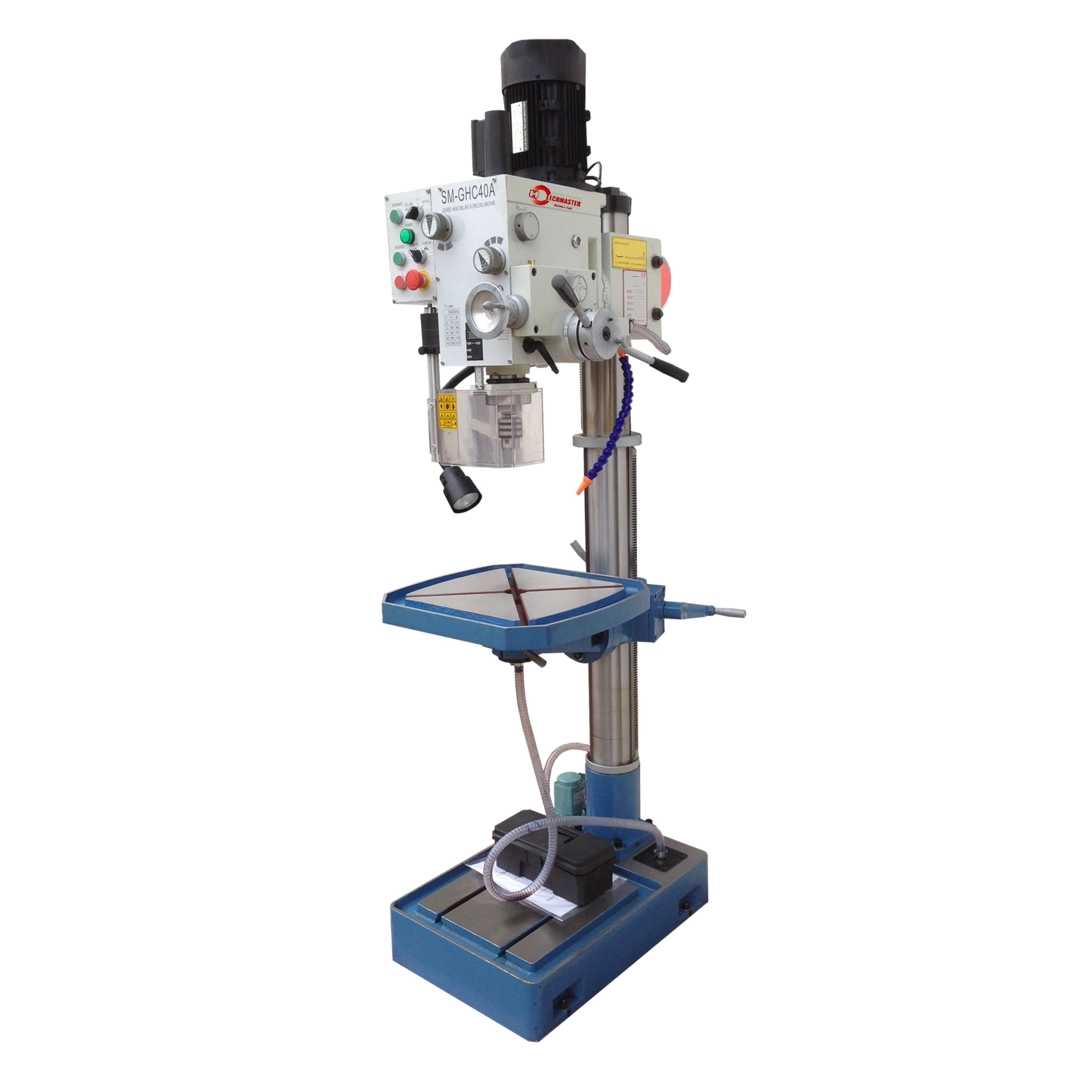

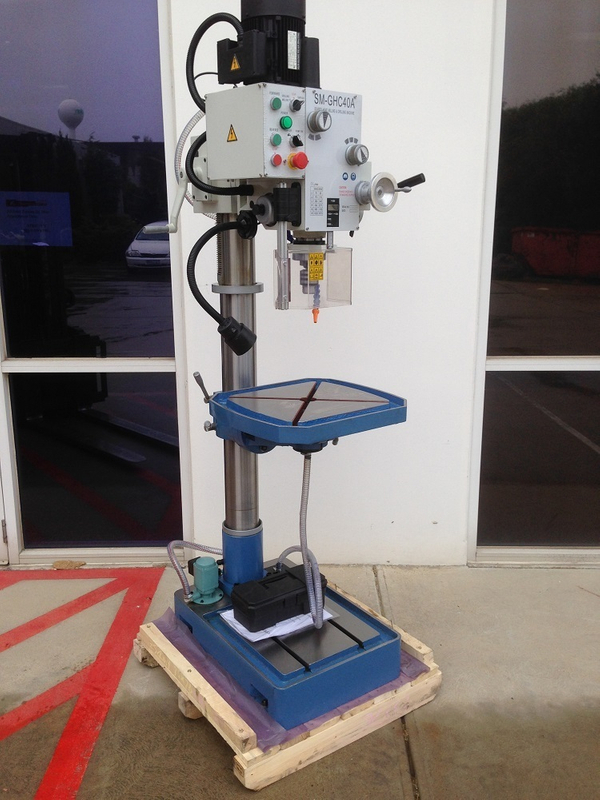

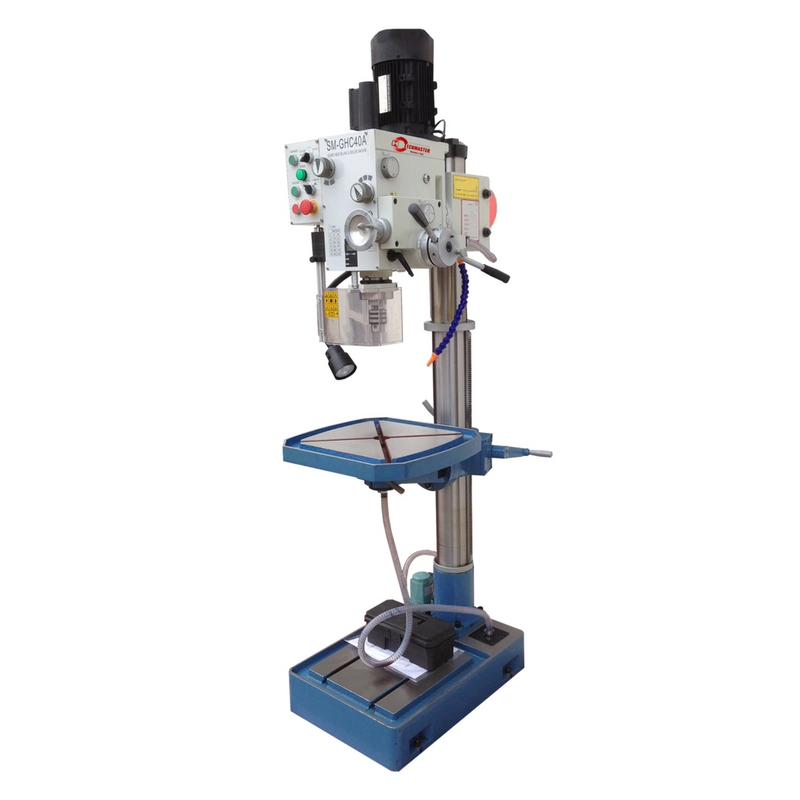

Geared Head Drill with Power Feed & Coolant. Geared Drive. Digital Depth Display

Quantity:
  • GHC40A

Description
This is an excellent buy in a heavy-duty geared head Drill Press. Equipped with a large tee slotted table and power feed, this machine is robust enough for milling, drilling and boring. And the head is adjustable on the column! Head also swivels left and right. Tapping switch for easy operation. This feature expands the capacity of this machine. You can also change speeds quickly and easily. Equipped with a drawbar for threaded end-mill tooling. Wow, on top of this - Coolant.. what a winner.

Features
❚ rigid cast iron construction
❚ power feed & coolant
❚ quick action tapping selector switch feature fitted
❚ LED work light as standard
❚ tables rotates 180°
❚ emergency stop switch
❚ draw bar spindle for milling
❚ large MT4 (morse taper)
❚ forward and reverse operation
❚ digital depth display with zero position
❚ tapping feature fitted to all models
❚ wind up table and head
❚ swivelling table offering flexibility
❚ ideal workshop drill
❚ head swivels 360 degrees
❚ heavy duty tapered roller bearing
spindle offering stability
❚ positive spindle lock fitted
❚ perspex safety guard
❚ gear drive with low noise
❚ 415 Volt operation and also a 240 Volt model.
❚ CE compliant

Technical Data Snap-Shot
❚500mm x 460mm tee slotted swivel work table
❚670mm x 470mm heavy duty tee work base
❚heavy duty 115mm diameter column
❚4 morse taper spindle
❚M16 drawbar
❚speeds range - 75 ~ 1600
❚motor capacity - 1.5Kw x 415Volt
❚shipping dimensions - 740mm x 760mm x 1870mm
❚approx weight: 420kg

Accessories Supplied
❚MT4 - 13mm Draw Bar Keyed Chuck
❚Mt4 ~ Mt3 Sleeve
❚Taper Drifts
❚Metal Toolbox & Tools
