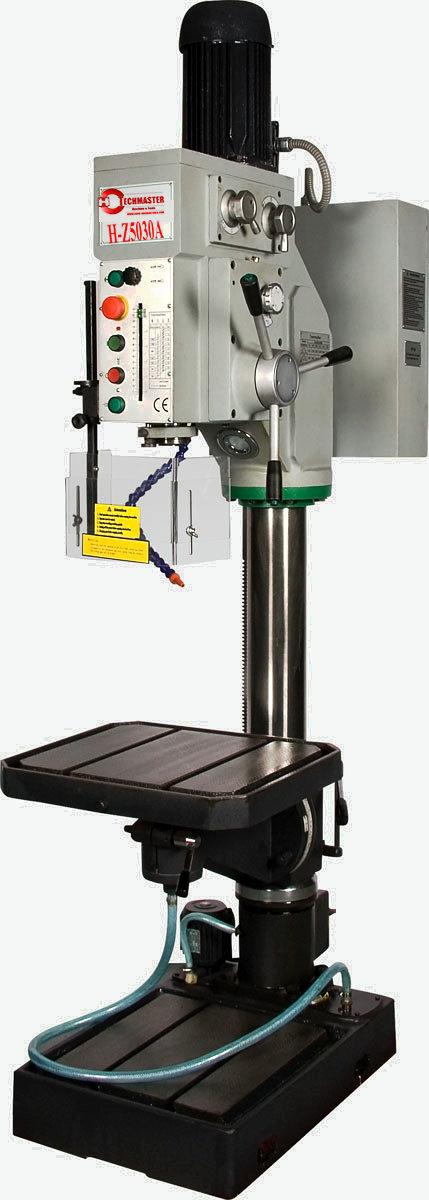

H-Z5030A
Quantity: This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch.
- cooling system
- electromagnetic feed
- 2 speed motor
- spindle turns clockwise and counter clockwise
- rotating and tilting table
- machine worklight
- table clamped with eccentric clamp
- gear wheel driven
-
Motor power 1.0 - 1.5 kW Drilling capacity 30 mm Tapping capacity M20 Drilling depth 135 mm Spindle taper MT3 Number of speeds 12 Spindle speed range 72 - 2600 rpm Feed range 0,1 - 0,2 - 0,3 mm/r Column diameter 120 mm Distance spindle-column 320 mm Table size 370 x 360 lxw Base dimensions l x w 500 x 450 mm Height 2120 mm Packaging dimensions l x w x h 950 x 580 x 2250 mm Net weight 440 kg Voltage 400 V
This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch.
- cooling system
- electromagnetic feed
- 2 speed motor
- spindle turns clockwise and counter clockwise
- rotating and tilting table
- machine worklight
- table clamped with eccentric clamp
- gear wheel driven
-
Motor power 1.0 - 1.5 kW Drilling capacity 30 mm Tapping capacity M20 Drilling depth 135 mm Spindle taper MT3 Number of speeds 12 Spindle speed range 72 - 2600 rpm Feed range 0,1 - 0,2 - 0,3 mm/r Column diameter 120 mm Distance spindle-column 320 mm Table size 370 x 360 lxw Base dimensions l x w 500 x 450 mm Height 2120 mm Packaging dimensions l x w x h 950 x 580 x 2250 mm Net weight 440 kg Voltage 400 V
