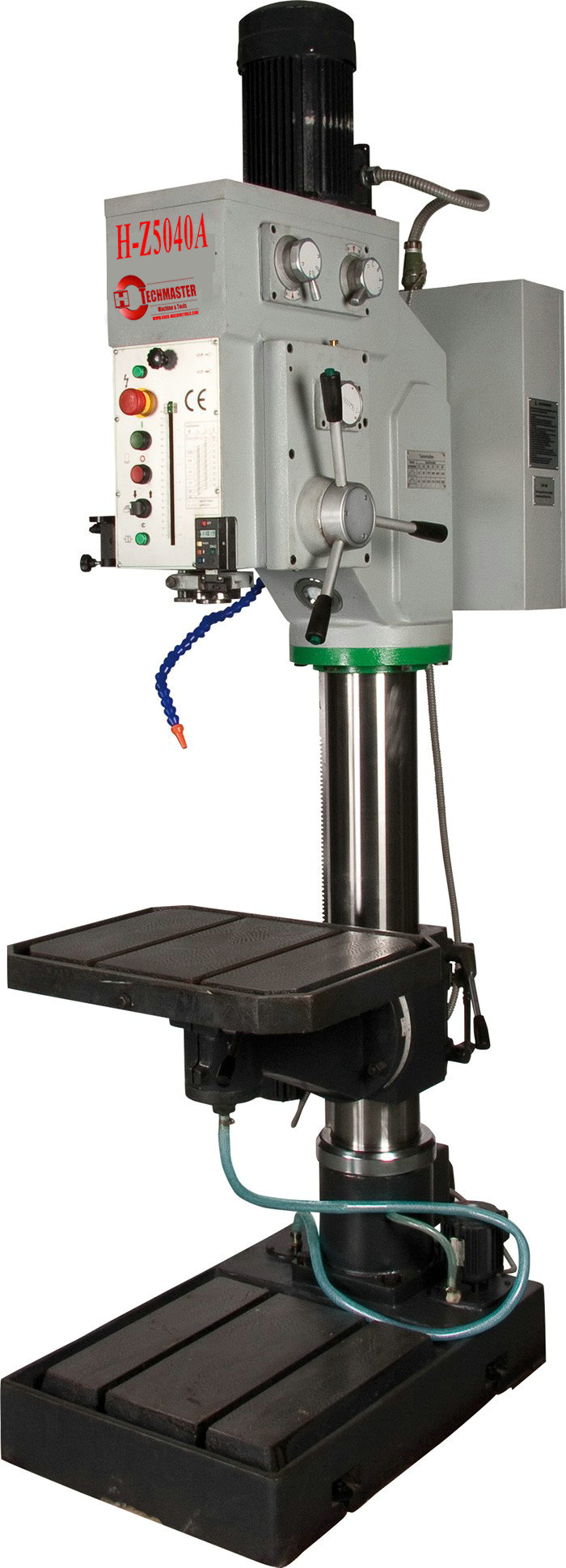

H-Z5040A
Quantity: 'Gear head column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop, and the machine is fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise, with auto feed. The drill chuck cover is equipped with an auto stop switch.
Motor power 2,2 - 2,8 kW Drilling capacity 40 mm Tapping capacity M27 Drilling depth 180 mm Spindle taper MT4 Number of speeds 12 Spindle speed range 42 - 2050 rpm Feed range 0,07 - 0,15 - 0,26 - 0,40 mm/r T-slots 2/14mm Column diameter 160 mm Distance spindle-column 360 mm Max. distance spindle table 600 mm Table size 450 x 440 lxw Base dimensions l x w 510 x 380 mm Height 2330 mm Packaging dimensions l x w x h 1150 x 700 x 2150 mm Net weight 680 kg Voltage 400 V
'Gear head column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop, and the machine is fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise, with auto feed. The drill chuck cover is equipped with an auto stop switch.
Motor power 2,2 - 2,8 kW Drilling capacity 40 mm Tapping capacity M27 Drilling depth 180 mm Spindle taper MT4 Number of speeds 12 Spindle speed range 42 - 2050 rpm Feed range 0,07 - 0,15 - 0,26 - 0,40 mm/r T-slots 2/14mm Column diameter 160 mm Distance spindle-column 360 mm Max. distance spindle table 600 mm Table size 450 x 440 lxw Base dimensions l x w 510 x 380 mm Height 2330 mm Packaging dimensions l x w x h 1150 x 700 x 2150 mm Net weight 680 kg Voltage 400 V
