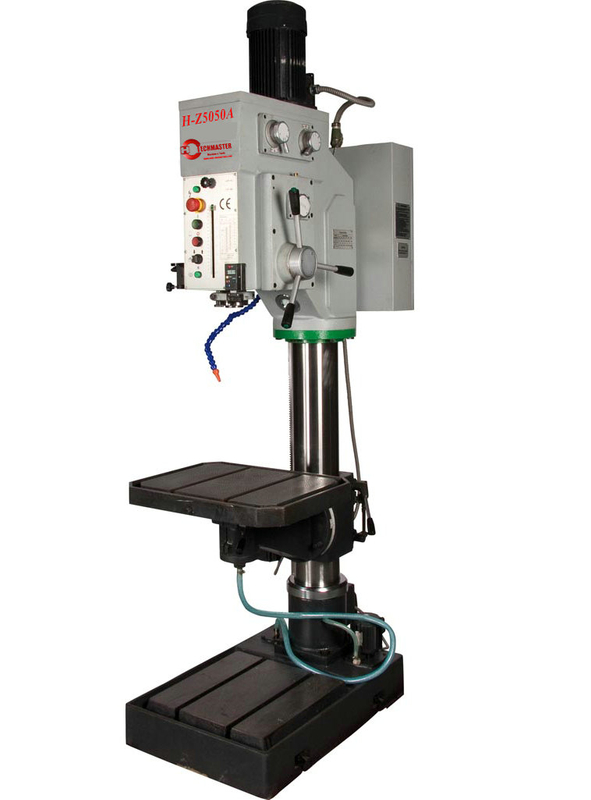

This column drilling machine has hardened and ground gear wheels. The drilling depth can be set using the adjustable depth stop. Fitted with a tool ejector and 2 speed motor. The spindle turns both clockwise and counter clockwise. With autofeed. The drill chuck cover is equipped with an autostop switch.
Motor power 2,2 - 2,8 kW
Drilling capacity 50 mm
Tapping capacity M30
Drilling depth 240 mm
Spindle taper MT4
Number of speeds 12
Spindle speed range 42 - 2050 rpm
Feed range 0,1 - 0,2 - 0,3 - 0,4 mm/r
T-slots 2/14mm
Column diameter 160 mm
Distance spindle-column 360 mm
Max. distance spindle table 600 mm
Table size 450 x 440 lxw
Base dimensions l x w 510 x 380 mm
Height 2450 mm
Packaging dimensions l x w x h 1100 x 670 x 2100 mm
Net weight 690 kg
Voltage 400 V
