H-ZX5040

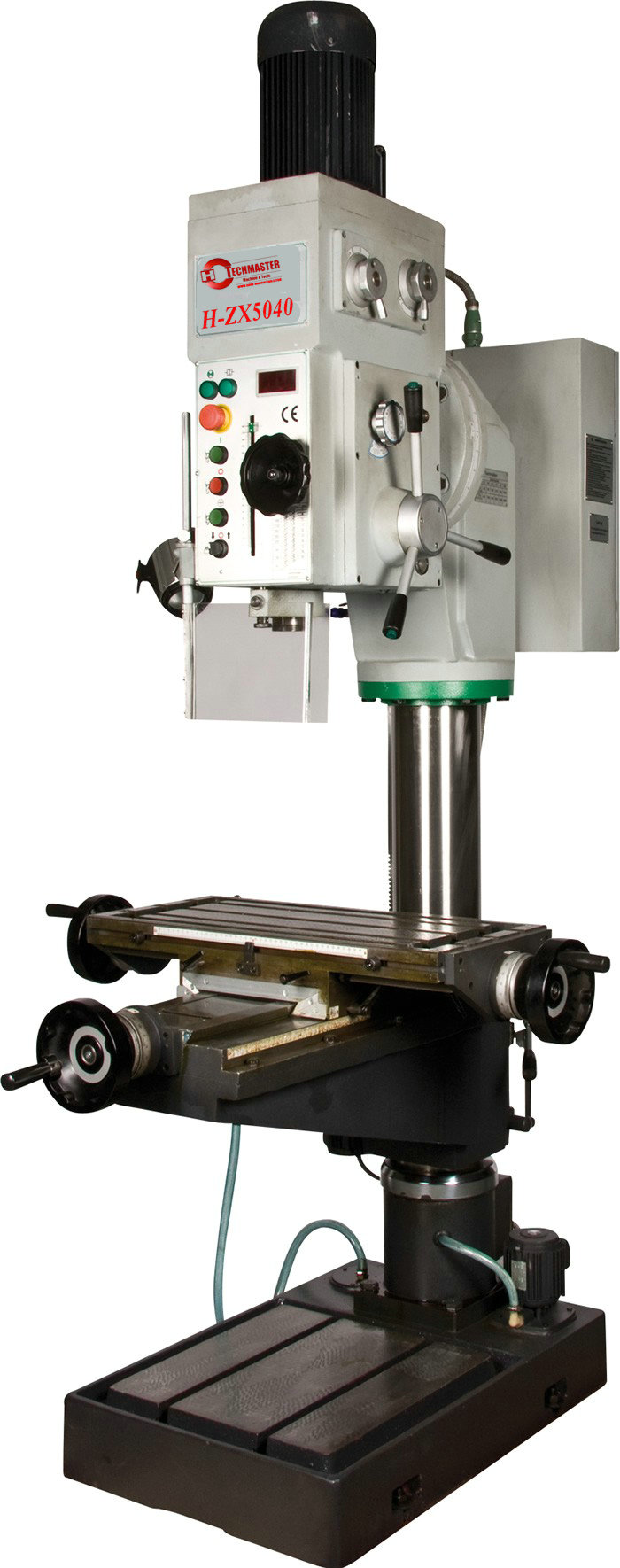

Quantity: Industrial drilling machine with milling option and cross table. The machine is equipped with electromagnetic feed and precision feed. Milling tool optional.
Motor power 2,8 kW Drilling capacity 40 mm Tapping capacity M27 Drilling depth 180 mm Spindle taper MT4 met moer Number of speeds 12 Spindle speed range 42 - 2050 rpm Feed range 0,07 - 0,15 - 0,26 - 0,40 mm/r Number of feeds 4 T-slots 2/14 Column diameter 160 mm Max. throat capacity 360 mm Max. distance spindle table 490 mm Table size 715 x 320 lxw Base dimensions l x w 510 x 380 mm Height 2330 mm Packaging dimensions l x w x h 1150 x 700 x 2150 mm Net weight 750 kg Voltage 400 V
Industrial drilling machine with milling option and cross table. The machine is equipped with electromagnetic feed and precision feed. Milling tool optional.
Motor power 2,8 kW Drilling capacity 40 mm Tapping capacity M27 Drilling depth 180 mm Spindle taper MT4 met moer Number of speeds 12 Spindle speed range 42 - 2050 rpm Feed range 0,07 - 0,15 - 0,26 - 0,40 mm/r Number of feeds 4 T-slots 2/14 Column diameter 160 mm Max. throat capacity 360 mm Max. distance spindle table 490 mm Table size 715 x 320 lxw Base dimensions l x w 510 x 380 mm Height 2330 mm Packaging dimensions l x w x h 1150 x 700 x 2150 mm Net weight 750 kg Voltage 400 V
